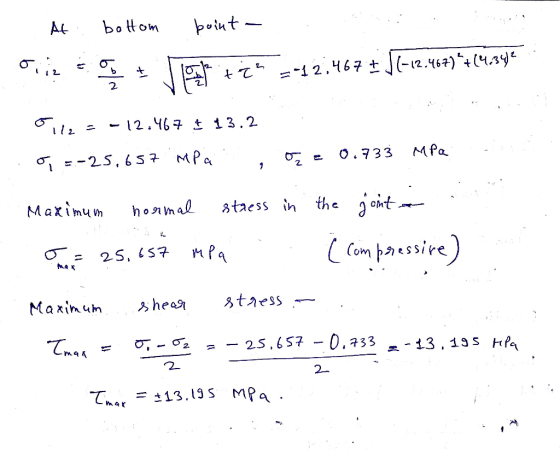

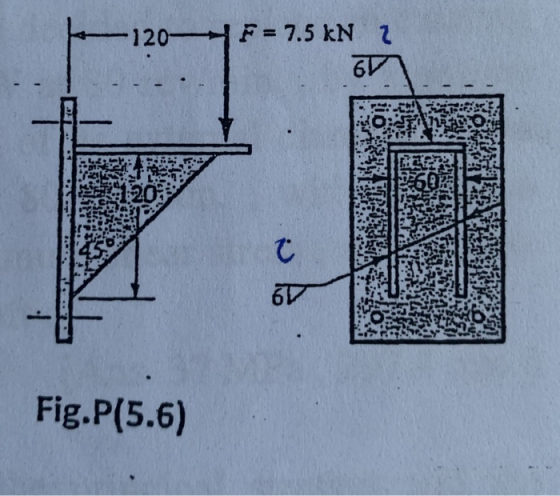

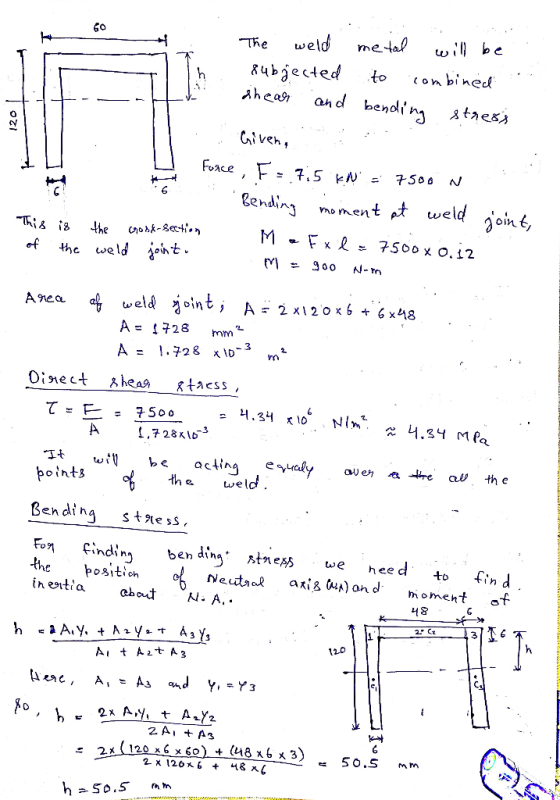

l/ (5.6) A force F=7.5 kN acts on the bracket shown in Fig·P(5.6). Find the maximum combined stress in the weld me...
Force F = 4.0 kN acts at point O, as shown. Force F has direction angles α-61.4°. 115.5°, and γ = 40.00. F 4.0 kN 405 mm 270 mm 540 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. N·m Pa =
Force F 3.4 kN acts at point o, as shown. Force F has direction angles a: 61.40, β-115.5, and r-400 F=3.4 kN 540 mm --..:,' 360 mm 720 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. M 2115 × N·m YA Submit Answer Save Progress Practice Another Version ncial Aid VerifiupdfA
Chapter 2, Problem 2/003 The slope of the 7.5 kN force F is specified as shown in the figure. Express F as a vector in terms of the unit vectors i and j. F 7.5 kN 13 Answer: F = ( Click if you would like to Show Work for this question: j) kN Open Show Work
The steel beam shown below is subjected to P = 1.5 kN as shown.
Find the maximum normal stress due to bending on the beam.
Answer = 27.4 MPa
30 mm 3 mm 30 mm C 50 mm 40 mm 40 mm 50 mm 3 m 3 m
Force F-1.2 kN acts at point O, as shown. Force F has direction angles α-61.4°, β-115.5°, and γ-40.00. F=1.2 kN 585 mm 390 mm 780 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. N·m AM
For the beam shown below, find the maximum shear stress. The
final answer is 4.85 MPa.
2 kN 4 kN 20 mm 250 ImIm ·一250 mm 70 mm 20 mm- 50 mm 800 mm
For the beam and load shown, find the maximum shear stress of
the beam. The final answer is 87 MPa.
200 mnn 0,3 m 75KN 100 KN 75 KN 112 12 nm 15 nim 200 mm 8 n 0,6 m 0,6 m 0,6 m 0,6 m 12 mm
A beam with a square cross-section is in a combined state of loading. There is an axial force N 350 kN acting in the x-direction, a torque T 50 kNm acting about the x-axis, and a bending moment M 40 kNm acting about the z-axis as shown. The side length of the beam is a 15.0 cm. B T a (a) Find the nomal stress due to N and M at points A and B. [10 marks] (b) Find the...
For the beam shown below, find the maximum bending stress and maximum transverse shear stress. That is, carry out load and stress analyses in the following order. Load Analysis Draw the load diagram or free body diagram (FBD) and determine the support reactions. Show your calculations. • Draw the shear force diagram (SFD). Show your calculations. Draw the bending moment diagram (BMD). Show your calculations. Stress Analysis Identify the critical section(s) and determine the maximum normal (bending) stress at the...
A L-Shaped solid bar of 50-mm diameter is subjected to a 13 kN force as shown below. At point H (a)Determine the state of stresses and show the results on a stress-element. (b)Determine the Principal stresses, the principal planes and the maximum shear stress
