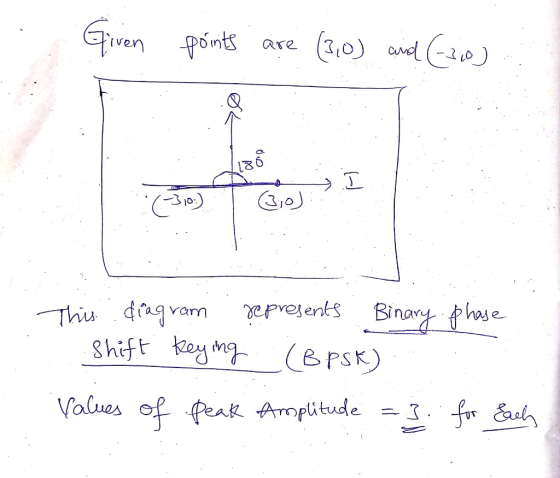

Find the value of the peak amplitude and the type of modulation that this diagram represents?
Homework Answers
Kindly upvote if it's helpful for you .
Add Answer to:
Find the value of the peak amplitude and the type of modulation that this diagram represents? (TCO 2) A constellation d...
5 pts Question 11 (TCO 2) A constellation diagram has two points located at (2,0) and (3,0) on the I(in- phase)-Q(qu...

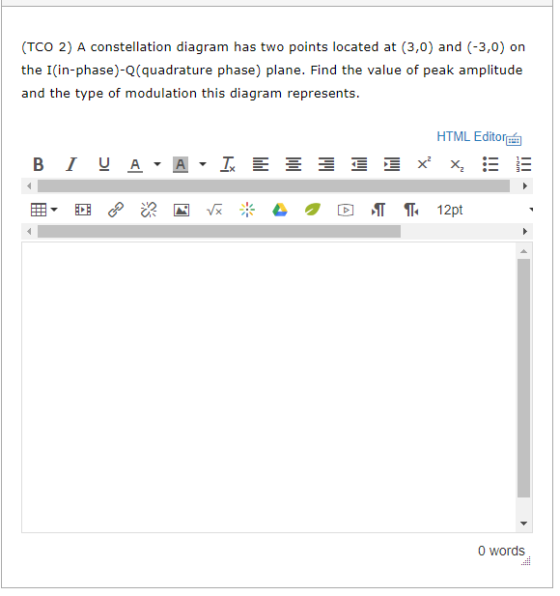

5 pts Question 11 (TCO 2) A constellation diagram has two points located at (2,0) and (3,0) on the I(in- phase)-Q(quadrature phase) plane. Find the value of peak amplitude and the type of modulation this diagram represents. HTML Editor Parag
5 pts Question 11 (TCO 2) A constellation diagram has two points located at (2,0) and (3,0) on the I(in- phase)-Q(quadrature phase) plane. Find the value of peak amplitude and the type of modulation this diagram represents. HTML Editor Parag
Find EyNo and Amplitude A required to give Pb = 10-5 for the following coherent digital modulation schemes if No: 10% and time is 0.5msec 2. a. i. On-Off keying (ASK) ii BPSK, i BFSK and iv. BPSK...
Find EyNo and Amplitude A required to give Pb = 10-5 for the following coherent digital modulation schemes if No: 10% and time is 0.5msec 2. a. i. On-Off keying (ASK) ii BPSK, i BFSK and iv. BPSK with a phase error of 5 deg. (Each carry 4 Marks)
Find EyNo and Amplitude A required to give Pb = 10-5 for the following coherent digital modulation schemes if No: 10% and time is 0.5msec 2. a. i. On-Off keying (ASK)...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is represented below The x-axis has graduations in 10 seconds and y-axis has graduations in volts. 1.1 From this time display, find the values of Ach and μ. Give the name of these parameters. Comment on the waveform of the message signal, find its frequency f 1.2 Draw the amplitude spectrum IS(DI with a bilateral representation. Put graduations on the axes (in hertz and volt)....
please type the answer....No Hand writting please Two types of digital-to-analog modulation techniques are Amplitude Shift...
please
type the answer....No Hand writting please
Two types of digital-to-analog modulation techniques are Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK). In ASK, two different amplitudes, and only two, represent the digital information. In FSK, only two different frequencies are used to represent the digital data. The Goal The goal of the design project is to design a Commsim circuit that will generate the following analog carrier based on a digital input stream: Output 2 0 -1 -2...
2) A wireless internet access card requires for reliable operation the BER not exceeding 10-3. An...
2) A wireless internet access card requires for reliable operation the BER not exceeding 10-3. An engineer designing this card wishes to maximize the data rate over the SNR range of 0 to 20 dB. Select a proper modulation format for cach SNR at this range. Hint: M-ary constellation, such as M-QAM is a good candidate, with M-2 1-2,3,4... , for which you have to find a threshold SNR Yh(M) such that Pe(SNR,M)s10-3 if SNR 2Yth(M) , where Pe (SNR,M)...
2. a. Find Eb/No and Amplitude A required to give Pb 10-5 for the following coherent digital modu...
2. a. Find Eb/No and Amplitude A required to give Pb 10-5 for the following coherent digital modulation schemes if No-10-5 and time is 0.5msec i. On-Off keying (ASK), ii. BPSK, iii. BFSK and v. BPSK with a phase error of 5 deg. Consider an audio signal with spectral components limited to the frequency band 300 to 3300 Hz. Assume that the sampling rate of 8000 samples/s will be used to generate a PCM signal. The ratio of peak signal...
and 41.3 2. (1) For K-ray diffraction spectra of silicon 20 value of main two peaks was 0 28.45 lwith CuKa 1 source (1.54056 A). Lattice constant is 5.431 A for silicon Find the plane each peak...
and 41.3 2. (1) For K-ray diffraction spectra of silicon 20 value of main two peaks was 0 28.45 lwith CuKa 1 source (1.54056 A). Lattice constant is 5.431 A for silicon Find the plane each peak indicatio. interplanar spacing and the number of atom/ cm2 (2) Visualise the plane at 28.46° above and draw 2) reciprocal lattice, of the plane with (31) plane. Then define a Brillouin zone
and 41.3 2. (1) For K-ray diffraction spectra of silicon 20...
1. (1 point) Find two vectors vi and v2 whose sum is (-3,0), where Vi is parallel to(-2,-4) while v2 is perpendicular to-2,-4) and Answer(s) submitted: (incorrect) 2. (1 point) Find the angle θ betwe...
1. (1 point) Find two vectors vi and v2 whose sum is (-3,0), where Vi is parallel to(-2,-4) while v2 is perpendicular to-2,-4) and Answer(s) submitted: (incorrect) 2. (1 point) Find the angle θ between the vectors a- 10i -j- 5k and b 2i+j- 21k Answer (in radians): θ Answer(s) submitted: (incorrect) 3. (1 point) Find a vector a that has the same direction as -6,5,6) but has length 3. Answer: a Answer(s) submitted: (incorrect) 4. (1 point) Suppose we...
please show solution to 4.7 Calculate the peak value of the voltage across the inductor in...
please show solution to 4.7
Calculate the peak value of the voltage across the inductor in figure 4.7(a), assuming Vo= 10 V, a 2t x 103 s, R= 1 2, L 25 mH, and C 1 uF. 4.6 Calculate the phase of the voltage across the inductor relative to the source in figure 4.7(a) for the values given in problem 4.6 4.7 90 Sinusoldal Circuits circuit-reducti to linear sinusoidal theorems for dc circuits can be applied cuits if the impedances...
This is taken from Section 4.6, "Amplitude Modulation and the Continuous-Time Fourier Transform," in the course...
This is taken from Section 4.6, "Amplitude Modulation and the
Continuous-Time Fourier Transform," in the course text Computer
Explorations in signals and systems by Buck, Daniel, Singer, 2nd
Edition. I need the answers for the basic and intermediate
questions.
4.6 Amplitude Modulation and the Continuous-Time Fouriei Transform This exercise will explore amplitude modulation of Morse code messages. A simple ampli tude modulation system can be described by x(t) = m(t) cos(Crfot), (4.13) where m(t) is called the message waveform and...
5 pts Question 11 (TCO 2) A constellation diagram has two points located at (2,0) and (3,0) on the I(in- phase)-Q(quadrature phase) plane. Find the value of peak amplitude and the type of modulation this diagram represents. HTML Editor Parag
5 pts Question 11 (TCO 2) A constellation diagram has two points located at (2,0) and (3,0) on the I(in- phase)-Q(quadrature phase) plane. Find the value of peak amplitude and the type of modulation this diagram represents. HTML Editor Parag
Find EyNo and Amplitude A required to give Pb = 10-5 for the following coherent digital modulation schemes if No: 10% and time is 0.5msec 2. a. i. On-Off keying (ASK) ii BPSK, i BFSK and iv. BPSK with a phase error of 5 deg. (Each carry 4 Marks)
Find EyNo and Amplitude A required to give Pb = 10-5 for the following coherent digital modulation schemes if No: 10% and time is 0.5msec 2. a. i. On-Off keying (ASK)...
AMPLITUDE MODULATION 1. Study in time and frequency domains of AM signals This AM signal is represented below The x-axis has graduations in 10 seconds and y-axis has graduations in volts. 1.1 From this time display, find the values of Ach and μ. Give the name of these parameters. Comment on the waveform of the message signal, find its frequency f 1.2 Draw the amplitude spectrum IS(DI with a bilateral representation. Put graduations on the axes (in hertz and volt)....
please
type the answer....No Hand writting please
Two types of digital-to-analog modulation techniques are Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK). In ASK, two different amplitudes, and only two, represent the digital information. In FSK, only two different frequencies are used to represent the digital data. The Goal The goal of the design project is to design a Commsim circuit that will generate the following analog carrier based on a digital input stream: Output 2 0 -1 -2...
2) A wireless internet access card requires for reliable operation the BER not exceeding 10-3. An engineer designing this card wishes to maximize the data rate over the SNR range of 0 to 20 dB. Select a proper modulation format for cach SNR at this range. Hint: M-ary constellation, such as M-QAM is a good candidate, with M-2 1-2,3,4... , for which you have to find a threshold SNR Yh(M) such that Pe(SNR,M)s10-3 if SNR 2Yth(M) , where Pe (SNR,M)...
2. a. Find Eb/No and Amplitude A required to give Pb 10-5 for the following coherent digital modulation schemes if No-10-5 and time is 0.5msec i. On-Off keying (ASK), ii. BPSK, iii. BFSK and v. BPSK with a phase error of 5 deg. Consider an audio signal with spectral components limited to the frequency band 300 to 3300 Hz. Assume that the sampling rate of 8000 samples/s will be used to generate a PCM signal. The ratio of peak signal...
and 41.3 2. (1) For K-ray diffraction spectra of silicon 20 value of main two peaks was 0 28.45 lwith CuKa 1 source (1.54056 A). Lattice constant is 5.431 A for silicon Find the plane each peak indicatio. interplanar spacing and the number of atom/ cm2 (2) Visualise the plane at 28.46° above and draw 2) reciprocal lattice, of the plane with (31) plane. Then define a Brillouin zone
and 41.3 2. (1) For K-ray diffraction spectra of silicon 20...
1. (1 point) Find two vectors vi and v2 whose sum is (-3,0), where Vi is parallel to(-2,-4) while v2 is perpendicular to-2,-4) and Answer(s) submitted: (incorrect) 2. (1 point) Find the angle θ between the vectors a- 10i -j- 5k and b 2i+j- 21k Answer (in radians): θ Answer(s) submitted: (incorrect) 3. (1 point) Find a vector a that has the same direction as -6,5,6) but has length 3. Answer: a Answer(s) submitted: (incorrect) 4. (1 point) Suppose we...
please show solution to 4.7
Calculate the peak value of the voltage across the inductor in figure 4.7(a), assuming Vo= 10 V, a 2t x 103 s, R= 1 2, L 25 mH, and C 1 uF. 4.6 Calculate the phase of the voltage across the inductor relative to the source in figure 4.7(a) for the values given in problem 4.6 4.7 90 Sinusoldal Circuits circuit-reducti to linear sinusoidal theorems for dc circuits can be applied cuits if the impedances...
This is taken from Section 4.6, "Amplitude Modulation and the
Continuous-Time Fourier Transform," in the course text Computer
Explorations in signals and systems by Buck, Daniel, Singer, 2nd
Edition. I need the answers for the basic and intermediate
questions.
4.6 Amplitude Modulation and the Continuous-Time Fouriei Transform This exercise will explore amplitude modulation of Morse code messages. A simple ampli tude modulation system can be described by x(t) = m(t) cos(Crfot), (4.13) where m(t) is called the message waveform and...
