21-A voltage multiplier has six stages with capacitances, all equal to transformer secondary voltage is 110 kV at a...

Question

Question

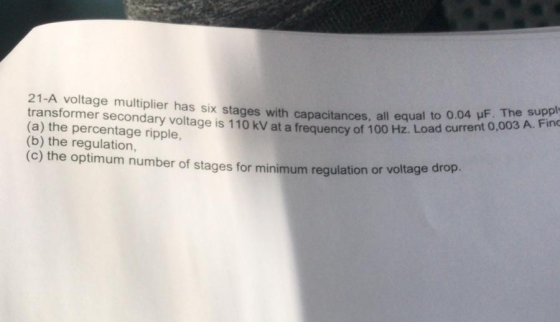

21-A voltage multiplier has six stages with capacitances, all equal to transformer secondary voltage is 110 kV at a frequency

engineering Electrical-Engineering

Answer 1

Answer #1

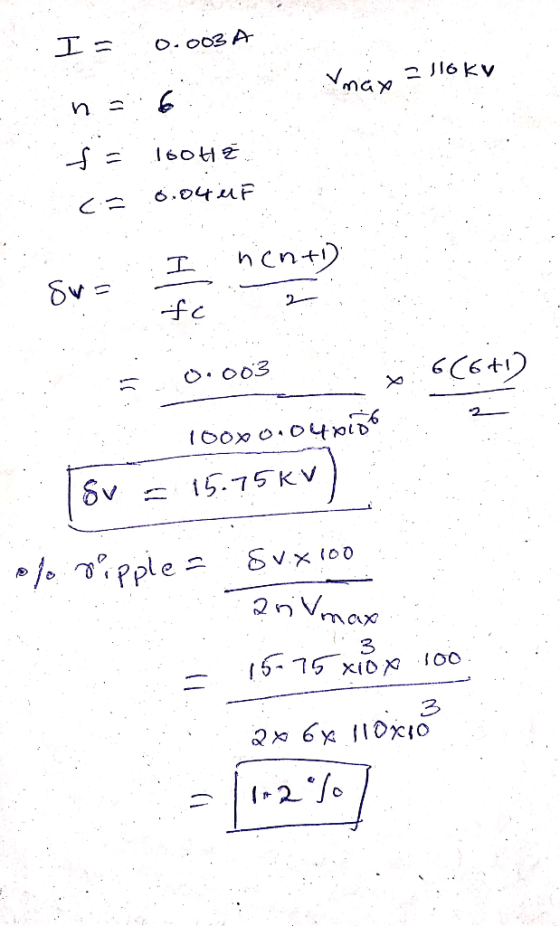

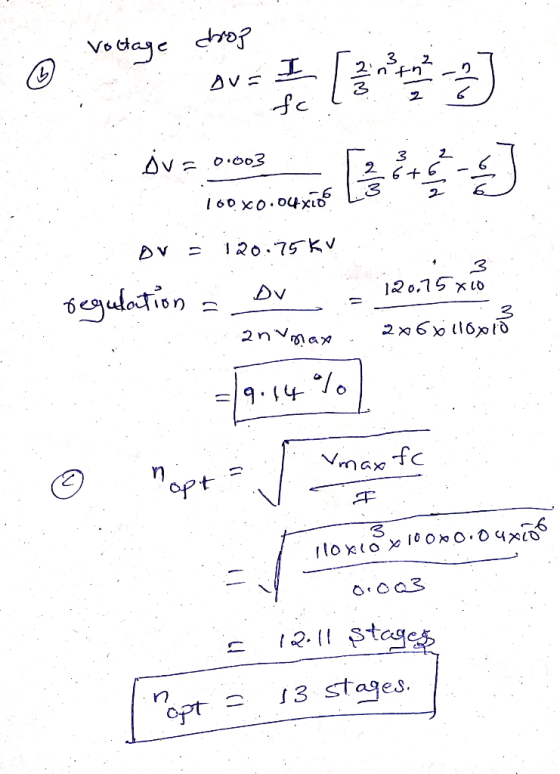

o.oo3 A 工= 3 3 2. 2 3 12 steg opt13 stages.

Answer 2

Similar Homework Help Questions

An eight stage Cockraft-Walton circuit has all capacitors of 0,08uF. The Secondary voltage of the supply...

An eight stage Cockraft-Walton circuit has all capacitors of 0,08uF. The Secondary voltage of the supply transformer is 33kV at a frequency if 100Hz. If the load current is 1mA, determine: a) The percentage Voltage regulation. b) The percentage ripple. c) The optimum number of stages for the maximum output voltage. d) The maximum output voltage. Note: I have seen some of the other examples calculated use the secondary voltage as the Vmax and they do not multiply with a...
