Homework Answers
Add Answer to:

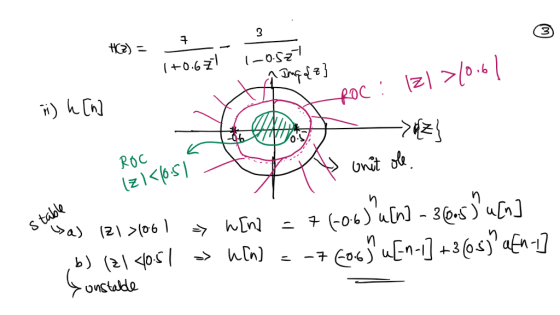

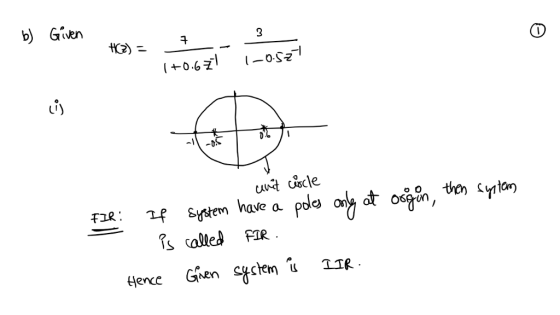

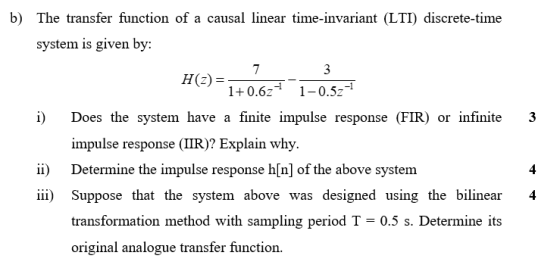

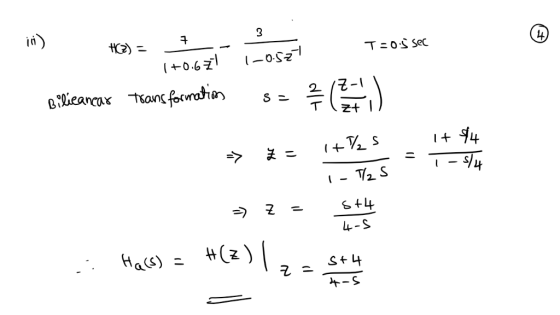

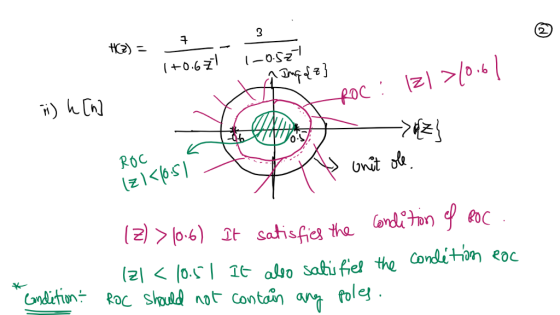

b) The transfer function of a causal linear time-invariant (LTI) discrete-time system is given by: 1+0.6z1-0.5z1 i Does...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n...
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output...
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output yn described by y[n] = x[n] – rn - 2 for n 20 . Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? • What are the initial conditions and their values for this causal and linear time-invariant system? Why? • Draw the block diagram of the filter relating input x[n) and output y[n] • Derive a formula for...
Problem 1 (Marks: 2+1.5+1.5+4) A linear time-invariant system has following impulse response -(よ 0otherwise 1. Determine...
Problem 1 (Marks: 2+1.5+1.5+4) A linear time-invariant system has following impulse response -(よ 0otherwise 1. Determine if the system is stable or not. (Marks: 2) 2. Determine if the system is causal or non-causal. (Marks: 2) 3. Determine if the system is finite impulse response (FIR) or infinite impulse response (IIR). (Marks: 2) 4. If the system has input 2(n) = δ(n)-6(n-1) + δ(n-2), determine output y(n) = h(n)*2(n) for n=-1, 0, 1, 2, 3, 4, 5, 6, (Marks: 4)
a) The transfer function of an ideal low-pass filter is and its impulse response is where...
a) The transfer function of an ideal low-pass filter is and its impulse response is where oc is the cut-off frequency i) Is hLP[n] a finite impulse response (FIR) filter or an infinite impulse response filter (IIR)? Explain your answer ii Is hLP[n] a causal or a non-causal filter? Explain your answer iii) If ae-0. IT, plot the magnitude responses for the following impulse responses b) i) Let the five impulse response samples of a causal FIR filter be given...
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln...
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the impulse response of the system. Is this system stable? c) Find the difference equation representation of this system.
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the...
7. A causal LTI system has a transfer function given by H (z) = -1 (1...
7. A causal LTI system has a transfer function given by H (z) = -1 (1 4 The input to the system is x[n] = (0.5)"u[n] + u[-n-1] ) Find the impulse response of the system b) Determine the difference equation that describes the system. c) Find the output y[n]. d) Is the system stable?
Question 2. (25 marks) Design a discrete time low-pass IIR filter operating at a sampling rate of 8 kHz such that its magnitude response is monotonic (i.e., smooth with no ripples) and satisfies the...
Question 2. (25 marks) Design a discrete time low-pass IIR filter operating at a sampling rate of 8 kHz such that its magnitude response is monotonic (i.e., smooth with no ripples) and satisfies the following conditions (i) The magnitude response has an attenuation of at least 20dB at 2000 Hz (ii) The magnitude response has an attenuation of at most 2dB at 1000 Hz Determine the transfer function, H(z) A. 120 Marks] sketch the Direct Form II structure of the...
A causal,d following difference equation linear, time-invariant system is governed by the (a) Determine the transfer...
A causal,d following difference equation linear, time-invariant system is governed by the (a) Determine the transfer function, H(2), of the system and its region of (b) Determine the output yi[n] of the system in response to the input (c) Determine the output y2fn] of the system in response to the input convergence. r2n (2). Note that z2n] does not have a z-transform.
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential...
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential equation: d'y) 3-10))-3*0)-6x0) dy_hi dx(t) where x() is the input function and y(t) is the output function. (a) Determine the transfer function H(a) of the system. (b) Determine the impulse response h(t) of the system.
For a causal LTI discrete-time system described by the difference equation:
For a causal LTI discrete-time system described by the difference equation: y[n] + y[n – 1] = x[n] a) Find the transfer function H(z).b) Find poles and zeros and then mark them on the z-plane (pole-zero plot). Is this system BIBO? c) Find its impulse response h[n]. d) Draw the z-domain block diagram (using the unit delay block z-1) of the discrete-time system. e) Find the output y[n] for input x[n] = 10 u[n] if all initial conditions are 0.
Q8) Consider the following causal linear time-invariant (LTI) discrete-time filter with input x[n] and output y[n] described by bx[n-21- ax[n-3 for n 2 0, where a and b are real-valued positive coefficients. A) Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? B) What are the initial conditions and their values? Why? C) Draw the block diagram of the filter relating input x[n] and output y[n] D) Derive a formula for the transfer function in...
6. (15) Consider the following causal linear time-invariant (LTT) discrete-time filter with input in and output yn described by y[n] = x[n] – rn - 2 for n 20 . Is this a finite impulse response (FIR) or infinite impulse response (IIR) filter? Why? • What are the initial conditions and their values for this causal and linear time-invariant system? Why? • Draw the block diagram of the filter relating input x[n) and output y[n] • Derive a formula for...
Problem 1 (Marks: 2+1.5+1.5+4) A linear time-invariant system has following impulse response -(よ 0otherwise 1. Determine if the system is stable or not. (Marks: 2) 2. Determine if the system is causal or non-causal. (Marks: 2) 3. Determine if the system is finite impulse response (FIR) or infinite impulse response (IIR). (Marks: 2) 4. If the system has input 2(n) = δ(n)-6(n-1) + δ(n-2), determine output y(n) = h(n)*2(n) for n=-1, 0, 1, 2, 3, 4, 5, 6, (Marks: 4)
a) The transfer function of an ideal low-pass filter is and its impulse response is where oc is the cut-off frequency i) Is hLP[n] a finite impulse response (FIR) filter or an infinite impulse response filter (IIR)? Explain your answer ii Is hLP[n] a causal or a non-causal filter? Explain your answer iii) If ae-0. IT, plot the magnitude responses for the following impulse responses b) i) Let the five impulse response samples of a causal FIR filter be given...
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the impulse response of the system. Is this system stable? c) Find the difference equation representation of this system.
4- Let the step response of a linear, time-invariant, causal system be (-1).uln] ylnl.ynl-ler uln].. 15 3 3 12 a) Find the transfer function H(Z) of this system b) Find the...
7. A causal LTI system has a transfer function given by H (z) = -1 (1 4 The input to the system is x[n] = (0.5)"u[n] + u[-n-1] ) Find the impulse response of the system b) Determine the difference equation that describes the system. c) Find the output y[n]. d) Is the system stable?
Question 2. (25 marks) Design a discrete time low-pass IIR filter operating at a sampling rate of 8 kHz such that its magnitude response is monotonic (i.e., smooth with no ripples) and satisfies the following conditions (i) The magnitude response has an attenuation of at least 20dB at 2000 Hz (ii) The magnitude response has an attenuation of at most 2dB at 1000 Hz Determine the transfer function, H(z) A. 120 Marks] sketch the Direct Form II structure of the...
A causal,d following difference equation linear, time-invariant system is governed by the (a) Determine the transfer function, H(2), of the system and its region of (b) Determine the output yi[n] of the system in response to the input (c) Determine the output y2fn] of the system in response to the input convergence. r2n (2). Note that z2n] does not have a z-transform.
Question 2 A linear time-invariant (LTI) system has its response described by the following second-order differential equation: d'y) 3-10))-3*0)-6x0) dy_hi dx(t) where x() is the input function and y(t) is the output function. (a) Determine the transfer function H(a) of the system. (b) Determine the impulse response h(t) of the system.
