1. For zinc (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm'. (18...
1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633...

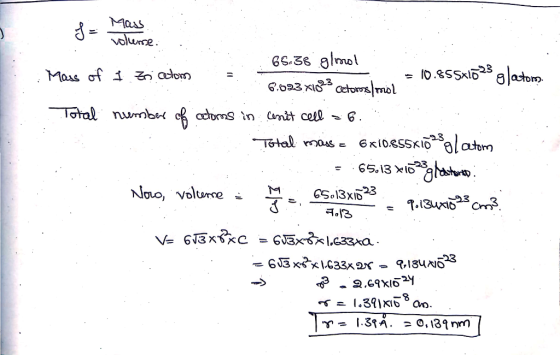

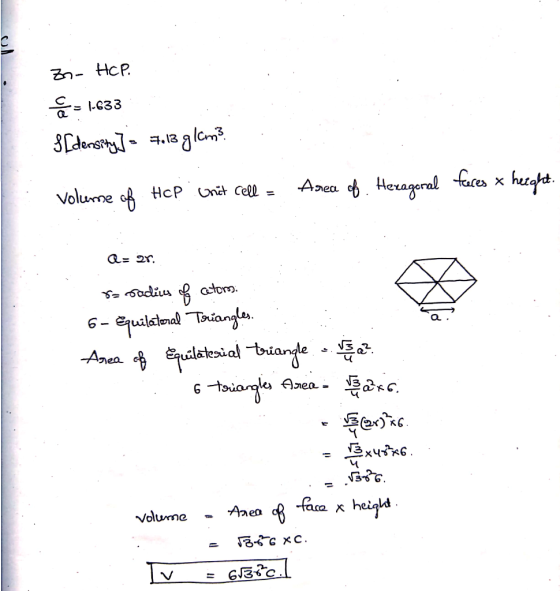

1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm, (18 marks) a) Show that the volume of the Zn unit cell is given by 6v3R2c. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is...
Zinc has an HCP unit cell for which the ratio of the lattice parameters c/a is 1.85. If the radius of the Zn atom is 0.1332 nm. a) determine the unit cell volume (You can still assume a = 2r the 2D planes are just not closely packed anymore) b) calculate the density of Zn and compare it with the literature value. *Explain why the values might be different.
6) A hypothetical metal has the simple cubic crystal structure. If its atomic weight is 70.6...
6) A hypothetical metal has the simple cubic crystal structure. If its atomic weight is 70.6 g/mol and the atomic radius is 0.128 nm, compute its theoretical density. (N=6.022 * 1023 atoms/mol) (Theoretical density-mass of atoms in unit cell/total volume of unit cell) 7) Write down the names of each crystal structure given below.
2. Calculate the atomic packing factor of the zinc blend (ZnS) crystal structure. The ZnS unit cell is shown below....
2. Calculate the atomic packing factor of the zinc blend (ZnS) crystal structure. The ZnS unit cell is shown below. (14 marks) The ionic radii of Zn?" and S. are 0.060 and 0.174 nm, respectively, On Os
fig 3.3 Problem 3.11 A hypothetical metal has the simple cubkc crystal structure shown in Egure...
fig 3.3
Problem 3.11 A hypothetical metal has the simple cubkc crystal structure shown in Egure 3.3. If its atomic weight is 73. 8 g/mol and the atomic radius is 0.147 nm, compute its density 9/cm the tolerance is +/-6% rfi : Figure 3.3 : For the simple cubic crystal : structure, (a) a hard-sphere : unit cell and (b) a reduced i sphere unit cell
Given that iridium has a FCC crystal structure, a density of 22.4 g per cubic centimeter,...
Given that iridium has a FCC crystal structure, a density of 22.4 g per cubic centimeter, and an atomic weight of 192.2 g/mol, what is the volume of its unit cell in cubic centimeters? For above problem calculate lattice parameter (a) for iridium in cm
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm....
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm. The atomic weights of the Na and Cl are 23 and 35.5 g/mol, respectively, and the Avogadro's number is 6.022 x 10“ formula units/mol. (a) Draw a unit cell to show the crystal structure of the NaCl. (b) What is the coordination number of the atoms in this structure? (c) How many Na atoms and Cl atoms in one unit-cell of such a structure?...
A metal crystallizes in the face-c entered cubic crystal structure with a unit cell edge of...
A metal crystallizes in the face-c entered cubic crystal structure with a unit cell edge of 3.84 x 10 -8 cm. The density of the metal is 22.5 g/cc. (a) What is the mass, in grams, of a single atom of this element? (b) What is the atomic weight of the element (g/mol). (c) What is the radius, in cm, of an atom of the element?
1) A hypothetical metal has the simple cubic crystal structure shown in Figure 3.3. If its...
1) A hypothetical metal has the simple cubic crystal structure shown in Figure 3.3. If its atomic weight is 79.4 g/mol and the atomic radius is 0.187 nm, compute its density. 2)Iron (Fe) undergoes an allotropic transformation at 912°C: upon heating from a BCC (α phase) to an FCC (γ phase). Accompanying this transformation is a change in the atomic radius of Fe—from RBCC = 0.12584 nm to RFCC = 0.12894 nm—and, in addition, a change in density (and volume)....
1) Cite the difference between atomic mass and atomic weight. 2) Without consulting any figures or...
1) Cite the difference between atomic mass and atomic weight. 2) Without consulting any figures or tables, determine whether each of the electron configurations given below is an inert gas, a halogen, an alkali metal, an alkaline earth metal, or a transition metal. Justify your choices. (a) 1s22s22p63523p63d7452 (d) 1s22s22p6352 (b) 1s22s22p63s23p6 (e) 1s22s22p63s23p63d2452 (C) 1s22s22p5 (1) 1s22s22p63523p6451 3) (a) What type(s) of bonding would be expected for each of the following materials; brass (a copper- zinc alloy), rubber, barium...
1. For zine (Zn) with a perfect HCP crystal structure having a c/a ratio of 1.633 and a density of 7.13 g/cm, (18 marks) a) Show that the volume of the Zn unit cell is given by 6v3R2c. (10 marks) b) Compute the atomic radius for Zn in nm. (8 marks)
2. Calculate the atomic packing factor of the zinc blend (ZnS) crystal structure. The ZnS unit cell is shown below. (14 marks) The ionic radii of Zn?" and S. are 0.060 and 0.174 nm, respectively, On Os
fig 3.3
Problem 3.11 A hypothetical metal has the simple cubkc crystal structure shown in Egure 3.3. If its atomic weight is 73. 8 g/mol and the atomic radius is 0.147 nm, compute its density 9/cm the tolerance is +/-6% rfi : Figure 3.3 : For the simple cubic crystal : structure, (a) a hard-sphere : unit cell and (b) a reduced i sphere unit cell
NaCl has a rock salt crystal structure with a unit cell edge length of 0.56 nm. The atomic weights of the Na and Cl are 23 and 35.5 g/mol, respectively, and the Avogadro's number is 6.022 x 10“ formula units/mol. (a) Draw a unit cell to show the crystal structure of the NaCl. (b) What is the coordination number of the atoms in this structure? (c) How many Na atoms and Cl atoms in one unit-cell of such a structure?...
1) Cite the difference between atomic mass and atomic weight. 2) Without consulting any figures or tables, determine whether each of the electron configurations given below is an inert gas, a halogen, an alkali metal, an alkaline earth metal, or a transition metal. Justify your choices. (a) 1s22s22p63523p63d7452 (d) 1s22s22p6352 (b) 1s22s22p63s23p6 (e) 1s22s22p63s23p63d2452 (C) 1s22s22p5 (1) 1s22s22p63523p6451 3) (a) What type(s) of bonding would be expected for each of the following materials; brass (a copper- zinc alloy), rubber, barium...
