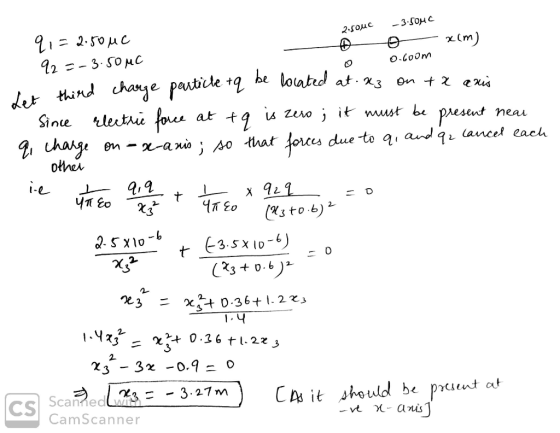

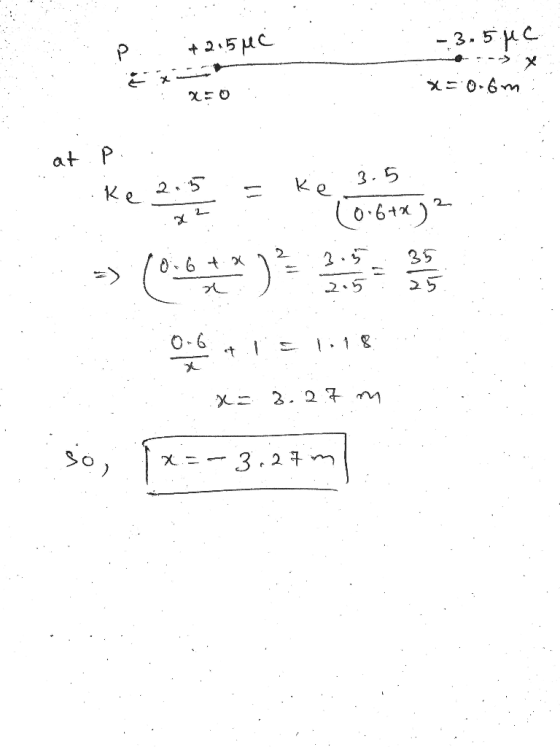

Two charges, one of 2.50?C and the other of -3.50?C, are placed on the x-axis, one at the origin and the other at x = 0.600 m, as shown in the figure (Figure 1)
a) Find the position on the x
-axis where the net force on a small charge +q would be zero.
Homework Answers
Add Answer to:
Two charges, one of 2.50?C
and the other of -3.50?C,
are placed on the
x-axis,
one at the origin and the other...
Two charges, one of 2.50uC and the other of -3.50HC are placed on the x-axis, one...
Two charges, one of 2.50uC and the other of -3.50HC are placed on the x-axis, one at the origin and the other at x 0.600 m, as shown in the figure (Figure 1) - Figure 1 of 1 +2.50 μC -3.50 μC x (m) 0.600 m 0 Find the position on the x-axis where the net force on a small charge +qwould be zero.
1. Two charges, one of 2.50 C and the other of -3.50 C, are placed at...
1. Two charges, one of 2.50 C and the other of -3.50 C, are placed at 0 m and z 0.6 rm respectively. Find the position on the z-axis where the net force on a small charge +g would be zero 2.50 C350 0,600 m
Consider two charges, where one (+3.50 nC) is at the origin and the other (-12.2 nC)...
Consider two charges, where one (+3.50 nC) is at the origin and the other (-12.2 nC) is at the position x = 2.22 cm. Find the x-coordinate where a proton would experience zero net force.
A charge of -2.50 nC is placed at the origin of an xy-coordinate system, and a...
A charge of -2.50 nC is placed at the origin of an xy-coordinate system, and a charge of 2.00 nC is placed on the y axis at y = 3.50 cm . A- f a third charge, of 5.00 nC , is now placed at the point x = 3.10 cm , y = 3.50 cm find the x and y components of the total force exerted on this charge by the other two charges. Express answers numerically separated by...
Two point charges are placed on the axis as follows: Charge q = 4.00 nC is...
Two point charges are placed on the axis as follows: Charge q = 4.00 nC is located at c = 0.220 m, and charge q = 4.90 nC is at -0.290 m. What are the magnitude and direction of the net force exerted by these two charges on a negative point charge 3 = -0.600 nC placed at the origin?
Two point charges lie on the x-axis. A charge of +2.50 pC is at the origin,...
Two point charges lie on the x-axis. A charge of +2.50 pC is at the origin, and a charge of -4.8 pC is at x=-12 cm. What third charge should be placed at x=+26 cm so that the total electric field at x=+13 cm is zero?
Two point charges are placed on the x-axis. The first with charge +Q is at the...
Two point charges are placed on the x-axis. The first with charge +Q is at the origin, and the second with charge −2Q is at x = 1.0 m. Where on the x-axis is the electric field equal to zero?
Put two point charges on the same x (or y) axis, some distance apart, but fixed...
Put two point charges on the same x (or y) axis, some distance apart, but fixed in place (immovable). One is positive, the other is negative, but their magnitudes are unequal. No other charges are nearby these two. There are two positions the same x (or y) axis where the net electric potential due to these two charges is zero. The question below can be answered for either position, but doesn't have to be answered for both. Question: choose one...
can you explain that to me ? Two electric charges are placed on the x=axis. One...
can you explain that to me ?
Two electric charges are placed on the x=axis. One (q1= + 8muC) is located at the origin, and the second charge (q2=-4muC) is located at x=1.25m. A third charge (q3=+20muC) is placed at x=2m. What is the net electric force on charge q3? What is the net electric field experienced by charge q3? In which region of the x-axis should we place q3 so that the net electric force on it equals zero?...
P3.(a) A +350-nC charge is placed at the origin. A charge Q is placed on the...
P3.(a) A +350-nC charge is placed at the origin. A charge Q is placed on the positive x axis at 2.0 cm. As a result, the charge at the origin experiences a force of 3.3 N towards positive x. Calculate Q. (b) A third charge (q = +170 nC) is placed on the x axis, with the result that the charge at the origin now has zero net force. Calculate the position of this third charge. (c) With all three...
Two charges, one of 2.50uC and the other of -3.50HC are placed on the x-axis, one at the origin and the other at x 0.600 m, as shown in the figure (Figure 1) - Figure 1 of 1 +2.50 μC -3.50 μC x (m) 0.600 m 0 Find the position on the x-axis where the net force on a small charge +qwould be zero.
1. Two charges, one of 2.50 C and the other of -3.50 C, are placed at 0 m and z 0.6 rm respectively. Find the position on the z-axis where the net force on a small charge +g would be zero 2.50 C350 0,600 m
Two point charges are placed on the axis as follows: Charge q = 4.00 nC is located at c = 0.220 m, and charge q = 4.90 nC is at -0.290 m. What are the magnitude and direction of the net force exerted by these two charges on a negative point charge 3 = -0.600 nC placed at the origin?
can you explain that to me ?
Two electric charges are placed on the x=axis. One (q1= + 8muC) is located at the origin, and the second charge (q2=-4muC) is located at x=1.25m. A third charge (q3=+20muC) is placed at x=2m. What is the net electric force on charge q3? What is the net electric field experienced by charge q3? In which region of the x-axis should we place q3 so that the net electric force on it equals zero?...
