Homework Answers
Add Answer to:

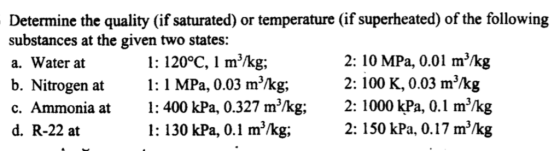

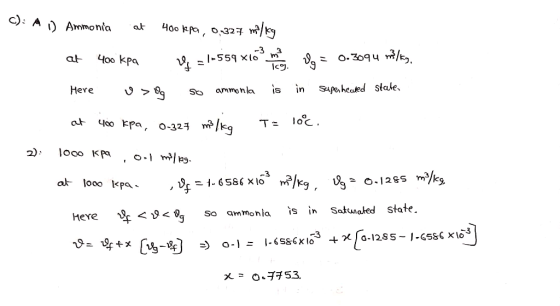

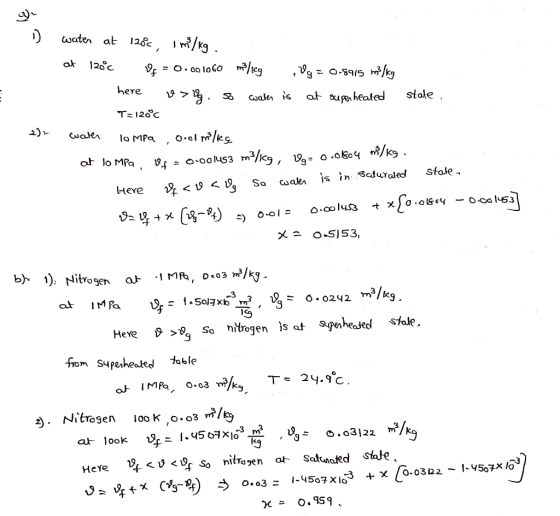

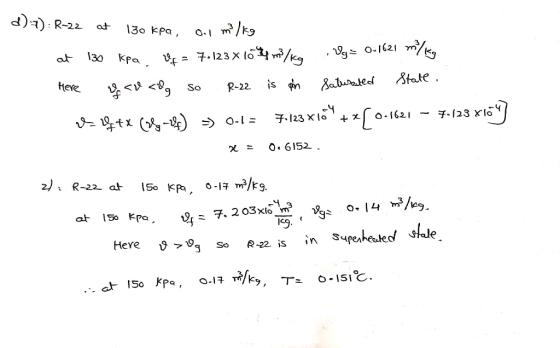

please explain Determine the quality (if saturated) or temperature (if superheated) of the following substances at the...
S Q. Find the entropy and/or temperature of steam at the following states Region k/kg K) 5 MPa 1 ...
s Q. Find the entropy and/or temperature of steam at the following states Region k/kg K) 5 MPa 1 MPa 18 MPa 400°C 40 kPa 40 kPa 120°C 50°C Quality, x-09, Mixed 71794 (<7.6700) Q. Determine the entropy change of water contained in a closed system as it changes phase rom saturated liquid to saturated vapor when the pressure is 0.1MPa and constant Why is the entropy change positive for this process? 2. Steam at 1 MPa, 6000C expands in...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P =...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P = 100 kPa C C c. P-2 MPa, T = 400°C 2-41) Calculate the mass of water contained in a 0.6-mº vessel under the following conditions: a. 100 kPa, 150°C b. 300 kPa, 600°C c. 50 kPa, 81°C d. 400 kPa, saturated vapor e. 400 kPa, saturated liquid f. At the critical state 2-42. Determine the internal energy of H.O at 10 MPa and 450°C....
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by...
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
An industrial steam turbine shown in the figure below receives 20 [kg/s] of superheated steam at...
An industrial steam turbine shown in the figure below receives 20 [kg/s] of superheated steam at 10 [MPa) and 500 [°C] (State 1). Steam is extracted for another industrial process at a rate of 5 kg/s) ata location in the turbine where the pressure is 1 [MPa) and the temperature is 200 [°C] (State 21. The remaining steam continues to expand through the turbine and exit at State 3, where the pressure is 10 [kPa) and the quality is 90%....
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem ()...
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem () Steam enters a turbine with a mass flow rate o turbine develops a power of 1000 KW. At the inlet the pr MPa, the temperature is 400 °C, and the veloeity is exit, the pressure is 10 KPa, the quality is 0.9, and the velocity is (8 marks) pressure is 6 At the 10 m/s. m/s. Determine the rate of heat transfer to the...
2.(40 pts.) A mixing chamber is used to heat liquid water to a saturated vapor by...
2.(40 pts.) A mixing chamber is used to heat liquid water to a saturated vapor by adding superheated steam. The liquid water enters through Line 1 at 1 MPa, a temperature of 100 C and a mass flow rate of 2 kg/s. The superheated steam enters through Line 2 at 1 MPa and 400°C. The combined stream exits through Line 3 as a saturated vapor at 1 MPa. The chamber also receives 3 MW of heat transferred from an external...
Please solve all the problems, show all work and please do not copy from the others....
Please solve all the problems, show all work and please do not
copy from the others.
Problem 1 A 3 HP heat pump operates between 0°F and 100°F. The maximum theoretical amount of Problem 2 An ideal vapor compression refrigeration cycle with R-134a as the working fluid operates between the pressure limits of 120 kPa and 1000 kPa. The mass fraction of the refrigerant that is in the liquid phase at the inlet of the evaporator is Problem 3 An...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
and guidores, Superheated On this p a vaporare, ma g st the insurated vapor, saturated vode...
and guidores, Superheated On this p a vaporare, ma g st the insurated vapor, saturated vode saturated andvaporarea, an brotherm Critical Isotherm Pressure (P) - Specific Volume (v) Diagram Problems involving the Continuity Equation 21. A fluid having a density of 1200 kg/m3 flows in a pipe that has an internal diameter of 60 cm. If 3 m3/sec flows in the pipe, determine the mass flow rate in kilograms per hour. 22. Air flows through a 12 in x 14...
I need question 4 thermodynamics ll 1-v diagram. Problem (4) team enters a turbine operating on...
I need question 4 thermodynamics
ll 1-v diagram. Problem (4) team enters a turbine operating on SSSF process with mass flow turbine develops a power out put of 100 K temperature is 400 °C, and the velocity is 10 m/s. At the e quality is 0.9, and the velocity is 50 m/s. Determine the rate of heat transfer from the turbine (KW). (10 marks) rate of 4600 kg/hr. The W. At the inlet, the pressure is 6 MPa, the ure...
s Q. Find the entropy and/or temperature of steam at the following states Region k/kg K) 5 MPa 1 MPa 18 MPa 400°C 40 kPa 40 kPa 120°C 50°C Quality, x-09, Mixed 71794 (<7.6700) Q. Determine the entropy change of water contained in a closed system as it changes phase rom saturated liquid to saturated vapor when the pressure is 0.1MPa and constant Why is the entropy change positive for this process? 2. Steam at 1 MPa, 6000C expands in...
90 Chapter 2 PROPERTIES OF SUBSTANCES for all Pages Due 03/19/2020 start b. x=0.2, P = 100 kPa C C c. P-2 MPa, T = 400°C 2-41) Calculate the mass of water contained in a 0.6-mº vessel under the following conditions: a. 100 kPa, 150°C b. 300 kPa, 600°C c. 50 kPa, 81°C d. 400 kPa, saturated vapor e. 400 kPa, saturated liquid f. At the critical state 2-42. Determine the internal energy of H.O at 10 MPa and 450°C....
Homework 2 Problem 1: A piston-cylinder device initially contains 0.35-kg steam at 3.5 MPa, superheated by 7.4 C. Now the stream loses heat to the surroundings and the piston moves down, hitting a set of stops at which point the cylinder contains saturated liquid water. The cooling continues until the cylinder contains water at 200C. Determine (a) the final pressure and the quality (if mixture), (b) the boundary work, (c) the amount of heat transfer when the piston first hits...
An industrial steam turbine shown in the figure below receives 20 [kg/s] of superheated steam at 10 [MPa) and 500 [°C] (State 1). Steam is extracted for another industrial process at a rate of 5 kg/s) ata location in the turbine where the pressure is 1 [MPa) and the temperature is 200 [°C] (State 21. The remaining steam continues to expand through the turbine and exit at State 3, where the pressure is 10 [kPa) and the quality is 90%....
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem () Steam enters a turbine with a mass flow rate o turbine develops a power of 1000 KW. At the inlet the pr MPa, the temperature is 400 °C, and the veloeity is exit, the pressure is 10 KPa, the quality is 0.9, and the velocity is (8 marks) pressure is 6 At the 10 m/s. m/s. Determine the rate of heat transfer to the...
2.(40 pts.) A mixing chamber is used to heat liquid water to a saturated vapor by adding superheated steam. The liquid water enters through Line 1 at 1 MPa, a temperature of 100 C and a mass flow rate of 2 kg/s. The superheated steam enters through Line 2 at 1 MPa and 400°C. The combined stream exits through Line 3 as a saturated vapor at 1 MPa. The chamber also receives 3 MW of heat transferred from an external...
Please solve all the problems, show all work and please do not
copy from the others.
Problem 1 A 3 HP heat pump operates between 0°F and 100°F. The maximum theoretical amount of Problem 2 An ideal vapor compression refrigeration cycle with R-134a as the working fluid operates between the pressure limits of 120 kPa and 1000 kPa. The mass fraction of the refrigerant that is in the liquid phase at the inlet of the evaporator is Problem 3 An...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
and guidores, Superheated On this p a vaporare, ma g st the insurated vapor, saturated vode saturated andvaporarea, an brotherm Critical Isotherm Pressure (P) - Specific Volume (v) Diagram Problems involving the Continuity Equation 21. A fluid having a density of 1200 kg/m3 flows in a pipe that has an internal diameter of 60 cm. If 3 m3/sec flows in the pipe, determine the mass flow rate in kilograms per hour. 22. Air flows through a 12 in x 14...
I need question 4 thermodynamics
ll 1-v diagram. Problem (4) team enters a turbine operating on SSSF process with mass flow turbine develops a power out put of 100 K temperature is 400 °C, and the velocity is 10 m/s. At the e quality is 0.9, and the velocity is 50 m/s. Determine the rate of heat transfer from the turbine (KW). (10 marks) rate of 4600 kg/hr. The W. At the inlet, the pressure is 6 MPa, the ure...
