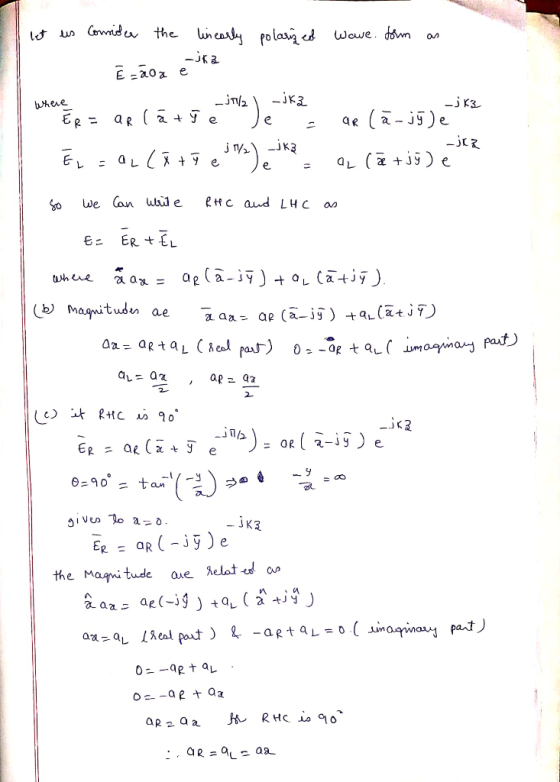

5) (a) Show that a linearly polarized plane wave can be represented the sum ofa RHC and LHC polarized wave. (b) How...
e0-0s0t jno EE4101/EE4101E RF Communications/ Page 5 Section B A uniform plane wave in a lossless...
e0-0s0t jno EE4101/EE4101E RF Communications/ Page 5 Section B A uniform plane wave in a lossless dielectric, in general, includes four wave solutions propagating along +z and-z directions as follows: Q.5 TEM Eo = e le EEe н; -E E Ee H yo e le E e н; E Ee E 0 E, Ee н; ele A plane wave can be considered as the combination of all possible solutions. Assume the plane wave is polarized along-direction, it could be generally...
5. A plane, linearly polarized light wave, with intensity, Io, is transmitted through a system of perfect linear polarizers (we assume that all light is transmitted in the transmission direction but...
5. A plane, linearly polarized light wave, with intensity, Io, is transmitted through a system of perfect linear polarizers (we assume that all light is transmitted in the transmission direction but in the perpendicular direction all light is absorbed). Give for the following systems of polarizers and transmission directions the total transmitted intensity: (angles are measured in the same direction and relatively to the polarization direction of the incident light) a) one at 90° angle b) two at the angles...
please show your work Problem 9 A linearly polarized electromagnetic wave is sent through two sheets...
please show your work
Problem 9 A linearly polarized electromagnetic wave is sent through two sheets of polarizing material. The first sheet, A, is oriented so that its transmission axis makes an angle of 30° with respect to the incident electric field of the wave. The second sheet, B, is oriented so that its transmission axis makes an angle of 90° with the incident electric field of the wave. The incident beam has an electric field of peak magnitude E,...
424· The complex electric field of a uniform 4.26. In a source-free, free-space region, the plane...
424· The complex electric field of a uniform 4.26. In a source-free, free-space region, the plane wave is given by complex magnetic field of a time-harmonic field is represented by (a) Find the polarization of the wave (lin- ear, circular, or elliptical) (b) Determine the sense of rotation (clock wise or counterclockwise). (c) Sketch the figure the electric field where EO is a constant and Po is the intrin- sic impedance of free space. Determine the: (a) Polarization of the...
Two waves are traveling simultaneously down a long Slinky. They can be represented by the following...
Two waves are traveling simultaneously down a long Slinky. They can be represented by the following equations. 41(x, t) = 0.00260 sin(6.00x – 330t) 42(x, t) = 0.00260 sin(7.20x – 250t) Distances are measured in meters and time in seconds. (a) Write the expression for the resulting wave. (Use the following as necessary: x and t. Do not include units in your answer.) W = (b) What are the phase and group velocities in m/s)? (Enter the magnitudes.) phase velocity...
question 7 and 8 Purpose To examine the properties of polarized light and the mathematical relationship...
question 7 and 8
Purpose To examine the properties of polarized light and the mathematical relationship describing the intensity of linearly polarized light (Malus'law). In addition, the lab will investigate different ways light can be polarized Overview This lab is the first of three labs exploring the properties of electromagnetic waves. Electromagnetic waves are composed of oscillating electric and magnetic fields. As discussed in the lecture the electric and magnetic field vectors are mutually perpendicular to each other. Light waves...
4. (4.5 pts) Consider a 3D electromagnetic plane wave in vacuum, described in usual complex form...
4. (4.5 pts) Consider a 3D electromagnetic plane wave in vacuum, described in usual complex form by, (r, t) = Ēelkr-wt) in which ło = Epein/2y. Where k = -kx is the wave vector (assume k > 0) and w > 0 is the angular frequency. As usual, the real field is Er, t) = ReLEr, t)] (a) In which direction is the wave propagating? In terms of the given values k and w, what is the speed, wavelength, and...
. 3. An electromagnetic plane wave of (angular) frequency w is traveling in the r direc-...
. 3. An electromagnetic plane wave of (angular) frequency w is traveling in the r direc- tion through the vacuum. It is polarized in the y direction, and the amplitude of the electric field is E (a) Write down the electric and magnetic fields, E(r, y, z, t) and B(x, y, z,t). Be sure to define any auxiliaru quantities you introduce, in terms of w, Eo, and the con stants of nature.] (b) This same wave is observed from "other"...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and f...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and fthe frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (i.e., to 1/3 of the amplitude at z-0 when it arrives at z- 100...
Electromagnetic plane waves in a lossy medium field of an electromagnetic plane wave traveling in a lossy medium can be written as 6. The where z is the distance, t is time, and f the frequency....
Electromagnetic plane waves in a lossy medium field of an electromagnetic plane wave traveling in a lossy medium can be written as 6. The where z is the distance, t is time, and f the frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (ie, to 130f the amplitude at z = 0 when it arrives at z-100 m)....
e0-0s0t jno EE4101/EE4101E RF Communications/ Page 5 Section B A uniform plane wave in a lossless dielectric, in general, includes four wave solutions propagating along +z and-z directions as follows: Q.5 TEM Eo = e le EEe н; -E E Ee H yo e le E e н; E Ee E 0 E, Ee н; ele A plane wave can be considered as the combination of all possible solutions. Assume the plane wave is polarized along-direction, it could be generally...
5. A plane, linearly polarized light wave, with intensity, Io, is transmitted through a system of perfect linear polarizers (we assume that all light is transmitted in the transmission direction but in the perpendicular direction all light is absorbed). Give for the following systems of polarizers and transmission directions the total transmitted intensity: (angles are measured in the same direction and relatively to the polarization direction of the incident light) a) one at 90° angle b) two at the angles...
please show your work
Problem 9 A linearly polarized electromagnetic wave is sent through two sheets of polarizing material. The first sheet, A, is oriented so that its transmission axis makes an angle of 30° with respect to the incident electric field of the wave. The second sheet, B, is oriented so that its transmission axis makes an angle of 90° with the incident electric field of the wave. The incident beam has an electric field of peak magnitude E,...
424· The complex electric field of a uniform 4.26. In a source-free, free-space region, the plane wave is given by complex magnetic field of a time-harmonic field is represented by (a) Find the polarization of the wave (lin- ear, circular, or elliptical) (b) Determine the sense of rotation (clock wise or counterclockwise). (c) Sketch the figure the electric field where EO is a constant and Po is the intrin- sic impedance of free space. Determine the: (a) Polarization of the...
Two waves are traveling simultaneously down a long Slinky. They can be represented by the following equations. 41(x, t) = 0.00260 sin(6.00x – 330t) 42(x, t) = 0.00260 sin(7.20x – 250t) Distances are measured in meters and time in seconds. (a) Write the expression for the resulting wave. (Use the following as necessary: x and t. Do not include units in your answer.) W = (b) What are the phase and group velocities in m/s)? (Enter the magnitudes.) phase velocity...
question 7 and 8
Purpose To examine the properties of polarized light and the mathematical relationship describing the intensity of linearly polarized light (Malus'law). In addition, the lab will investigate different ways light can be polarized Overview This lab is the first of three labs exploring the properties of electromagnetic waves. Electromagnetic waves are composed of oscillating electric and magnetic fields. As discussed in the lecture the electric and magnetic field vectors are mutually perpendicular to each other. Light waves...
4. (4.5 pts) Consider a 3D electromagnetic plane wave in vacuum, described in usual complex form by, (r, t) = Ēelkr-wt) in which ło = Epein/2y. Where k = -kx is the wave vector (assume k > 0) and w > 0 is the angular frequency. As usual, the real field is Er, t) = ReLEr, t)] (a) In which direction is the wave propagating? In terms of the given values k and w, what is the speed, wavelength, and...
. 3. An electromagnetic plane wave of (angular) frequency w is traveling in the r direc- tion through the vacuum. It is polarized in the y direction, and the amplitude of the electric field is E (a) Write down the electric and magnetic fields, E(r, y, z, t) and B(x, y, z,t). Be sure to define any auxiliaru quantities you introduce, in terms of w, Eo, and the con stants of nature.] (b) This same wave is observed from "other"...
Problem 6. Electromagnetic plane waves in a lossy medium The electric field of an electromagnetic plane wave traveling in a lossy medium can be written as where z is the distance, t is time, and fthe frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (i.e., to 1/3 of the amplitude at z-0 when it arrives at z- 100...
Electromagnetic plane waves in a lossy medium field of an electromagnetic plane wave traveling in a lossy medium can be written as 6. The where z is the distance, t is time, and f the frequency. For f 1 GHz, it is found by measurement that the amplitude of the electric field is attenuated by a factor of 3 after the wave travels 100 m (ie, to 130f the amplitude at z = 0 when it arrives at z-100 m)....
