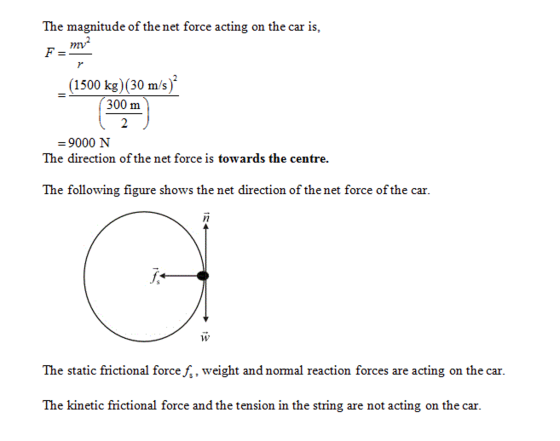

Construct a free-body diagram and identify the variables that are given or need to be found. Sort the followi...
To practice Tactics Box 4.3 Drawing a free-body diagram. A free-body diagram is a diagram that represents the object as...
To practice Tactics Box 4.3 Drawing a free-body diagram. A
free-body diagram is a diagram that represents the object as a
particle and shows all of the forces acting on the object. Learning
how to draw such a diagram is a very important skill in solving
physics problems. This Tactics Box explains the essential steps to
construct a correct free-body diagram.
on the object. Explain your reasoning Sl. A student draws the flawed free-body diagram shown in...
on the object. Explain your reasoning Sl. A student draws the flawed free-body diagram shown in Figure P4.51 to represent the forces acting stant speed then draw a correct free-body diagram for this situation. acting traveling at con- on a car on a level road. Identify the errors in the diagram, Incorrect diagram Incorrect Action/ reaction pair Car diagram! Ball motacen FIGURE P4.51 FIGURE P4.52
B.1 Identify the forces acting on the pendulum bob: Draw a Free Body Diagram of the...
B.1 Identify the forces acting on the pendulum bob: Draw a Free Body Diagram of the mass B.6 In the simulation, show the bob’s acceleration. Where is it largest and smallest? Explain why. Hint: draw a Free Body Diagram of the mass at each point.
Whenever you face a problem involving forces, always start with a free-body diagram.
Learning Goal: To gain practice drawing free-body diagramsWhenever you face a problem involving forces, always start with a free-body diagram.To draw a free-body diagram use the following steps:Isolate the object of interest. It is customary to represent the object of interest as a point in your diagram.Identify all the forces acting on the object and their directions. Do not include forces acting on other objects in the problem. Also, do not include quantities, such as velocities and accelerations, that do...
Free-body diagrams!
a brick of mass M has been placed on a rubber cushion of mass m. Together they are sliding to the right at constant velocity on an ice-covered parking lot.a) Draw a free-body diagram of the brick and identify each force acting on it.b) Draw a free-body diagram of the cushion and identify each froce acting on itc) Identify all of the action-reaction pairs of forces in the brick-cushion-planet system.
So we are learning about the Free Body diagram and method but I don't fully understand...
So we are learning about the Free Body diagram and method but I
don't fully understand how to apply the steps to the problem. 1st I
have to identify all the forces acting such as gravity by drawing
it out. 2nd I have to use that drawing and draw it in a free body
diagram form in the x-axis and y-axis where the object is at the
origin and that the forces are arrows and then rotate it the degree...
a marble is launched in the air at a projectile. draw the free-body diagram showing all...
a marble is launched in the air at a projectile. draw the
free-body diagram showing all the forces acting on the
marble.
E
draw free body diagrams and answer questions please Draw the free body diagram for the bob...
draw free body diagrams and answer questions please
Draw the free body diagram for the bob (note that the spring is not attached at this time): bobt Equilibrium Marker 2. How does spinning the bob faster affect the period (time required for 1 full revolution)? The period increases. It takes more for the bob to go around once. The period stays the same. The period decreases. It takes less time for the bob to go around once. to the centripetal...
Q#1 Create the free-body diagram for particle 3.(just need free body diagram for particle 3) Three...
Q#1 Create the free-body diagram for particle 3.(just need free body diagram for particle 3) Three particles are fixed on an x axis. Particle 1 of charge q1 is at x = - a, and particle 2 of charge q2 is at x = + a. If their net electrostatic force on particle 3 of charge + Q is to be zero, what must be the ratio q1/q2 when particle 3 is at x = 1.50a? Important: Assume that the...
A bus is parked on a very steep 30.00 hill What is the free body diagram...
A bus is parked on a very steep 30.00 hill What is the free body diagram for the forces acting on this bus? (length of vector isn't important to Maple TA, only the direction) Choose a Type angle Draw
To practice Tactics Box 4.3 Drawing a free-body diagram. A
free-body diagram is a diagram that represents the object as a
particle and shows all of the forces acting on the object. Learning
how to draw such a diagram is a very important skill in solving
physics problems. This Tactics Box explains the essential steps to
construct a correct free-body diagram.
on the object. Explain your reasoning Sl. A student draws the flawed free-body diagram shown in Figure P4.51 to represent the forces acting stant speed then draw a correct free-body diagram for this situation. acting traveling at con- on a car on a level road. Identify the errors in the diagram, Incorrect diagram Incorrect Action/ reaction pair Car diagram! Ball motacen FIGURE P4.51 FIGURE P4.52
Learning Goal: To gain practice drawing free-body diagramsWhenever you face a problem involving forces, always start with a free-body diagram.To draw a free-body diagram use the following steps:Isolate the object of interest. It is customary to represent the object of interest as a point in your diagram.Identify all the forces acting on the object and their directions. Do not include forces acting on other objects in the problem. Also, do not include quantities, such as velocities and accelerations, that do...
So we are learning about the Free Body diagram and method but I
don't fully understand how to apply the steps to the problem. 1st I
have to identify all the forces acting such as gravity by drawing
it out. 2nd I have to use that drawing and draw it in a free body
diagram form in the x-axis and y-axis where the object is at the
origin and that the forces are arrows and then rotate it the degree...
a marble is launched in the air at a projectile. draw the
free-body diagram showing all the forces acting on the
marble.
E
draw free body diagrams and answer questions please
Draw the free body diagram for the bob (note that the spring is not attached at this time): bobt Equilibrium Marker 2. How does spinning the bob faster affect the period (time required for 1 full revolution)? The period increases. It takes more for the bob to go around once. The period stays the same. The period decreases. It takes less time for the bob to go around once. to the centripetal...
A bus is parked on a very steep 30.00 hill What is the free body diagram for the forces acting on this bus? (length of vector isn't important to Maple TA, only the direction) Choose a Type angle Draw
