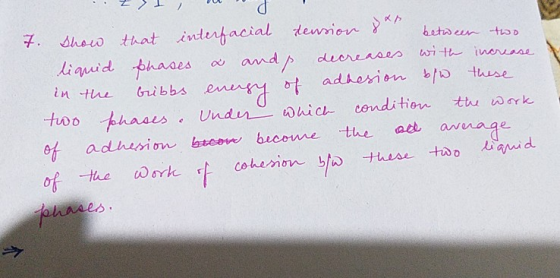

7.
Given information: α and β are two liquid phases. γαβ is the interfacial tension between these two liquid phases.
Let, the area of the interface is 1 m2, so if we separate these two phases apart we will get 1 m2 interface between pure α and vapour with interfacial tension of γαv and similarly another 1 m2 interface between pure β and vapour with interfacial tension of γβv. Therefore, the change in Gibbs energy for this transformation is,
ΔGA = wAαβ = γαv + γβv - γαβ … … (1)
This increase in Gibbs energy is known as work of adhesion, wAαβ, between the phases α and β.
Now, if we separate a pure column of α, 2 m2 of α-vapour interface will form and then,
ΔGC = wCα = 2γαv
This Gibbs energy change, wCα, is known as work of cohesion of α. So, for β it will be, wCβ = 2γβv.
Therefore, we can write,
wAαβ = (1/2) wCα + (1/2) wCβ - γαβ
or, γαβ = (1/2)(wCα + wCβ) - wAαβ … … (2)
or, γαβ = (1/2)(wCα + wCβ) - ΔGA … … (3)
So, from eqn. (3) we can conclude that γαβ decreases with the increase in Gibbs energy of adhesion (ΔGA).
Now, from eqn. (2) when γαβ = 0; which means spontaneous mixing of two liquids; that is, there is no resistance to the extension of the two interfaces between α and β, we get,
wAαβ = (1/2)(wCα + wCβ)
So, in this condition (when γαβ = 0) the work of adhesion becomes the average of work of cohesion of these two liquid phases α and β.
