B Field Due To a Hairpin

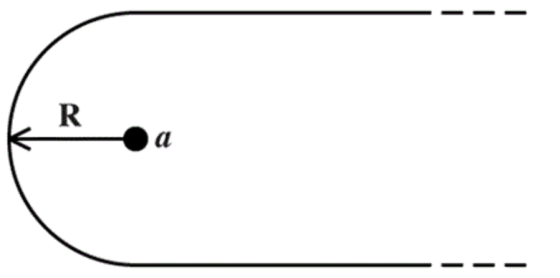

A long hairpin is formed by bending an infinitely long wire, as shown. If a current of 2.8 A is set up in the wire, what is the magnitude of the magnetic field at the point a? Assume R = 11 cm.
Homework Answers
let the current flow in an anti-clockwise direction,
magnetic field due to semi-circular wire = 1/2(μI/2r). (in a direction perpendicular to the plane of ur screen)
magnetic field due to upper stright wire(half infinite wire) = 1/2(μI/2πr),(in the same direction)
magnetic field due to lower stright wire(half infinite wire) = 1/2(μI/2πr). (in the same direction)
as three are in same direction add those ans = μI/4r+μI/2πr =
=4π*10-7*2.8[2/(4*π*0.11) + 1/(4*0.11) ]
=4*π*10-7*2.8*2.272
=8.141 x10-6 T
I is the current and 'r' is the radius.
A long hairpin is formed by bending an infinitely long wire, as shown. If a current...
A long hairpin is formed by bending an infinitely long wire, as
shown. If a current of 1.10 A is set up in the wire, what is the
magnitude of the magnetic field at the point a? Assume
R = 4.10 cm.
A long hairpin is formed by bending a very long wire as shown below. The wire...
A long hairpin is formed by bending a very long wire as shown below. The wire Carries a current of 10 (a) What are the direction and magnitude of the magnetic field at point "a" What are the direction and magnitude of the magnetic field at point "b" Take the radius of the semicircular part to be 0.005 m and assume that point "a" is a longway from "b" and that that distanc is much larger than 0.005 m. Also,...
A long hairpin is formed by bending a very long wire, as shown.If the wire...
A long hairpin is formed by bending a very long wire, as shown. If the wire carries a current of 15 A, what is the magnitude and direction of the magnetic field at the point a? Take R = 15 mm. Take the sign of B to be positive if the direction is out of the paper and negative if B is into the paper. You need to enter the number with its sign and space and the unit.What is...
I only need help with questions 4,5,6,7, and 8. thanks Magnetic field and Magnetic Force due...
I
only need help with questions 4,5,6,7, and 8. thanks
Magnetic field and Magnetic Force due to a (long, straight) current PHYS 181 - in class problem set An infinitely long conductor carrying current is bent at a right angle as shown in Figure 1. Point P is located a distance b from the corner of the wire. Only one section of this current contributes to the magnetic field at pt. P. Why? The general formula (derived from the Biot-Savart...
In the figure below, a current i = 10 A is set up in a long...
In the figure below, a current i = 10 A is set up in a long hairpin conductor formed by bending a wire into a semicircle of radius R = 5.0 mm. Point b is midway between the straight sections and so distant from the semicircle that each section can be approximated as being an infinite wire. What are the (a) magnitude and (b) direction (into or out of the page) of B at point a and the (c) magnitude...
In the figure, a rectangular loop of wire with length a = 3.8 cm, width b...
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using symmetry and Ampere's law, find the magnitude and direction of the magnetic field at a point inside the wire. For the purposes of this problem, use a cylindrical coordinate system with the current in the +z-direction, as shown coming out of the screen in the top illustration. The radial r-coordinate of each point is the distance to the central axis of the wire, and...
A single-coil loop of radius r = 7.00 mm, shown below, is formed in the middle...
A single-coil loop of radius r = 7.00 mm, shown below, is formed
in the middle of an infinitely long, thin, insulated straight wire
carrying the current i = 37.0 mA.
What is the magnitude of the magnetic field at the center of the
loop?
A single-coil loop of radius r = 7.10 mm, shown below, is formed in the middle...
A single-coil loop of radius r = 7.10 mm, shown below, is formed in the middle of an infinitely long, thin, insulated straight wire carrying the current i = 45.5 mA. What is the magnitude of the magnetic field at the center of the loop?
A long hairpin is formed by bending an infinitely long wire, as
shown. If a current of 1.10 A is set up in the wire, what is the
magnitude of the magnetic field at the point a? Assume
R = 4.10 cm.
A long hairpin is formed by bending a very long wire as shown below. The wire Carries a current of 10 (a) What are the direction and magnitude of the magnetic field at point "a" What are the direction and magnitude of the magnetic field at point "b" Take the radius of the semicircular part to be 0.005 m and assume that point "a" is a longway from "b" and that that distanc is much larger than 0.005 m. Also,...
I
only need help with questions 4,5,6,7, and 8. thanks
Magnetic field and Magnetic Force due to a (long, straight) current PHYS 181 - in class problem set An infinitely long conductor carrying current is bent at a right angle as shown in Figure 1. Point P is located a distance b from the corner of the wire. Only one section of this current contributes to the magnetic field at pt. P. Why? The general formula (derived from the Biot-Savart...
In the figure below, a current i = 10 A is set up in a long hairpin conductor formed by bending a wire into a semicircle of radius R = 5.0 mm. Point b is midway between the straight sections and so distant from the semicircle that each section can be approximated as being an infinite wire. What are the (a) magnitude and (b) direction (into or out of the page) of B at point a and the (c) magnitude...
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using symmetry and Ampere's law, find the magnitude and direction of the magnetic field at a point inside the wire. For the purposes of this problem, use a cylindrical coordinate system with the current in the +z-direction, as shown coming out of the screen in the top illustration. The radial r-coordinate of each point is the distance to the central axis of the wire, and...
A single-coil loop of radius r = 7.00 mm, shown below, is formed
in the middle of an infinitely long, thin, insulated straight wire
carrying the current i = 37.0 mA.
What is the magnitude of the magnetic field at the center of the
loop?
