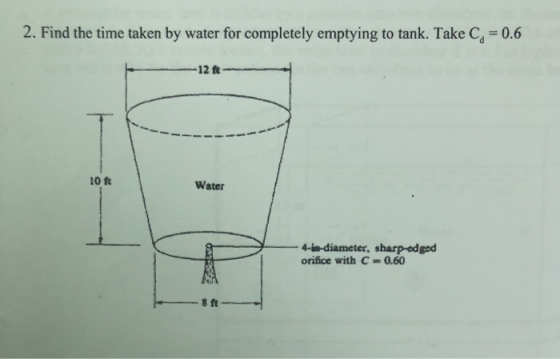

2. Find the time taken by water for completely emptying to tank. Take C 0.6 12 ft 10 ft Water 4-diameter, sharp-edg...
1. A circular tank of diameter 4 m contains water up to a height of 5 m. The tank is provided with an orifice of diameter 0.5 m at the bottom. Find the time taken by water (i) to fall from 5 m to 2 m (ii) for completely emptying to tank. Take C-0.6
3. A hemispherical tank of diameter 4 m contains water upto a height of 1.5 m. An orifice of darmeter 50 mm is provided at the bottom. Find the time required by water (i) to fall from 5 m to 2 m (ii) for completely emptying to tank. Take Ca 0.6
A 3-m-diameter tank is initially filled with water 2 m above the center of a sharp-edged 10-cm-diameter orifice. The tank water surface is open to the atmosphere, and the orifice drains to the atmosphere through a 100-m-long pipe. The friction coefficient of the pipe is taken to be 0.015 and the effect of the kinetic energy correction factor can be neglected. In order to drain the tank faster, a pump is installed near the tank exit. Water tank Pump 6...
A 3-m-diameter tank is initially filled with water 2 m above the center of a sharp-edged 10-cm-diameter orifice. The tank water surface is open to the atmosphere, and the orifice drains to the atmosphere through a 100-m-long pipe. The friction coefficient of the pipe is taken to be 0.015 and the effect of the kinetic energy correction factor can be neglected. In order to drain the tank faster, a pump is installed near the tank exit. Water tank Pump Required...
A 3-m-diameter tank is initially filled with water 2 m above the center of a sharp-edg 10-cm-diameter orifice. The tank water surface is open to the atmosphere, and the orifice drains to the atmosphere through a 100-m-long pipe. The friction coefficient the pipe is taken to be 0.015 and the effect of the kinetic energy correction factor ca be neglected. In order to drain the tank faster, a pump is installed near the tank exit Water tank Pamp Required infor...
A tank has an upper cylindrical portion of 5m diameter and 4m high with hemispherical base. Find the time required to empty it through an orifice of 200mm diameter at its bottom, if the tank is initially full of water. Take Cd=0.6 for the orifice.
5. A cylindrical tank is having a hemispherical base. The height of cylindrical portion is 5 m and diameter is 4 m. At the bottom of this tank an orifice of diameter 200 mm is fitted. Find the time required to completely emptying the tank. Take Cd 0.6 5 m 4.0 m- 2.0m ORIFICE
Draining tank with water depth change Water depth (in) Time increment (s) 3.53 21 20 3.44 19 2.71 18 3.3 17 3.13 16 3.78 15 3.41 14 3.81 13 3.13 12 4.41 11 3.6 10 4.01 9 4.55 8 4.83 4.66 7 6 4.7 5 5.45 5.51 4 7,43 2 7,66 1 8.45 0 11.46 Draining tank with constant water depth (12 in) 950 mL collected in 20.13 s Problem Statement An open tank (D 4 in) is filled with...
10 peles A 3-m-diameter tank is initially filled with water 2 m above the center of a sharp-edged 10 cm diameter orifice. The tank water surface is open to the other, and the orice drains to the atmosphere through a 100-m-long pipe. The initial discharge velocity is 4 m/s. The friction coefficient of the can be when to be 0.015 and the effect of the energy correction the factor can be neglected. Determine (a) the initial velocity from the tank...
7. A jet of liquid issues from a 30 mm diameter sharp-edged orifice located in the wall of a 1 m diameter cylindrical tank. The orifice is located near the bottom of the tank. (a) Show that the variation of liquid level with time (1) in the tank is given by: 2 - [h12 - 112] C. 28 | where: h = Depth of liquid above the orifice initially h2 = Depth of liquid above the orifice at the end...
