please help! :( Cell potential for the following cell was measured to 0.889 V at 25 ° C Pt (s) H2 (g, 0.95 bar) H(aq...

Question

Question

please help! :(

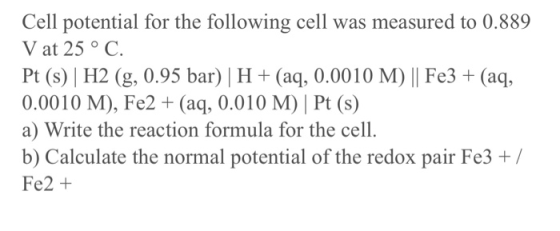

Cell potential for the following cell was measured to 0.889 V at 25 ° C Pt (s) H2 (g, 0.95 bar) H(aq, 0.0010 M) || Fe3 + (aq

science chemistry

Answer 1

Answer #1

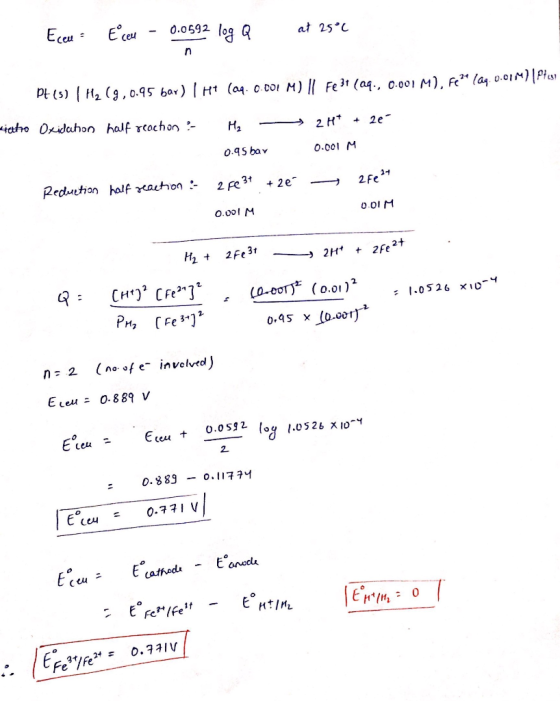

Ecele 3 Ecem - 0.0592 log Q at 25°C PL (5) H2 (9,0.95 bar) Ht (04. 0.001 M) || Fe 3+ (aq., 0.001 M), Feat lag. 0.01M) Plast w

Answer 2

Similar Homework Help Questions

16.2 cell potential for the following cell was measured to 0.889 V at 25 ° C....

16.2 cell potential for the following cell was measured to 0.889 V at 25 ° C. Pt (p) | H 2 (g, 0.95 bar) | H + (aq, 0.0010 M) || Fe3 + (aq, 0.0010 M), Fe2 + (aq, 0.010 M) | Pt (s) a) Write the reaction formula for the cell. b) Calculate the normal potential of the redox pair Fe3 + / Fe2 +.
Consider the cell Pt(s)|H2(g,1atm)|H+(aq,a=1)|Fe3+(aq),Fe2+(aq)|Pt(s) given that Fe3++e−⇌Fe2+ and E∘=0.771V at 298.15 K. If the cell potential...

Consider the cell Pt(s)|H2(g,1atm)|H+(aq,a=1)|Fe3+(aq),Fe2+(aq)|Pt(s) given that Fe3++e−⇌Fe2+ and E∘=0.771V at 298.15 K. If the cell potential is 0.683 V, what is the ratio of Fe2+(aq) to Fe3+(aq)? What is the ratio of these concentrations if the cell potential is 0.807 V?
For the cell shown, the measured cell potential, ?cell, is −0.3629 V at 25 °C. Pt(s)...

For the cell shown, the measured cell potential, ?cell, is −0.3629 V at 25 °C. Pt(s) | H2(g,0.899 atm) | H+(aq,? M) || Cd2+(aq,1.00 M) | Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, ?o, are 2H+(aq)+2e−⟶H2(g)?o=0.00 V Cd2+(aq)+2e−⟶Cd(s)?o=−0.403 V Calculate the H+ concentration. [H+]=

For the cell shown, the measured cell potential, Ecell, is -0.3711 V at 25 °C Pt(s)...

For the cell shown, the measured cell potential, Ecell, is -0.3711 V at 25 °C Pt(s) H2(g, 0.865 atm) | Ht (aq,? M) || Cd2+ (aq, 1.00 M) | Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, E°, are 2 H"(aq) + 2е — H2(g) Eo = 0.00 V Cd2+(aq)2 e - Cd(s) Eo =-0.403 V Calculate the Ht concentration М
For the cell shown, the measured cell potential, Ecell, is -0.3689 V at 25 °C. Pt(s)H,(g,...

For the cell shown, the measured cell potential, Ecell, is -0.3689 V at 25 °C. Pt(s)H,(g, 0.789 atm) | H(aq, ?M) || Cd²+ (aq, 1.00 M) Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, Eº, are 2 H+ (aq) + 24 H, (g) E° = 0.00 V Cd²+ (aq) + 2e - Cd(s) E = -0.403 V Calculate the H+ concentration. [H+] =
For the cell shown, the measured cell potential, Ecell, is -0.3707 V at 25°C. Pt(s) H(8,...

For the cell shown, the measured cell potential, Ecell, is -0.3707 V at 25°C. Pt(s) H(8, 0.857 atm) H+ (aq.? M) || Cd2+ (aq, 1.00 M) | Cd() The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, Eº, are 2 H+ (aq) + 2e- H,(g) E° = 0.00 V Ca2+ (aq) + 2e Cd(s) E = -0.403 V Calculate the H* concentration.

For the cell shown, the measured cell potential, Ecell, is -0.3687 V at 25 °C. Pt(s)...

For the cell shown, the measured cell potential, Ecell, is -0.3687 V at 25 °C. Pt(s) | H, (8,0.873 atm) | H+ (aq, ? M) || Cd2+ (aq, 1.00 M) | Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, Eº, are 2 H+ (aq) + 2e → H, (g) E° = 0.00 v Cd2+ (aq) + 2e- Cd(s) E° = -0.403 V Calculate the H+ concentration. [H+) = .0588 M Incorrect
For the cell shown, the measured cell potential, Ecell, is -0.3629 V at 25 °C. Pt(s)...

For the cell shown, the measured cell potential, Ecell, is -0.3629 V at 25 °C. Pt(s) | H,(g, 0.707 atm) | H+ (aq, ? M) || Cd2+ (aq, 1.00 M)| Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, Eº, are 2 H+ (aq) + 2e - H (9) E° = 0.00 V Cd2+ (aq) + 2e — Cd(s) E' = -0.403 V Calculate the H+ concentration. M = 0.031 Incorrect
For the cell shown, the measured cell potential, Ecell, is -0.3709 V at 25 °C. Pt(s)...

For the cell shown, the measured cell potential, Ecell, is -0.3709 V at 25 °C. Pt(s) | H,(g, 0.877 atm) | H+ (aq,? M) || Cd2+ (aq, 1.00 M) Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, Eº, are 2 H+ (aq) + 2e H (9) E' = 0.00 V Cd2+ (aq) + 2e - Cd(s) E' = -0.403 V Calculate the H concentration. [HT] = M

20) For the cell shown, the measured cell potential, ?cell, is −0.3541 V at 25 °C....

20) For the cell shown, the measured cell potential, ?cell, is −0.3541 V at 25 °C. Pt(s) | H2(g,0.899 atm) | H+(aq,? M) || Cd2+(aq,1.00 M) | Cd(s) The balanced reduction half-reactions for the cell, and their respective standard reduction potential values, ?o, are 2H+(aq)+2e−⟶H2(g)?o=0.00 V Cd2+(aq)+2e−⟶Cd(s)?o=−0.403 V Calculate the H+ concentration.
