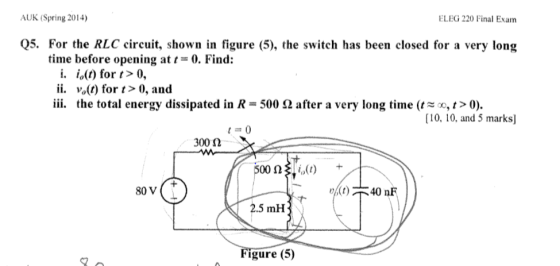

AUK (Spring 2014) ELEG 220 Final Exam Q5. For the RLC circuit, shown in figure (5), the switch has been closed for a ve...

Question

Question

AUK (Spring 2014) ELEG 220 Final Exam Q5. For the RLC circuit, shown in figure (5), the switch has been closed for a very lon

engineering Electrical-Engineering

Answer 1

Answer #1

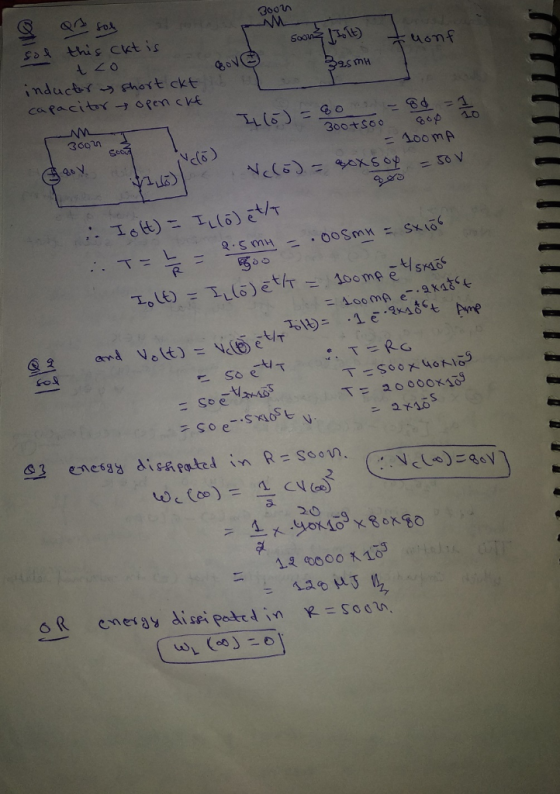

this ckt is es mH induct-Y うghost ckt 36011 = .100 mA vc(3) 丐 an Velt)E 2O hi

Answer 2

Similar Homework Help Questions

2. The switch in the circuit shown in Figure 1 has been in position 'a' for...

2. The switch in the circuit shown in Figure 1 has been in position 'a' for a long time. At t=0, the switch moves instantaneously to position b. a) Find the numerical expression for io(t) when t > 0. b) Find the numerical expression for volt) fort > 0 1 = 0 b! 51 602 45 A 2150 vo 20 10 mH 240 V 1
7.14 The switch in the circuit in Fig. P7.14 has been PSPICE closed for a long...

7.14 The switch in the circuit in Fig. P7.14 has been PSPICE closed for a long time before opening a ULMvot) fort0. t t 0. Find Figure P7.14 2.5 vo 320 mH 60 V
The switch in the circuit has been closed for a long time before it is opened at t = 0

The switch in the circuit has been closed for a long time before it is opened at t = 0a) io(t) for t ≥ 0+b) vo(t) for t ≥ 0+, where vo is the voltage drop across the 54 Ω resistor.c) The total energy stored in the 0.5 H inductor that is dissipated in the 26 Ω resistor

The switch in the circuit shown has been closed for a long time. The switch opens...

The switch in the circuit shown has been closed for a long time. The switch opens at t=0. Find vo(t). Solve the circuit in time domain. 10022 1002 w 802 M 2012 + 25 uF 200 mH 100 V T=0
3. The switch has been open a long time before closing at t = 0. Find...

3. The switch has been open a long time before closing at t = 0. Find the initial and final energy stored in the inductor. Determine i(t) and v(t) fort > 0*. t = 0 1092 to i(t) 2A @ 500 FT VIC 30.4 mH 2.503 14 4. The switch has been closed a long time before opening at t = 0. Find il(t) and vc(t) fort > 0*. 2012 t = 0 vc(t) 4092 4uF 60V 3 10 mH...
In the following circuit, the switch has been closed for a long time. At t- o...

In the following circuit, the switch has been closed for a long time. At t- o s it moves to open position. What is i(t) for t >0 s? 4. t 0 2 mH 4k Ω 12V (+

circuits urgent help Q3. In the circuit in Figure 3, the switch S has been open...

circuits urgent help Q3. In the circuit in Figure 3, the switch S has been open for a very long time. It is closed at t= 0. (a) Find the current i(t) through the inductor for t2 0. (15 pts) (b) Find the voltage volt) for all t (i.e. for -- <t<5). (10 pts) 102 20 2 Vo t = 0 S + 50 V 0.100 50 mH
7) (12 pts): The switch in caircuit has been closed for a long time before opening...

7) (12 pts): The switch in caircuit has been closed for a long time before opening att-0. Find i(t), vt) and islt) for t 20 20 is. 40 Ω 120Ç 600 250 mH v, 1000 60Ω
(3) The RL circuit shown in Figure 3 has a switch that is closed att 0....

(3) The RL circuit shown in Figure 3 has a switch that is closed att 0. Assume that the circuit has reached steady state prior to the switch closing. You are given R1 1 kQ, R2-10 kQ, R3-R4-100 k2, L 10 mH, Vs-5 V. (a) [15 pts] Calculate the steady-state inductor current before the switch is closed (b) [16 pts] Give the differential equation as an expression of the inductor current fort>0 (i.e. write the differential equation) (c) 13 pts]...

4. Find i(t) in the circuit shown in Figure 4 fort>0. Assume that the switch has...

4. Find i(t) in the circuit shown in Figure 4 fort>0. Assume that the switch has been open for a very long time when t < 0. (25 points) t=0 29) 2? 3? i(t) Figure 4
