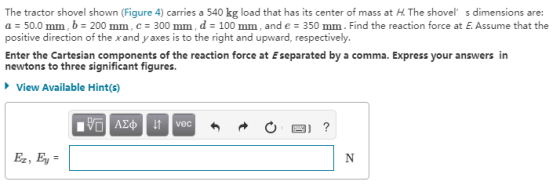

The tractor shovel shown (Figure 4) carries a 540 kg load that has its center of mass at H. The shovel s dimensions are: α = 50.0 mm , b 200 mm, c = 300 mm , d = 100 mm , and e = 350 mm . Find the reaction force at E Assume that the positive direction of the xand y axes is to the right and upward, respectively. Enter the Cartesian components of the reaction force at Eseparated by a comma. Express your answers in newtons to three significant figures. View Available Hint(s) Ex, Ey
Homework Answers

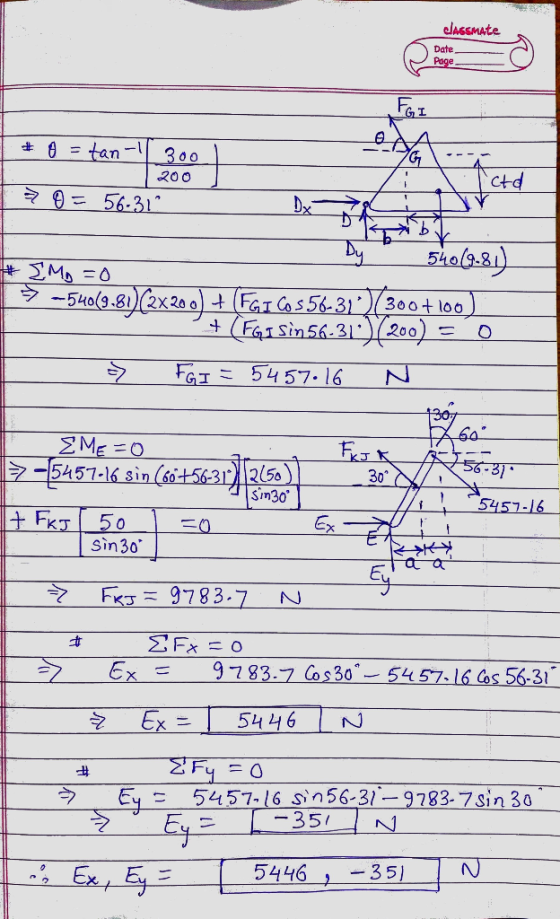

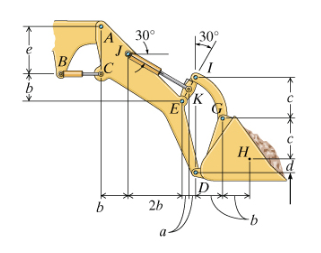

Add Answer to:
30° A30 2 The tractor shovel shown (Figure 4) carries a 540 kg load that has its center of mass at H. The shovel s dime...
To develop the ability to break a frame or machine down into subsystems and to determine...
To develop the ability to break a frame or machine down into subsystems and to determine the forces developed at internal pin connections Part D A tractor shovel Frames and machines are systems of pin-connected, multiforce members. Frames are designed to support loads, whereas machines are designed to transmiltl o alter the effects of loads. For a frame or machine to be in equiibrium, each member of the trame or machine system must be in equilibrium. Free-body diagrams of the...
The two 4- lb rods EF and HI are fixed (welded) to the link AC at E . At the instant θ = 30 ∘ link AB has an angular velocity ω = 5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in (Figure...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
To develop the ability to break a frame or machine down into subsystems and to determine the forces developed at internal pin connections Part D A tractor shovel Frames and machines are systems of pin-connected, multiforce members. Frames are designed to support loads, whereas machines are designed to transmiltl o alter the effects of loads. For a frame or machine to be in equiibrium, each member of the trame or machine system must be in equilibrium. Free-body diagrams of the...
The two 4- lb rods EF and HI are fixed (welded) to the link AC
at E . At the instant θ = 30 ∘ link AB has an angular velocity ω =
5 rad/s and an angular acceleration a = 8 rad/ s 2 as shown in
(Figure 1).
Part A
Determine the internal axial force Ex which
the bar AC exerts on FE at
E using scalar notation.
Express your answer to three significant figures and include the...
