A compound exhibits the following 13C NMR spectrum. o 220.16, 38.31, 23.31 Which of the compounds listed below w...

Question

Question

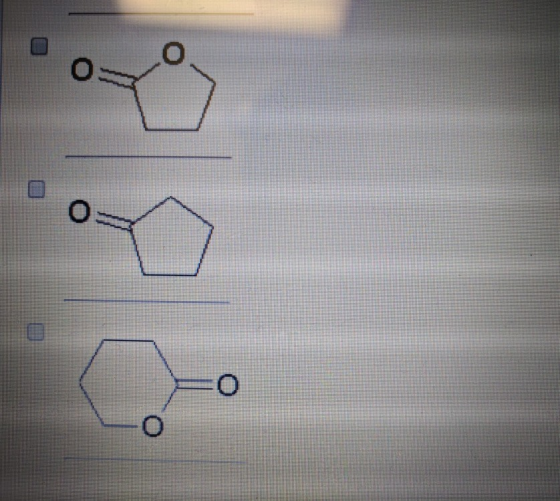

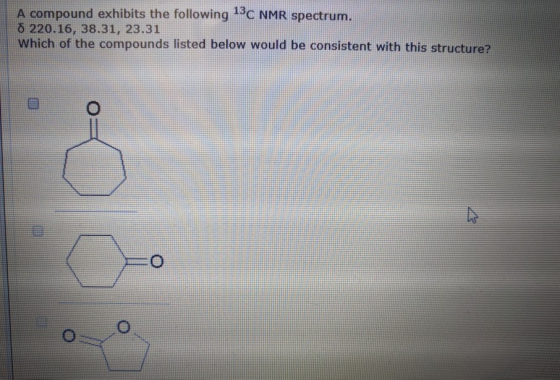

A compound exhibits the following 13C NMR spectrum. o 220.16, 38.31, 23.31 Which of the compounds listed below would be consi

science chemistry

Answer 1

Answer #1

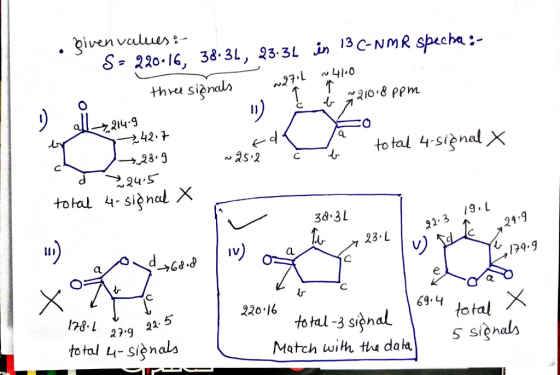

. Biven values: - S - 220:16, 38.36, 23.31 in 13 C-NMR specha:- three signals w271L < ~4100 é 210.8 ppm 0 all 2 214 9 *42.7 t

Answer 2
