Add Answer to:

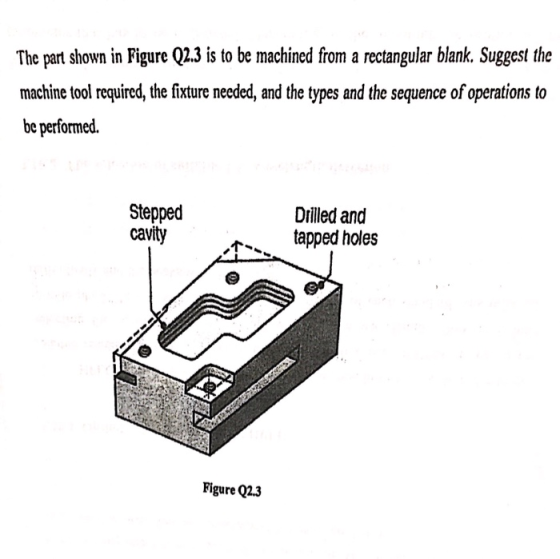

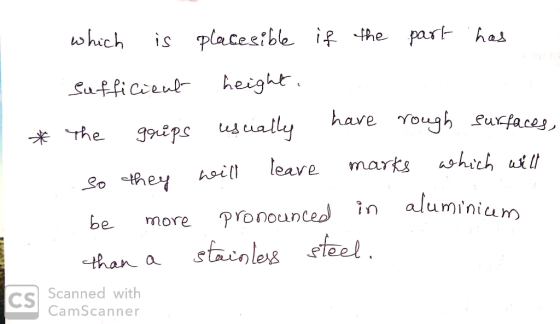

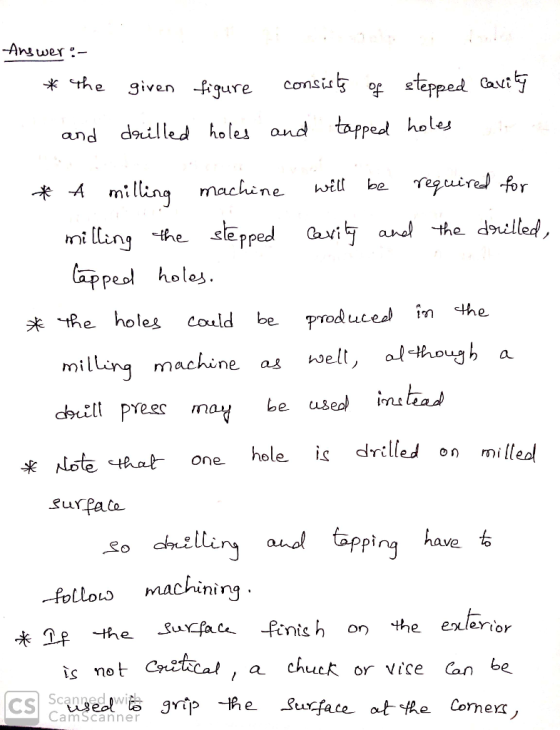

The part shown in Figure Q2.3 is to be machined from a rectangular blank. Suggest the machine tool required, the fi...
3. The accompanying illustration shows a cast-steel valve body (left) that is machined to the shape...
3. The accompanying illustration shows a cast-steel valve body (left) that is machined to the shape shown on the right. Identify the surfaces that are to be machined. What type of machine tool (Lathe, Drilling Machine, ... etc.) would be suitable to machine this part? What type of machining operations are involved and what is the sequence of these operations (try to present your answer using clear sketches). 20mm -200mm-- Casting After machining 5. The accompanying illustration shows a part...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Note...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Notes Set XoYs at the upper left- hand comer 2 Zo is the top of the part 3 The part is drilled by hoiding the biank against three pins by two clamps, See Figure 11.19 4 Stop the machine after using too 1 Hoid down the part by three 38 screws thru holes that have been dritied Remove three pins and two clamps...
Part of a single rectangular loop of wire with dimensions shown in the figure (Figure 1)...
Part of a single rectangular loop of wire with dimensions shown in the figure (Figure 1) is situated inside a region of uniform magnetic field of 0.336 T . The total resistance of the loop is 0.532 Ω . Calculate the force required to pull the loop from the field (to the right) at a constant velocity of 1.59 m/s . Neglect gravity.
Write a CNC part program to machine 15 mm thick aluminum part shown in the figure....
Write a CNC part program to machine 15 mm thick aluminum part shown in the figure. Use an absolute coordinate system. 140 R10 28 40 deep 45 45 155 70 40 $15 20 RIO TOOL CHANHE POINT All dimensions are in mm Three processes are needed to machine the part, 1) Drilling with cutting speed of 1000 rpm and feedrate 70 mm/min. 2) Side milling with cutting speed of 1400 rpm and feedrate 90 mm/min. 3) Slot milling with cutting...
Part of a single rectangular loop of wire with dimensions shown in the (Figure 1) is...
Part of a single rectangular loop of wire with dimensions shown in the (Figure 1) is situated inside a region of uniform magnetic field of 0.740 T . The total resistance of the loop is 0.780 Ω . Calculate the force required to pull the loop from the field (to the right) at a constant velocity of 5.20 m/s . Neglect gravity.
Ur thhe spécific for shear, u, and the specific heat of the material. Hence, temperature risc ene...
ur thhe spécific for shear, u, and the specific heat of the material. Hence, temperature risc ene machining materials with high strengt cates. The temperature rise at the tool-chip interface is, of course, also a fiu cocfficient of friction. Flank wear (see Section 8.3 and Fig. 8.20a) isction of source of heat, caused by rubbing of the tool on the machined surface. those of the workpiece. generated in the shear plane is a functioll UI material. Hence, temperature rise is...
Create a cause and effect diagram for the following case: Case Study Eastern Gear,Inc.: Job Shop...
Create a cause and effect diagram for the following
case:
Case Study Eastern Gear,Inc.: Job Shop Eastern Gear, Inc., in Philadelphia, Pennsylvania, is a manufacturer of custom-made gears ranging in weight from a few ounces to over 50 pounds. The gears are made of different metals, depending on the customer's requirements. Over the past year, 40 different types of steel and brass alloys have been used as raw materials. See Exhibit 1 for details. be necessary to stop production and...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated sludge operation that adversely affect effluent quality with origins in the engineering, hydraulic and microbiological components of the process. The real "heart" of the activated sludge system is the development and maintenance of a mixed microbial culture (activated sludge) that treats wastewater and which can be managed. One definition of a wastewater treatment plant operator is a "bug farmer", one who controls the aeration...
3. The accompanying illustration shows a cast-steel valve body (left) that is machined to the shape shown on the right. Identify the surfaces that are to be machined. What type of machine tool (Lathe, Drilling Machine, ... etc.) would be suitable to machine this part? What type of machining operations are involved and what is the sequence of these operations (try to present your answer using clear sketches). 20mm -200mm-- Casting After machining 5. The accompanying illustration shows a part...
50x40 chame 2) piace Figure 11.18 Print and tool paths for producing the part for 11.1 Setup Notes Set XoYs at the upper left- hand comer 2 Zo is the top of the part 3 The part is drilled by hoiding the biank against three pins by two clamps, See Figure 11.19 4 Stop the machine after using too 1 Hoid down the part by three 38 screws thru holes that have been dritied Remove three pins and two clamps...
Write a CNC part program to machine 15 mm thick aluminum part shown in the figure. Use an absolute coordinate system. 140 R10 28 40 deep 45 45 155 70 40 $15 20 RIO TOOL CHANHE POINT All dimensions are in mm Three processes are needed to machine the part, 1) Drilling with cutting speed of 1000 rpm and feedrate 70 mm/min. 2) Side milling with cutting speed of 1400 rpm and feedrate 90 mm/min. 3) Slot milling with cutting...
ur thhe spécific for shear, u, and the specific heat of the material. Hence, temperature risc ene machining materials with high strengt cates. The temperature rise at the tool-chip interface is, of course, also a fiu cocfficient of friction. Flank wear (see Section 8.3 and Fig. 8.20a) isction of source of heat, caused by rubbing of the tool on the machined surface. those of the workpiece. generated in the shear plane is a functioll UI material. Hence, temperature rise is...
Create a cause and effect diagram for the following
case:
Case Study Eastern Gear,Inc.: Job Shop Eastern Gear, Inc., in Philadelphia, Pennsylvania, is a manufacturer of custom-made gears ranging in weight from a few ounces to over 50 pounds. The gears are made of different metals, depending on the customer's requirements. Over the past year, 40 different types of steel and brass alloys have been used as raw materials. See Exhibit 1 for details. be necessary to stop production and...
