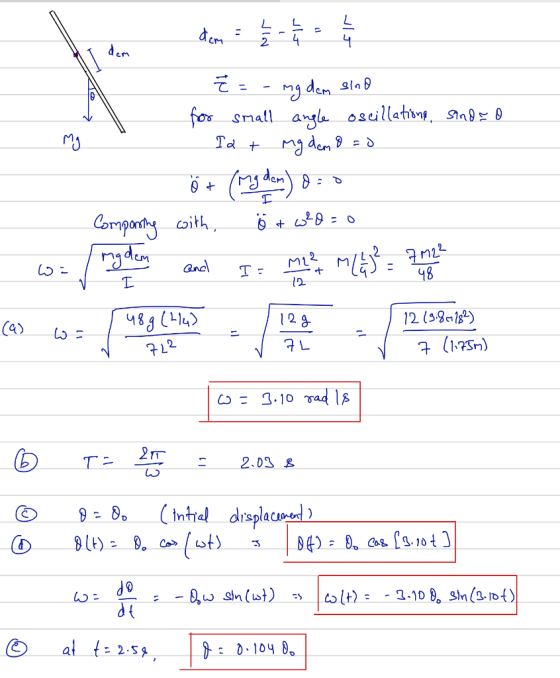

a pendulum consist of a uniform bar with a pivot (1/4)L from the top. Mass is 45kg. Length is 1.75m a. find w b. find T...
a pendulum consist of a uniform bar with a pivot (1/4)L from the top. Mass is 45kg. Length is 1.75m
a. find w
b. find T
c.Find θ
d. find θ(t), w(t)
e. find θ(t=2.5s)
Homework Answers
Add Answer to:
a pendulum consist of a uniform bar with a pivot (1/4)L from the top. Mass is 45kg. Length is 1.75m a. find w b. find T...
