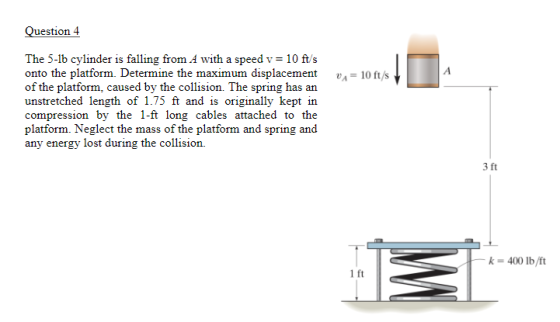

please draw any relevant free body diagrams in addition. Question 4 The 5-lb cylinder is falling from A with a speed v 1...

Question

Question

please draw any relevant free body diagrams in addition.

engineering Civil-Engineering

Answer 1

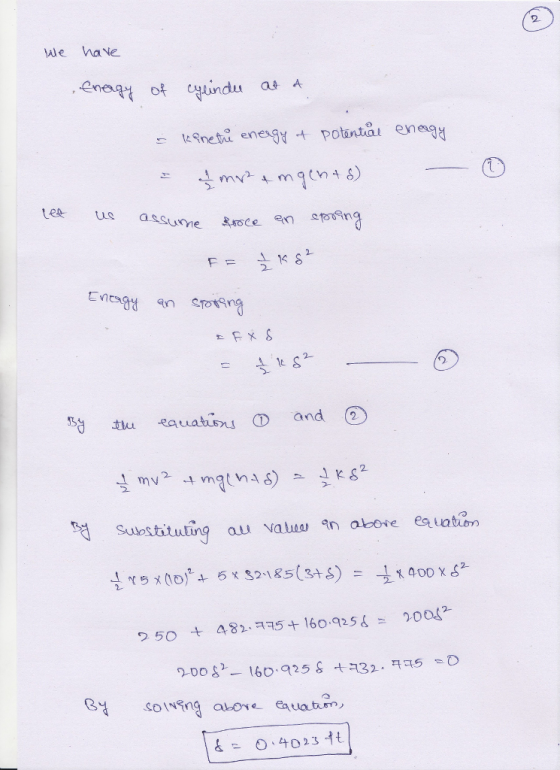

Answer #1

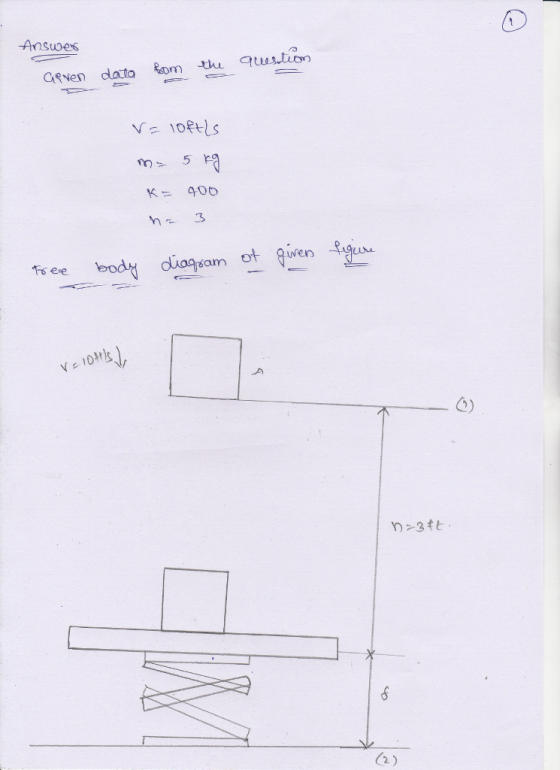

Ansoes GNen oata Rom th ustuon ts eve bod ein

Answer 2

Similar Homework Help Questions

Only one try left. Thought I knew it. Please use 5.8 lb. The 5.8-lb cylinder is...

Only one try left. Thought I knew it. Please use 5.8 lb. The 5.8-lb cylinder is falling from A with a speed vA 10 ft/s onto the platform. The spring has an unstretched length of 1.75 ft and is originally kept in compression by the 1-ft long cables attached to the platform. Neglect the mass of the platform and spring and any energy lost during the collision. (Figure 1) ▼ Part A Determine the maximum displacement of the platform, caused...
Please draw any relevant free body diagrams. Question 6 Two smooth billiard balls A and B have an equal mass of m-200g....

Please draw any relevant free body diagrams. Question 6 Two smooth billiard balls A and B have an equal mass of m-200g. If A strikes B with a velocity of vAI 2m/s as shown, determine the final velocities just after the collision. The coefficient of restitution is e 0.75 (vA 40°
Please draw any relevant free body diagrams Question7 At the given instant member AB has the angular motions shown. Dete...

Please draw any relevant free body diagrams Question7 At the given instant member AB has the angular motions shown. Determine the velocity and acceleration of the slider block C at this instant. 7 in 3 rad/s 2 rade 5 in.

Please draw any relevant free body diagrams. Question 5 900 m/s The 200-g projectile is fired with a velocity of 900 m/s...

Please draw any relevant free body diagrams. Question 5 900 m/s The 200-g projectile is fired with a velocity of 900 m/s towards the center of the 15-kg wooden block, which rests on a rough surface. If the projectile penetrates and emerges from the block with a velocity of 300 m/s, determine the velocity of the block just after the projectile emerges. How long does the block slide on the rough surface, after the projectile emerges, before it comes to...
