A converging lens of 15cm focal length is placed on an optical bench that is 120cm long. An object fixed at 0.0cm and s...

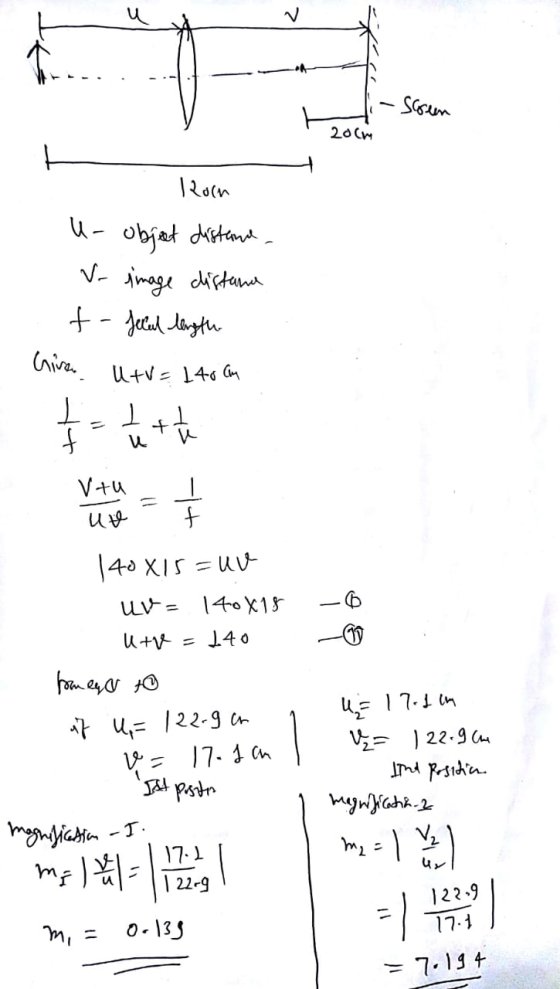

- A converging lens of 15cm focal length is placed on an optical
bench that is 120cm long. An object fixed at 0.0cm and screen is
placed at 140.0 cm.
- Measuring from the object end of the bench, determine the two positions of the lens for which an image will be focused on the screen.
- Find all magnification in each case.
Homework Answers
Add Answer to:
A converging lens of 15cm focal length is placed on an optical bench that is 120cm long. An object fixed at 0.0cm and s...
A converging lens of 15 cm focal length is placed on an optical bench that is...
A converging lens of 15 cm focal length is placed on an optical bench that is 120 cm long. An object is fixed at 0.0 cm and a screen placed at 120 cm. a) Measuring from the object end of the bench, determine two positions of the lens for which an image will be focused on the screen. b) Find the magnification in each case.
gibly drawn to scale ray diagrams showing h ation ng configuration: converging lens of 15em fixed focal length em in length. An object is placed at 0.0 em, can be detected is placed somewhere...
gibly drawn to scale ray diagrams showing h ation ng configuration: converging lens of 15em fixed focal length em in length. An object is placed at 0.0 em, can be detected is placed somewhere on an optical bench of 240 and a screen is placed where ever a focused image Use the illustrations on the following pages to construct one ray diagram for each of the following situations, using the basic configuration given above. Situation a) Measuring from the object...
A 2.0 cm tall object is 15cm in front of a converging lens whose focal length...
A 2.0 cm tall object is 15cm in front of a converging lens whose focal length is 20 cm. a. what is the image distance? b. what is the magnification? c. what is the height of the image?
An object is placed 19 cm to the left of a converging lens of focal length...
An object is placed 19 cm to the left of a converging lens of focal length 29 cm. A diverging lens of focal length 8 cm is 25 cm to the right of the converging lens. Find the position and magnification of the final image.
An object is placed to the left of a converging lens of focal length f =...
An object is placed to the left of a converging lens of focal length f = 30 cm, such that the object-to-image distance is 7 cm. Find the magnification.
An object is placed to the left of a converging lens of focal length f =...
An object is placed to the left of a converging lens of focal length f = 30 cm, such that the object-to-image distance is 7.5 cm. Find the magnification.
An object is placed in front of a converging lens with a focal length of 21.2...
An object is placed in front of a converging lens with a focal length of 21.2 cm. For each object distance, find the image distance and the magnification. Describe each image. (a) 42.4 cm: location cm magnification (b) 10.6 cm: location cm magnification
A diverging lens of focal length −17cm and a converging lens of focal length 15cm are...
A diverging lens of focal length −17cm and a converging lens of focal length 15cm are separated by 42cm. An object is placed 30cm to the left of the diverging lens. Compute the distance (with correct sign) the final image forms from the converging lens.
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length o...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
An object is placed 58.0 cm from a screen. Where should a converging lens of focal...
An object is placed 58.0 cm from a screen. Where should a converging lens of focal length 5.5 cm be placed to form a clear image on the screen? (Give your answer to at least one decimal place.) shorter distance ________ cm from the screen farther distance ________ cm from the screen Find the magnification of the lens. magnification if placed at the shorter distance ________ magnification if placed at the farther distance ________
A converging lens of 15 cm focal length is placed on an optical bench that is 120 cm long. An object is fixed at 0.0 cm and a screen placed at 120 cm. a) Measuring from the object end of the bench, determine two positions of the lens for which an image will be focused on the screen. b) Find the magnification in each case.
gibly drawn to scale ray diagrams showing h ation ng configuration: converging lens of 15em fixed focal length em in length. An object is placed at 0.0 em, can be detected is placed somewhere on an optical bench of 240 and a screen is placed where ever a focused image Use the illustrations on the following pages to construct one ray diagram for each of the following situations, using the basic configuration given above. Situation a) Measuring from the object...
An object 2.02 cm high is placed 40.2 cm to the left of a converging lens having a focal length of 30.5 cm. A diverging lens with a focal length of-20.0 cm is placed 110 cm to the right of the converging lens. (a) Determine the position of the final image. distance location to the right , of the diverging lens (b) Determine the magnification of the final image 128.4 Your response differs from the correct answer by more than...
An object is placed 58.0 cm from a screen. Where should a converging lens of focal length 5.5 cm be placed to form a clear image on the screen? (Give your answer to at least one decimal place.) shorter distance ________ cm from the screen farther distance ________ cm from the screen Find the magnification of the lens. magnification if placed at the shorter distance ________ magnification if placed at the farther distance ________
