Water flows out in all directions with the same speed from a sprinkler consisting of a perforated spherical shell fixed...

Question

Question

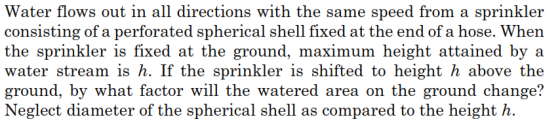

Water flows out in all directions with the same speed from a sprinkler consisting of a perforated spherical shell fixed at th

science physics

Answer 1

Answer #1

Suppose water comes out at 45°,

Relation between range and height in that case will be R = 4H

Area covered = π × 16 H^2

Now when sprinkler is shifted to a height H, let us find

Range becomes 2 times

And area becomes 4 times

Hence the area changes by a factor of 4.
