An object is 16.0cm to the left of a lens. The lens forms an image 36.0cm to the right of the lens. Part A What is th...

Question

Question

An object is 16.0cm to the left of a lens. The lens forms an image 36.0cm to the right of the lens.

Part A

What is the focal length of the lens?

Part B

Is the lens converging or diverging?

Part C

If the object is 8.00mm tall, how tall is the image?

Part D

Is it erect or inverted?

science physics

Answer 1

Answer #1

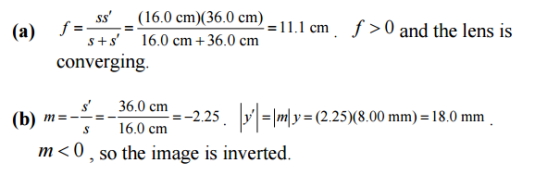

ss-_ (16.0cm)(36.0cm)-1 1.1 cm . s+s 16.0 cm +36.0 cm f > 0 and the lens is converging. (b) m=-=-160cm =-225, s 36.0 s 16.0

Answer 2
