it is considered a metal box with edge (a) perpendicular to the magnetic field B. in a second, the picture is transforme...

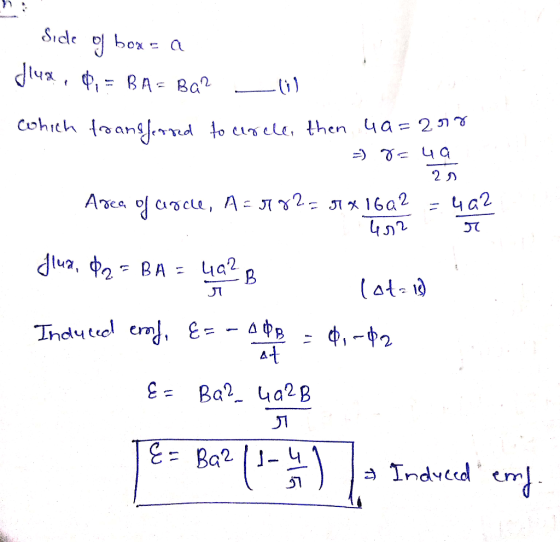

it is considered a metal box with edge (a) perpendicular to the magnetic field B. in a second, the picture is transformed into a circle always perpendicular to B, what is the induced fem?
Homework Answers
Add Answer to:
it is considered a metal box with edge (a) perpendicular to the magnetic field B. in a second, the picture is transforme...
A metal sheet moves perpendicular to a magnetic field of 0.080 T with a speed of...
A metal sheet moves perpendicular to a magnetic field of 0.080
T with a speed of 300 m/s. What is the strength of the induced
electric field across the width of the sheet?
the electrice pom. . positivex-direction negative x-direction 1 pts Question 8 A metal sheet moves perpendicular to a magnetic field of 0.080 T with a speed of 300 m/s. What is the strength of the induced electric field across the width of the sheet? 12 V/m 16...
a) A metal ring of 2.40 cm diameter moves into the magnetic field of an MRI...
a) A metal ring of 2.40 cm diameter moves into the magnetic field of an MRI scanner in 0.30 s from where the magnetic field is zero. The magnetic field in the MRI is 1.90 T and the plane of the ring is perpendicular to this field. Determine the voltage induced in the ring. b) If the ring in the problem above has a resistance of 0.009 Ω, what is the current induced in the ring, and in what direction...
A coil is in a perpendicular magnetic field that is described by the expression B =...
A coil is in a perpendicular magnetic field that is described by the expression B = 0.0500t + 0.0400t2. The 7.70 cm diameter coil has 45 turns and a resistance of 1.13 2. What is the induced current at time t = 3.00 s? Magnitude: . . B Crank In the figure provided, a magnet creates a magnetic field of strength 3.63 T. A hand crank generator consists of a semi circle with a radius of r = 5.50 cm...
A metal bar 1.5 m in length moves in a direction perpendicular to a uniform magnetic...
A metal bar 1.5 m in length moves in a direction perpendicular to a uniform magnetic field of magnitude 0.85T with a speed of 2.2 m/s. Determine the magnitude of the induced electric field in the metal bar.
A loop is oriented in external magnetic field as shown in the picture. A magnetic field...
A loop is oriented in external magnetic field as shown in the picture. A magnetic field suddenly vanishes. When viewed from north, what is the sense of the induced current in this loop as the field fades? N B W E S the induced current flows clockwise the induced current flows counterclockwise the current flows clockwise initially, and then it flows counterclockwise before stopping there is no induced current in this loop
Suppose a uniform magnetic field is perpendicular to the -* 11-in. page of your homework and...
Suppose a uniform magnetic field is perpendicular to the -* 11-in. page of your homework and a rectangular metal loop lies on the page. The loop's sides line up with the edges of the page. The magnetic field is changing with time as described by 8.3.13 x 10-), where is in testas and is in seconds. (a) is the magnetic field increasing or decreasing? Increasing decreasing (b) Find the magnitude of the emf induced in the loop.
A magnetic field is perpendicular to the plane of a single-turn circular coil. The magnitude of...
A magnetic field is perpendicular to the plane of a single-turn circular coil. The magnitude of the field is changing, so that an emf of 0.26 V and a current of 4.9 A are induced in the coil. The wire is then re-formed into a single-turn square coil, which is used in the same magnetic field (again perpendicular to the plane of the coil and with a magnitude changing at the same rate). What (a) emf and (b) current are...
A magnetic B field of strength 16 T is perpendicular to a conducting loop of wire...
A magnetic B field of strength 16 T is perpendicular to a conducting loop of wire measuring 0.6 square meters with 40 turns. If the B field is linearly reduced to zero in 6 s, then what is the magnitude of the induced emf voltage?
A magnetic B field of strength 4 T is perpendicular to a conducting loop of wire...
A magnetic B field of strength 4 T is perpendicular to a conducting loop of wire measuring 0.4 square meters with 50 turns. If the B field is linearly reduced to zero in 2 s, then what is the magnitude of the induced emf voltage? (in units of V)
When a current is induced by a changing magnetic field B1, the current always produces a...
When a current is induced by a changing magnetic field B1, the current always produces a second magnetic field B2 such that a. the magnetic fields add together and the total magnetic field increases in strength. b. the magnetic fields oppose each other. c. there is no way to tell the relationship between the magnetic fields. d. B2 is perpendicular to B1.
A metal sheet moves perpendicular to a magnetic field of 0.080
T with a speed of 300 m/s. What is the strength of the induced
electric field across the width of the sheet?
the electrice pom. . positivex-direction negative x-direction 1 pts Question 8 A metal sheet moves perpendicular to a magnetic field of 0.080 T with a speed of 300 m/s. What is the strength of the induced electric field across the width of the sheet? 12 V/m 16...
A coil is in a perpendicular magnetic field that is described by the expression B = 0.0500t + 0.0400t2. The 7.70 cm diameter coil has 45 turns and a resistance of 1.13 2. What is the induced current at time t = 3.00 s? Magnitude: . . B Crank In the figure provided, a magnet creates a magnetic field of strength 3.63 T. A hand crank generator consists of a semi circle with a radius of r = 5.50 cm...
A loop is oriented in external magnetic field as shown in the picture. A magnetic field suddenly vanishes. When viewed from north, what is the sense of the induced current in this loop as the field fades? N B W E S the induced current flows clockwise the induced current flows counterclockwise the current flows clockwise initially, and then it flows counterclockwise before stopping there is no induced current in this loop
Suppose a uniform magnetic field is perpendicular to the -* 11-in. page of your homework and a rectangular metal loop lies on the page. The loop's sides line up with the edges of the page. The magnetic field is changing with time as described by 8.3.13 x 10-), where is in testas and is in seconds. (a) is the magnetic field increasing or decreasing? Increasing decreasing (b) Find the magnitude of the emf induced in the loop.
