Question

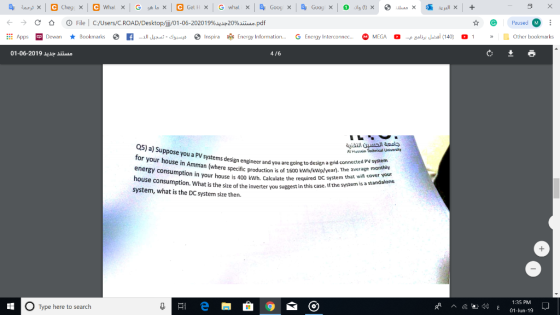

Paused File IC/Users/C.ROAD/Desktopǐル01-06-20201 9%m?20%aiimo.pdf d → ← » ·Other bookmarks O 1 e 즌aliy Jeal (140, MEGA O G Energy Interconnec Inspira แ Energy Information. -ds s Apps-Dewan ★ Bookmarks 01-06-2019i Q5) Al Hussein Technial University a) suppose you a PV systems design engineer and you are going to for your house in Amman (where specific production is of energy consumption in your house is 400 Calculate house consumption. What is the size of the inverter you suggest in system, what is the DC system size then. design a grid connected PV system 1600 kWh/kWp/year). The average monthly kWh. Calculate the required DC system that will cover your this case. If the system is a standalone 1:35 PM f ^脈4,44 t 01-kan-19 Type here to search

Answer 1

Given Specific production in Amman is 1600 kWh/kWp/ear.

Average Monthly consumption is 400 kWh.

Yearly Consumption is 12*400 = 4800 kWh/year.

Case 1 :- Considering Ideal System i.e DC to AC conversion efficiency is 100%

DC Capacity of PV System need to be installed is = 4800/1600 = 3 kWp

Inverter rating is 3 kW @ Unity power factor.

Case 2:- Considering DC to AC Conversion ratio is 80%.

Total Consumption of House in Amman is 4800/0.8 = 6000 kWh (DC Units)

DC Capacity of PV System is = 6000/1600 = 3.75 kWp

Inverter rating is 3 kW @ Unity power factor.

If the solar PV system to the house in Amman is stand alone

Case 1:- Lead Acid batteries are used 50% usable energy and DC to AC is 100% efficient

Total units required by House in Amman is = 4800/(0.5) = 9600 Units

DC Capacity of PV System need to be installed is = 9600/1600 = 6 kWp

Case 1:- Lithium Ion  batteries are used 80% usable energy and DC to AC is 100% efficient

Total units required by House in Amman is = 4800/(0.8) = 6000 Units

DC Capacity of PV System need to be installed is = 6000/1600 = 3.75 kWp
