matlab help, please



my code is here:
%% exercise2
%a
Fs = 8000; % sampling frequency
tn = 0:1/Fs:0.005; % here, bit duration is 0.005s instead of
1/300s
phi1 = 0; phi0 = 0; % phases of the sinusoid
x1 = cos(2*pi*1650*tn + phi1); % tone for binary 1
x0 = cos(2*pi*1850*tn + phi0); % tone for binary 0

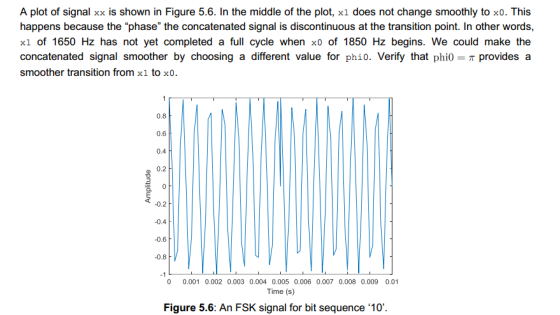

xx = [x1, x0]; % FSK signal for ¡°1,0¡±
tt = [tn, tn + 0.005]; % time
figure(1)
plot(tt, xx); % plot FSK signal

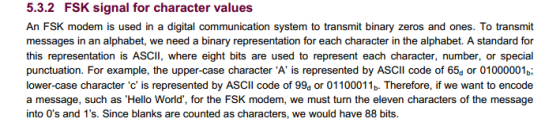

%% b
a= abs('DSP');
b = dec2bin(a,8);
c = b- '0';
Fs = 8000; % sampling frequency
tn = 0:1/Fs:0.005; % here, bit duration is 0.005s instead of
1/300s
phi1 = 0; phi0 = 0; % phases of the sinusoid
x1 = cos(2*pi*1650*tn + phi1); % tone for binary 1
x0 = cos(2*pi*1850*tn + phi0); % tone for binary 0
B = [c(1,:), c(2,:),c(3,:)];
X = [];
for i= 1:length(B)
if B(i)==1
X = [X,x1];
elseif B(i)==0
X = [X,x0];
end
end
T=[];
for i=0:length(B)-1
T=[T,tn+0.005*i];
end
figure(2)
plot(T,X)
Is it correct?
Fs =
8000; % sampling frequency
tn = 0:1/Fs:0.005; % here, bit duration is 0.005s instead of
1/300s
phi1 = 0; phi0 = 0; % phases of the sinusoid
x1 = cos(2*pi*1650*tn + phi1); % tone for binary 1
x0 = cos(2*pi*1850*tn + phi0); % tone for binary 0
xx = [x1, x0]; % FSK signal for ¡°1,0¡±
tt = [tn, tn + 0.005]; % time
figure(1)
plot(tt, xx); % plot FSK signal
%% b
a= abs('DSP');
b = dec2bin(a,8);
c = b- '0';
Fs = 8000; % sampling frequency
tn = 0:1/Fs:0.005; % here, bit duration is 0.005s instead of
1/300s
phi1 = 0; phi0 = 0; % phases of the sinusoid
x1 = cos(2*pi*1650*tn + phi1); % tone for binary 1
x0 = cos(2*pi*1850*tn + phi0); % tone for binary 0
B = [c(1,:), c(2,:),c(3,:)];
X = [];
for i= 1:length(B)
if B(i)==1
X = [X,x1];
elseif B(i)==0
X = [X,x0];
end
end
T=[];
for i=0:length(B)-1
T=[T,tn+0.005*i];
end
figure(2)
plot(T,X)
Is it correct?
Yes, your code is correct. And the best thing is that you have commented your code so,it's a good practice to carry on.
