Question
part a already solved.

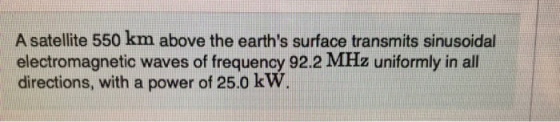

A satellite 550 km above the earths surface transmits sinusoidal electromagnetic waves of frequency 92.2 MHz uniformly in al

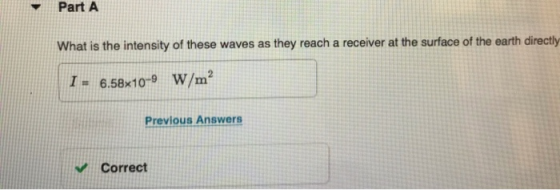

Part A What is the intensity of these waves as they reach a receiver at the surface of the earth directly I = 6.58x10-9 W/m²

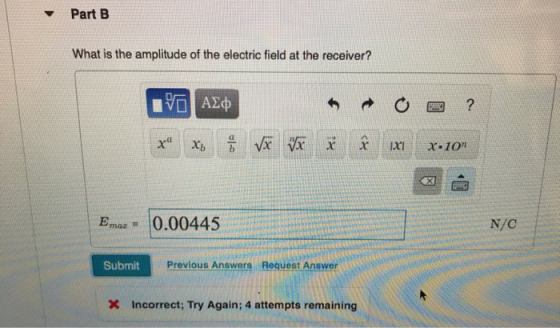

Part B What is the amplitude of the electric field at the receiver? IVO AO x X og Vĩ VA Ý om? Ý (XI x10 Emaz = 0.00445 SEN N

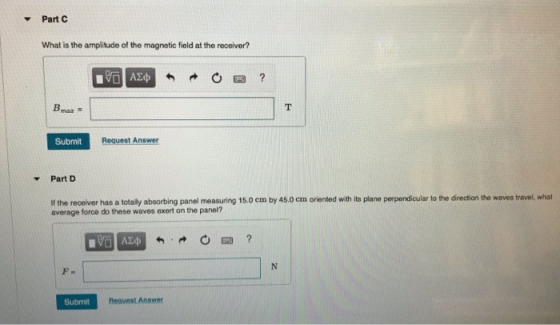

Part 6 What is the amplitude of the magnetic field at the receiver? IVO AED O ? B Submit Request Answer Part D If the receive
0 0
Add a comment Improve this question Transcribed image text
Answer #1

B)

Electric field, E = sqrt(2 I/e0 c)

E = sqrt(2 x 6.58 x 10^-9/8.85 x 10^-8 x 3 x 10^8)

E = 2.23 x 10^-3 N/C

C)

Magnetic field, B = E/c = (2.23 x 10^-3)/(3 x 10^8) = 7.42 x 10^-12 T

D)

Force, F = (6.58 x 10^-9/3 x 10^8)(0.15 x 0.45) = 1.48 x 10^-18 N

Comment in case any doubt please rate my answer....
