A 0.7kg flying pig travels in a circle hanging from a 0.8 m cord that makes an 11°. What is the pigs tangential velocity...

Question

Question

A 0.7kg flying pig travels in a circle hanging from a 0.8 m cord that makes an 11°. What is the pigs tangential velocity?

science physics

Answer 1

Answer #1

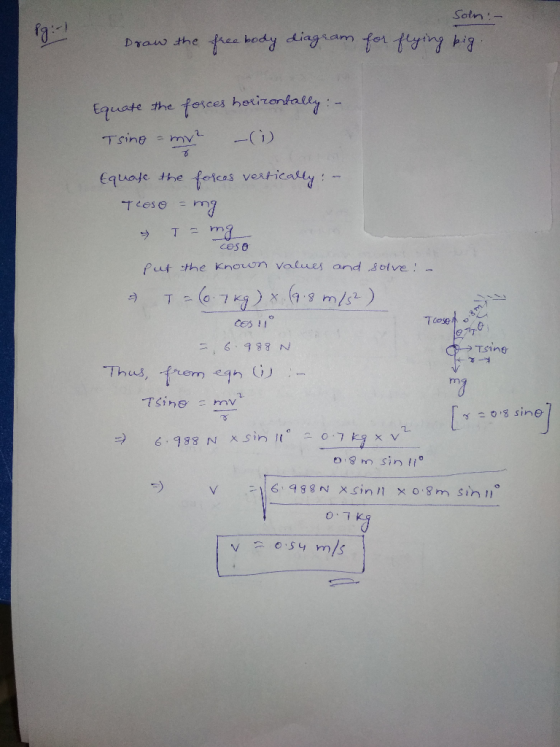

Soln :- Draw the free body diagram for flying big. Equate the forces horizontally: - Tsing - my? -(1) Equase the forces verti

Answer 2
