use simulink environment to rebuil the model of DC motor

R = 2
J=0.1
b= 3
Ke=2.3
Kt=1.54
V=1
L=0.01

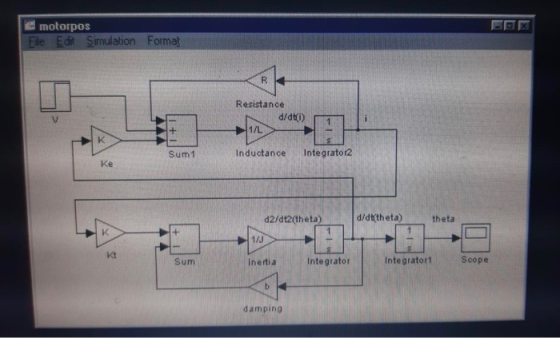

motorpos File Edit Simulation Format Resistance OAPP 1/L K Integrator2 Inductance Sum1 Ke d/dttheta) d2/dt2(theta) theta 1/J
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

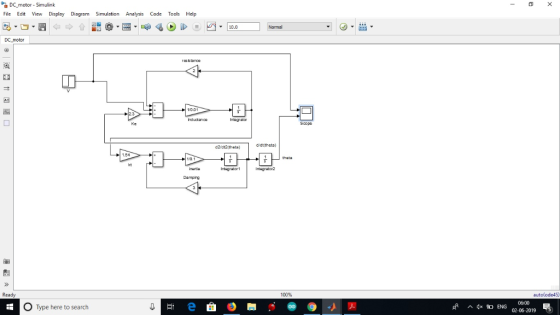

DC motor-Simulink X Simulation File Edit View Display Diagram Analysis Code Tools Help 10.0 Normal DC motor resistance A 1/00n.

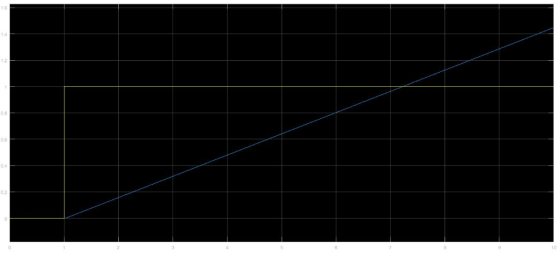

0 0
Add a comment
Know the answer?
Add Answer to:
use simulink environment to rebuil the model of DC motor R = 2 J=0.1 b= 3 Ke=2.3 Kt=1.54 V=1 L=0.01 motorpos File...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Using Approach 2 please. The basic electric circuit of a permanent-magnet DC motor and the free...

    Using Approach 2 please. The basic electric circuit of a permanent-magnet DC motor and the free body diagram of the load attached to it are shown below. be The parameters of this system are identified as follows: Moment of inertia of the system, J-001 kg.m" /s2 Damping constant of the mechanical system, b-0.1N.m.s Armature and motor constants. A. K. K, 0.01 N·m/Amp Electric resistance, R-1 ohm Electric inductance, L = 0.5 H For this system, the goal is to plot...
