Question
Find the chemical structure using the wave spectrum shown
Problem I1.3 40 Exact M.S. (E)- 84.0575 UVAmax-209 (E-16,000) 328 (E-50) FT-IR (NEAT) 20 3000 2000 WAVENUMBERS (CM) 1800 1200
0 0
Add a comment Improve this question Transcribed image text
Answer #1

13C NMR spectrum shows 5 peaks. Therefore, there are at least 5 carbon atoms in the compound.

The total integration value of 1H NMR spectrum adds up to = (3 + 2 + 1 + 1 + 1) = 8. Therefore, there are 8 hydrogen atoms in the molecule.

The doublet at ~9.2 ppm in 1H NMR spectrum and the peak at ~191 ppm in 13C NMR spectrum indicates the presence of an aldehyde group in the molecule.

Hence, the molecular formula of the compound = C5H8O

Exact mass, m/z = 84.06 (matches with the EI exact mass given)

Degree of unsaturation = (2C + 2 - H)/2

                                      = (2 x 5 + 2 - 8)/2

                                      = 2

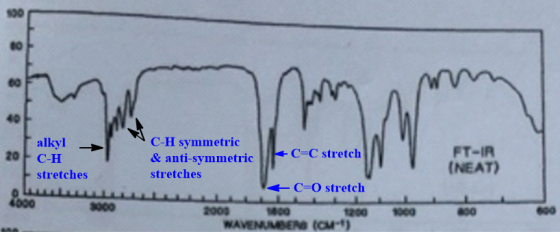

IR spectrum peak assignment:

ww 40 C-H symmetric & anti-symmetric alkyl 20 FT-IR (NEAT) C-C stretch C-H stretches stretches C=O stretch 4000 1200 2000 M00

13C NMR peak assignment:

D T B 13C NMR 62.3 MHz COCI CH3 E .C D B H2 192 191 190 CDCI 09 a 0 0 40 30 20 130 120 110 100 180 170 150 140 10 0 pem

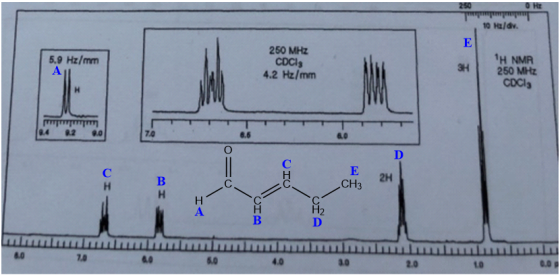

1H NMR peak assignment:

250 Jantaulalnd 10 Ha/dv. E 250 MHz CDCI 4.2 Hz/mm 1H NMR 250 MHz CDCI 5.9 Hz/mm 3H H Llulul 9.0 8.4 8.2 7.0 8.6 6.0 E C 2H B

High intensity (\epsilon = 16000) peak at mar = 209 nm indicates the T T transition in UV spectrum.

Low intensity (\epsilon = 50) peak at mar = 328 nm indicates the n T transition in UV spectrum.

Hence, the chemical structure that satisfies the given spectral data:

media%2Ffcf%2Ffcf267f4-2d5b-41f8-92b0-d5
