Homework Answers
Molecular formula C2H6O
Sites of unsaturation = 0
CH3-O-CH3
Dimethyl ether contain symmetrical methyl group which shows singlet around 3.6 ppm
Molecular formula C3H7Cl
Sites of unsaturation = 0
One doublet and one septet (neighboring six protons)
Therefore structure of the molecule is isopropyl chloride
(CH3)2CH-Cl
Molecular formula = C4H8Cl2O
Sites of unsaturation = 0
Two triplets (two CH2 neighboring to each other)
Molecular formula = C4H8O2
Sites of unsaturation = 1
One singlet, one triplet, one quartet
Therefore molecule is ethyl acetate or methyl propionate as both will contain the given peak pattern

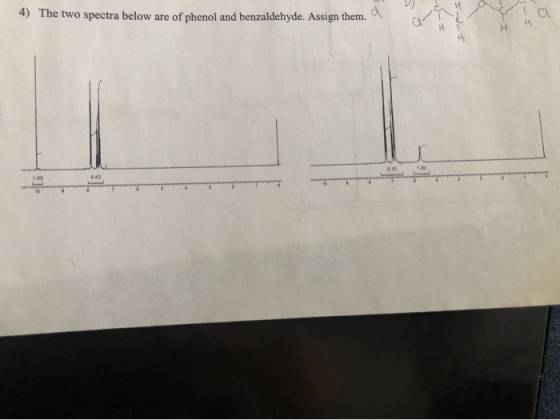

Out of given spectra first spectra contain following peak
10.0 (s) characteristic aldehyde peak
7.4-7.7 (m) aromatic peaks deshielded protons
Above data indicates compound is bezaldehyde
6.8-7.2 (m) aromatic peaks
5.8 (bs) presence of exchangeable protons (probably of -OH)
Therefore compound given is phenol
Add Answer to:

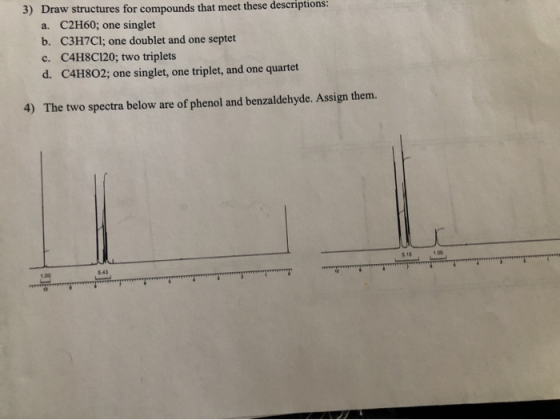

il UU UUUIUS Iur compounds that meet these descriptions: a. C2H60; one singlet b. C3H7Cl; one doublet and one sept...
