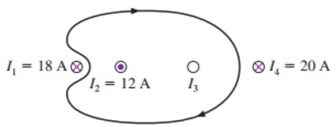

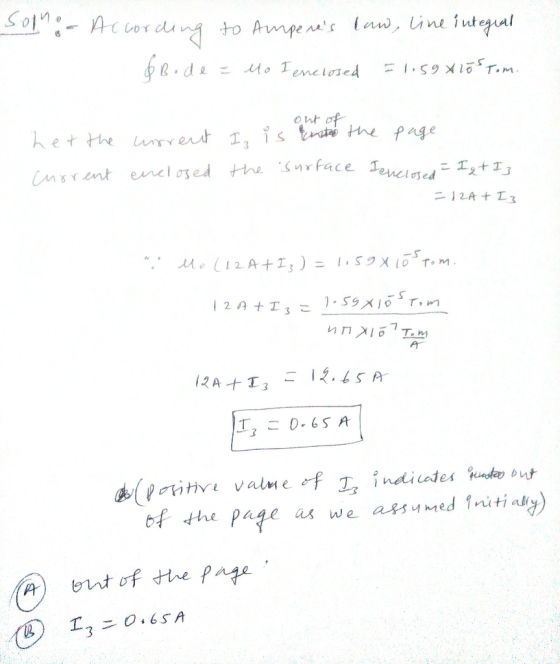

The value of the line integral around the closed path in the figure is 1.59x10-5 T m.
Part B
What is the magnitude of I3? Express your answer to two significant figures and include the appropriate units.
