Question

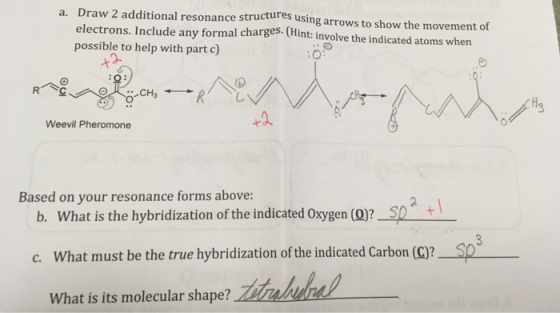

a. Draw 2 additional resonance structures using arrows to show the movement of electrons. Include any formal charges. (Hint: can someone help me pinpoint where i went wrong?
0 0
Add a comment Improve this question Transcribed image text
Answer #1

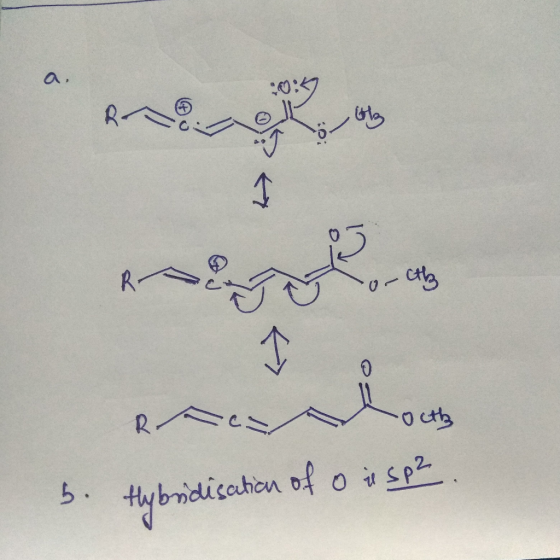

a. RA R- R C O ctb sp 5. tybridisahen of o

Add a comment
Know the answer?
Add Answer to:
can someone help me pinpoint where i went wrong? a. Draw 2 additional resonance structures using arrows to show the...
