1.Two small-sized objects are placed on a uniform 9.00kg plastic beam 3.00m long, as shown in the figure below (Figure...
1.Two small-sized objects are placed on a uniform 9.00kg plastic
beam 3.00m long, as shown in the figure below (Figure 1) . Assume
that m1 = 8.10kg and m2 = 7.35kg

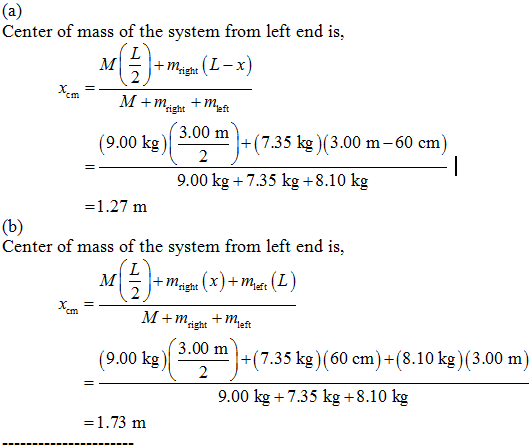

Part A: Find the location of the center of mass of this system by
setting x=0 at the left end of the beam.
Part B:Find the location of the center of mass of this system by
setting x=0 at the right end of the beam.

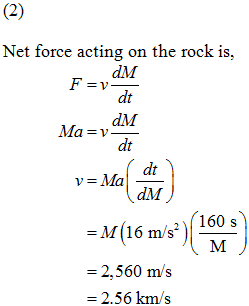

2.A rocket is fired in deep space, where gravity is negligible. In
the first second, it ejects 1/160 of its mass as exhaust gas and
has an acceleration of 16.0m/s2 .
What is the speed of the exhaust gas relative to the rocket? Need the Answer
Homework Answers
Add Answer to:
1.Two small-sized objects are placed on a uniform 9.00kg plastic
beam 3.00m long, as shown in the figure below (Figure...
Two small-sized objects are placed on a uniform 9.00 kg plastic beam 3.00 m long, as...
Two small-sized objects are placed on a uniform 9.00 kg plastic beam 3.00 m long, as shown in (Figure 1). Assume that mi = 3.25 kg and m2 = 7.60 kg Part A 0 at the left end of the beam. Find the location of the center of mass of this system by setting I Express your answer in meters. Templates Symbols Undo resilo Pese keyboard shortcuts help Tam In from the left-hand end of the beam Submit Request Answer...
In (Figure 1) a 6.00-m-long, uniform beam is hanging from a point 1.00 m to the...
In (Figure 1) a 6.00-m-long, uniform beam is hanging from a point 1.00 m to the right of its center. The beam weighs 160 N and makes an angle of 30.0 with the vertical. At the right- hand end of the beam a 100.0 N weight is hung; an unknown weight w hangs at the left end. Part A If the system is in equilibrium, what is w? You can ignore the thickness of the beam. Express your answer with...
Part A In the figure (Figure 1)a 6.00-m-long, uniform beam is hanging from a point 1.00m to the right of its center. Th...
Part A In the figure (Figure 1)a 6.00-m-long, uniform beam is hanging from a point 1.00m to the right of its center. The beam weighs 139 N and makes an angle of 30.00 with the vertical. At the right-hand end of the beam a concrete block weighing 100N is hung; an unknown weight w hangs at the other end. If the system is in equilibrium, what is w? You can ignore the thickness of the beam. IVO ALOM O 2...
A rigid, uniform, horizontal bar of mass m1 and length L is supported by two identical massless strings. (Figure 1) Bot...
A rigid, uniform, horizontal bar of mass m1 and length L is
supported by two identical massless strings. (Figure 1) Both
strings are vertical. String A is attached at a distance d<L/2
from the left end of the bar and is connected to the ceiling;
string B is attached to the left end of the bar and is connected to
the floor. A small block of mass m2 is supported against gravity by
the bar at a distance x from...
Two small-sized objects are placed on a uniform 9.00 kg plastic beam 3.00 m long, as shown in (Figure 1). Assume that mi = 3.25 kg and m2 = 7.60 kg Part A 0 at the left end of the beam. Find the location of the center of mass of this system by setting I Express your answer in meters. Templates Symbols Undo resilo Pese keyboard shortcuts help Tam In from the left-hand end of the beam Submit Request Answer...
In (Figure 1) a 6.00-m-long, uniform beam is hanging from a point 1.00 m to the right of its center. The beam weighs 160 N and makes an angle of 30.0 with the vertical. At the right- hand end of the beam a 100.0 N weight is hung; an unknown weight w hangs at the left end. Part A If the system is in equilibrium, what is w? You can ignore the thickness of the beam. Express your answer with...
Part A In the figure (Figure 1)a 6.00-m-long, uniform beam is hanging from a point 1.00m to the right of its center. The beam weighs 139 N and makes an angle of 30.00 with the vertical. At the right-hand end of the beam a concrete block weighing 100N is hung; an unknown weight w hangs at the other end. If the system is in equilibrium, what is w? You can ignore the thickness of the beam. IVO ALOM O 2...
A rigid, uniform, horizontal bar of mass m1 and length L is
supported by two identical massless strings. (Figure 1) Both
strings are vertical. String A is attached at a distance d<L/2
from the left end of the bar and is connected to the ceiling;
string B is attached to the left end of the bar and is connected to
the floor. A small block of mass m2 is supported against gravity by
the bar at a distance x from...
