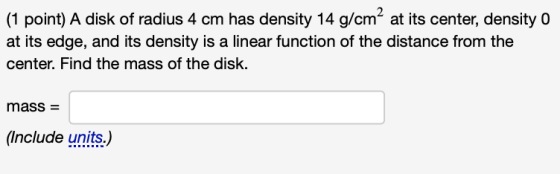

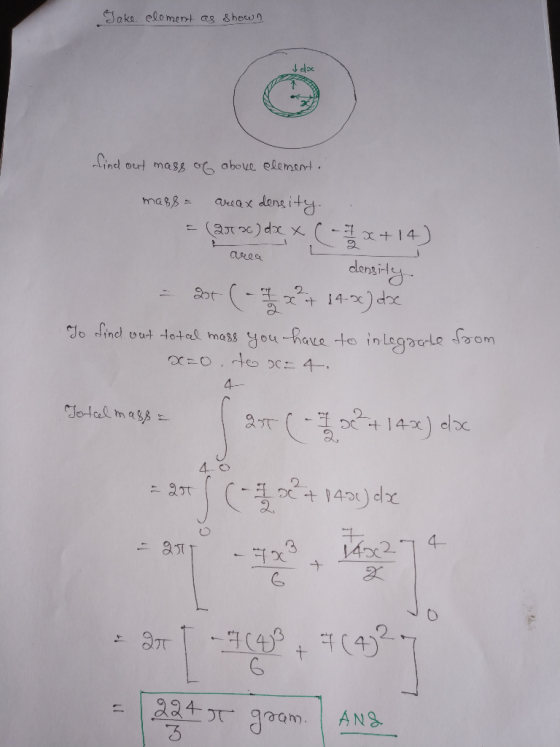

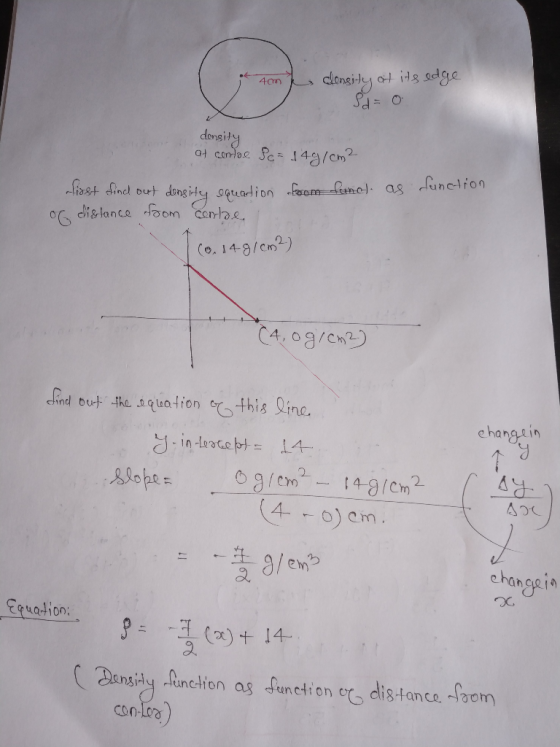

(1 point) A disk of radius 4 cm has density 14 g/cm2 at its center, density 0 at its edge, and its density is a linear...
A disk of radius 2.5 cm has a surface charge density of 5.3 µC/m2 on its...
A disk of radius 2.5 cm has a surface charge density of 5.3 µC/m2 on its upper face. What is the magnitude of the electric field produced by the disk at a point on its central axis at distance z = 11 cm from the disk?
A disk of radius 2.6 cm has a surface charge density of 6.9 μC/m2 on its...
A disk of radius 2.6 cm has a surface charge density of 6.9 μC/m2 on its upper face. What is the magnitude of the electric field produced by the disk at a point on its central axis at distance z = 12 cm from the disk?
A 10 kg disk with a hole in its center has a c value about its...
A 10 kg disk with a hole in its center has a c value about its center of 0.56 has an outer radius of 3.6 meters. A force of 5 Newtons is applied in the -x direction at the edge of the disk directly to the right of its center. Another force of 28 Newtons is applied directly above the center in the -x direction halfway between the center and edge of the disk. Lastly, a force of 15 Newtons...
A spherical shell centered at the origin has an inner radius of 4 cm and an outer radius of 6 cm.
A spherical shell centered at the origin has an inner radius of 4 cm and an outer radius of 6 cm. The density, δ, of the material increases linearly with the distance from the center. At the inner surface, δ = 9 g/cm3; at the outer surface, g = 13 g/cm3 (a) Using spherical coordinates, write the density, δ, as a function of radius, p. (Type rho for ρ) (b) Write an integral in spherical coordinates giving the mass of the shell (for...
A 6 kg disk with a hole in its center has a c value about its...
A 6 kg disk with a hole in its center has a c value about its
center of 0.57 has an outer radius of 3.5 meters. A force of 9
Newtons is applied in the -x direction at the edge of the disk
directly to the right of its center. Another force of 34 Newtons is
applied directly above the center in the -x direction halfway
between the center and edge of the disk. Lastly, a force of 15
Newtons...
A disk of mass m, = 70.0 g and radius r , = 4.50 cm slides...
A disk of mass m, = 70.0 g and radius r , = 4.50 cm slides on a frictionless sheet of ice with velocity v, where v = 12.00 m/s, as shown in a top-down view in figure (a) below. The edge of this disk just grazes the edge of a second disk in a glancing blow. The second disk has a mass m2 = 140 g, a radius r2 = 6.00 cm, and is initially at rest. As the...
34 A disk of radius 2.5 cm has a surface charge density of 5.3 C/m2 on...
34 A disk of radius 2.5 cm has a surface charge density of 5.3 C/m2 on its upper face. What is the magnitude of the electric field produced by the disk at a point on its central axis at distance z- 12 cm from the disk?
A compound disk of outside diameter 140 cm is made up of a uniform solid disk...
A compound disk of outside diameter 140 cm is made up of a uniform solid disk of radius 45.0 cmand area density 4.60 g/cm2 surrounded by a concentric ring of inner radius 45.0 cm , outer radius 70.0 cm , and area density 2.70 g/cm2 . Find the moment of inertia of this object about an axis perpendicular to the plane of the object and passing through its center.
A 14 g circular annulus of outer radius 40 cm and inner radius 27.6 cm makes...
A 14 g circular annulus of outer radius 40 cm and inner radius
27.6 cm makes small oscillations on an axle through its outer edge
perpendicular to its face.
(a) Find its frequency of oscillation.
(b) Find the frequency of oscillation of a thin ring of the same
outer radius and mass.
(c) Find the frequency of oscillation of a solid disc of the same
outer radius, thickness, and density.
2. + -16 points The Pendulum Ring A 14 g...
Problem 1 A 10 kg disk of radius R with a uniform mass density has a...
Problem 1
A 10 kg disk of radius R with a uniform mass density has a
square hole of side length s cut out of its
center. Suppose the disk radius R is 26 cm and the square side
length s is 6.5 cm.
1. Calculate the rotational inertia of the disk.
2. Draw a force diagram of the disk.
3. Write the force and torque equations that describe your
diagram.
4. Calculate the angular acceleration of the disk along...
A 6 kg disk with a hole in its center has a c value about its
center of 0.57 has an outer radius of 3.5 meters. A force of 9
Newtons is applied in the -x direction at the edge of the disk
directly to the right of its center. Another force of 34 Newtons is
applied directly above the center in the -x direction halfway
between the center and edge of the disk. Lastly, a force of 15
Newtons...
A disk of mass m, = 70.0 g and radius r , = 4.50 cm slides on a frictionless sheet of ice with velocity v, where v = 12.00 m/s, as shown in a top-down view in figure (a) below. The edge of this disk just grazes the edge of a second disk in a glancing blow. The second disk has a mass m2 = 140 g, a radius r2 = 6.00 cm, and is initially at rest. As the...
34 A disk of radius 2.5 cm has a surface charge density of 5.3 C/m2 on its upper face. What is the magnitude of the electric field produced by the disk at a point on its central axis at distance z- 12 cm from the disk?
A 14 g circular annulus of outer radius 40 cm and inner radius
27.6 cm makes small oscillations on an axle through its outer edge
perpendicular to its face.
(a) Find its frequency of oscillation.
(b) Find the frequency of oscillation of a thin ring of the same
outer radius and mass.
(c) Find the frequency of oscillation of a solid disc of the same
outer radius, thickness, and density.
2. + -16 points The Pendulum Ring A 14 g...
Problem 1
A 10 kg disk of radius R with a uniform mass density has a
square hole of side length s cut out of its
center. Suppose the disk radius R is 26 cm and the square side
length s is 6.5 cm.
1. Calculate the rotational inertia of the disk.
2. Draw a force diagram of the disk.
3. Write the force and torque equations that describe your
diagram.
4. Calculate the angular acceleration of the disk along...
