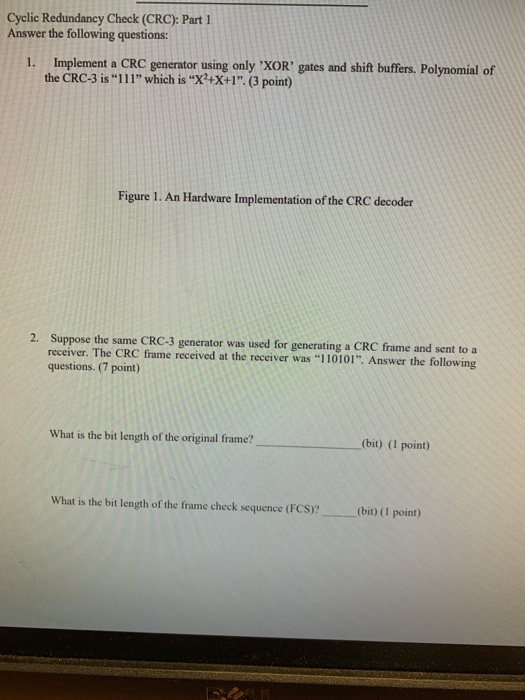

Cyclic Redundancy Check (CRC): Part 1 Answer the following questions: 1. Implement a CRC generator using only '...
Cyclic Redundancy Check (CRC) clic Redundancy Check (CRC): Part nswer the following questions: 1. Implement a CRC g...

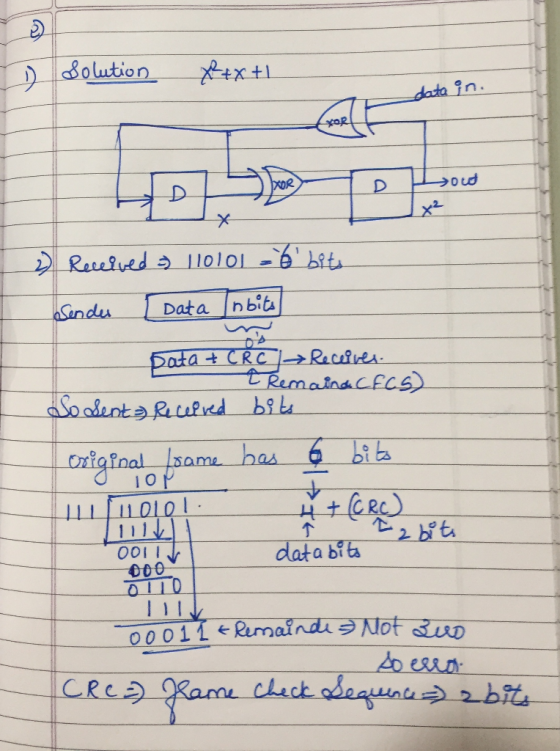

Cyclic Redundancy Check (CRC) clic Redundancy Check (CRC): Part nswer the following questions: 1. Implement a CRC generator using only 'XOR' gates and shift buffers. Polynomial of the CRC-3 is "111" which is "X+X+1". (3 point) Figure 1. An Hardware Implementation of the CRC decoder
Cyclic Redundancy Check (CRC) clic Redundancy Check (CRC): Part nswer the following questions: 1. Implement a CRC generator using only 'XOR' gates and shift buffers. Polynomial of the CRC-3 is "111" which is "X+X+1". (3...
A cyclic redundancy check (CRC) generator is based on what operation? a) Exclusive – OR b)...
A cyclic redundancy check (CRC) generator is based on what operation? a) Exclusive – OR b) MODULO-2-division c) Bit wise add with carry d) Twos complement addition
Consider the Cyclic Redundancy Check (CRC) algorithm. Suppose that the 4-bit generator (G) is 1001, that...
Consider the Cyclic Redundancy Check (CRC) algorithm. Suppose that the 4-bit generator (G) is 1001, that the data payload (D) is 10011010 and that r=3. What are the CRC bits (R) associated with the data payload of D = 10011010, given that r=3?
For the following encoder and decoder answer the following questions: 1) What will be the syndrome...
For the following encoder and decoder answer the following questions: 1) What will be the syndrome (S_29_15_0) bits when only bit q_0 is in error? 2)What will be the syndrome (S_2S_1 S_0) bits when only bit b_1 is in error? Sender Receiver Encoder Decoder Dataword 1, 2, 3, 4, Data word 2, 2, 2, 2 Accept Decision logic Discard Syndrome Generator Divisor d, d, d, do Shared Checker Remainder Unreliable transmission b, 626, 64/44 Codeword Codeword ri=a2+al+a0 rl=a3+a 2+al r2=a1+0+03...
