Depth = 90m g= 9.8m/s^2 Water density =1000kg/m^3 A) What is the Hydrostatic force on a 3m x 3m metal sheet laid flat? B...
Depth = 90m
g= 9.8m/s^2
Water density =1000kg/m^3

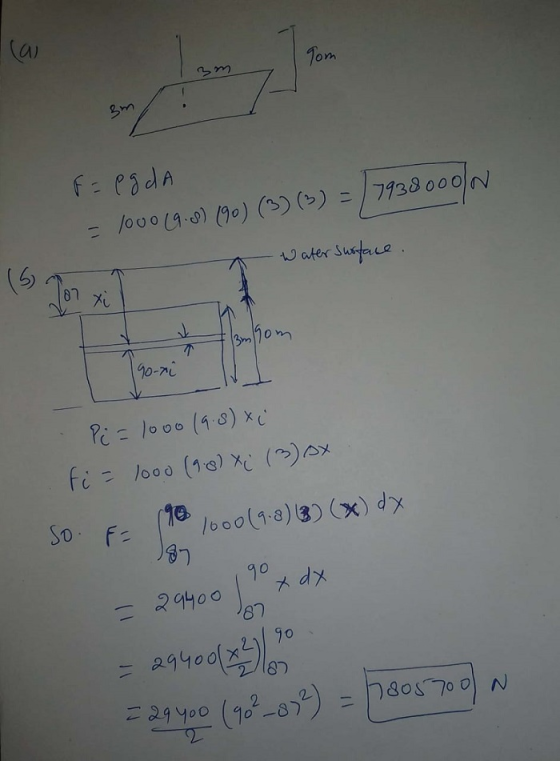

A) What is the Hydrostatic force on a 3m x 3m metal sheet laid flat?
B) What is the Hydrostatic force on that same sheet placed vertically (bottom edge at 90m)?
Homework Answers
Add Answer to:
Depth = 90m g= 9.8m/s^2 Water density =1000kg/m^3 A) What is the Hydrostatic force on a 3m x 3m metal sheet laid flat? B...
Determine the total force in KN acting on the bottom of the tank 0 X G...
Determine the total force in KN acting on the bottom of the
tank
0 X G 1Na 1 kn -Google Search Moran, Shapiro, Boettner, Bailey, Fundamentals of Engineering Thermodynamics, 9e Problem 1.036 51 The figure below shows a tank used pressure is 1 bar, the acceleration of gravity is s.8 m/s2, and the density of the water is 987.1 ka/m2 to collect rainwater having a diameter of 4 m. As shown in the figure, the depth of the tank varies...
Problem 3: A plane gate of uniform thickness holds back a depth of water as shown in the figure. The gate thickness is 2 m, the length L is equal to 3 m, and the angle 0 equals 30°. Determine a....
Problem 3: A plane gate of uniform thickness holds back a depth of water as shown in the figure. The gate thickness is 2 m, the length L is equal to 3 m, and the angle 0 equals 30°. Determine a. The average pressure on the gate. b. The hydrostatic force F applied to the gate and its components, vertical and horizontal c. Determine the volume of the "missing water" above the gate. What do you fincd interesting about this...
