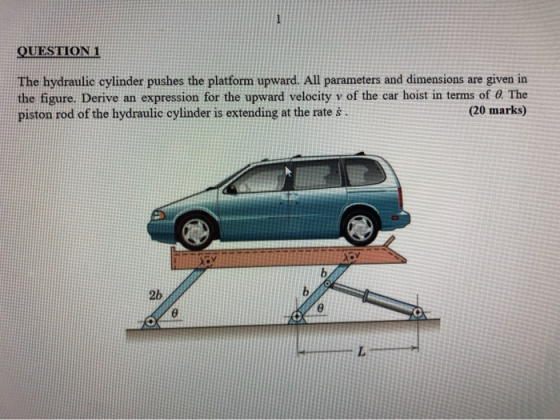

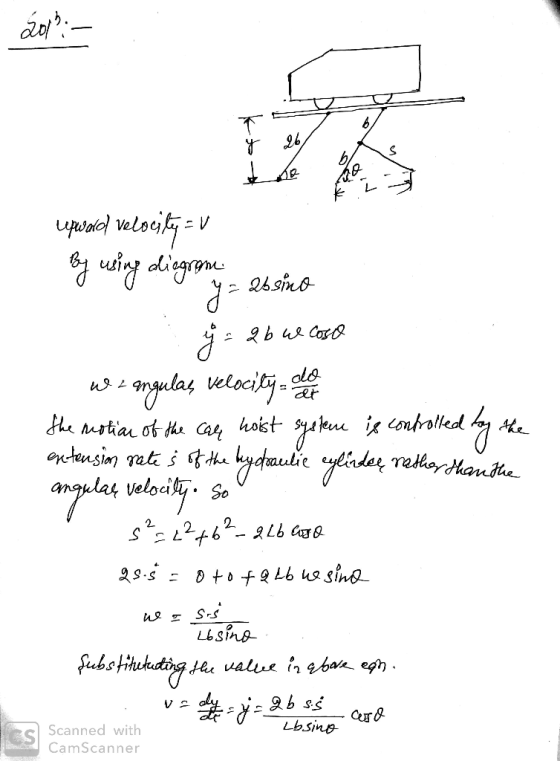

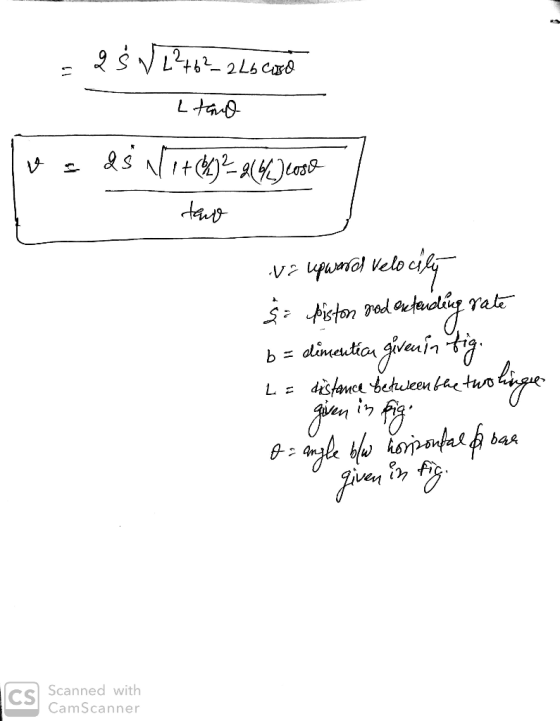

QUESTION 1 The hydraulic cylinder pushes the platform upward. All parameters and dimensions are given in the figure...
