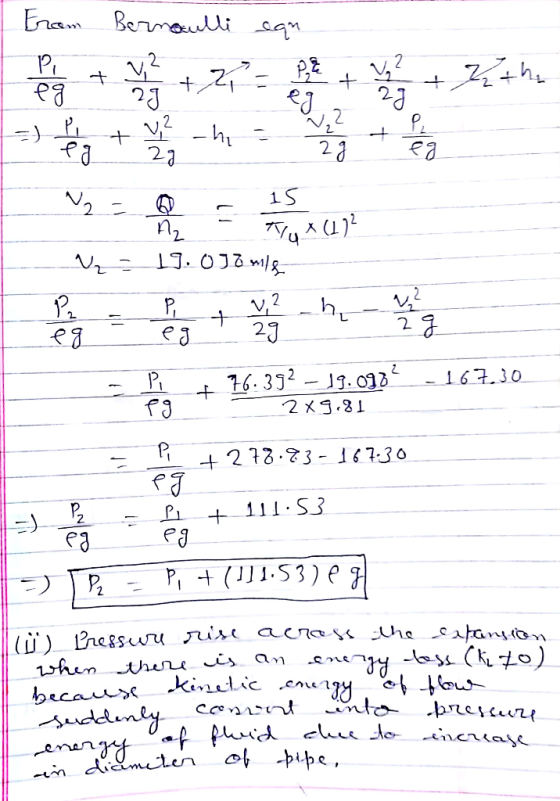

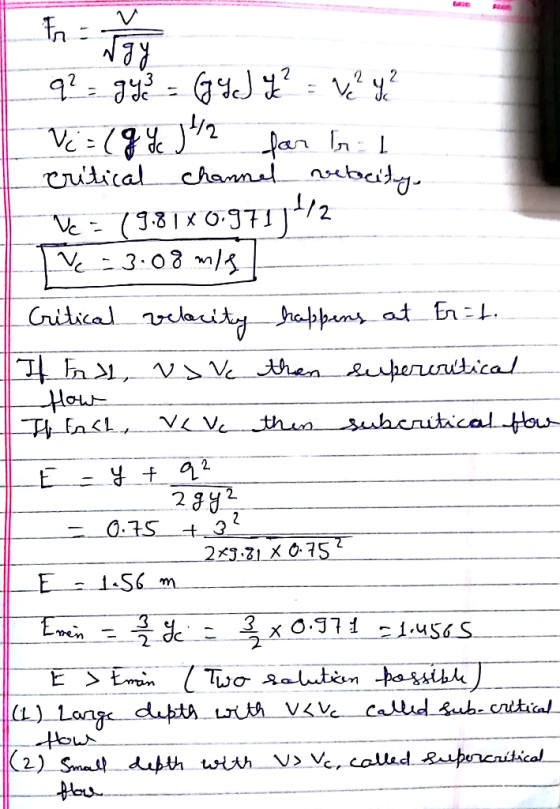

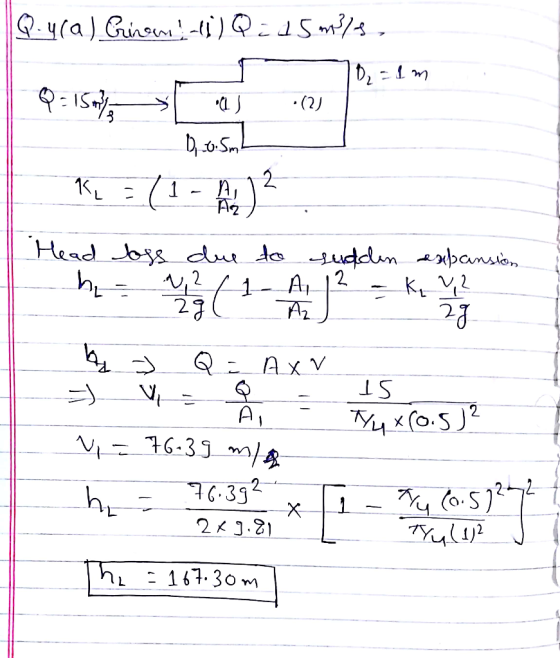

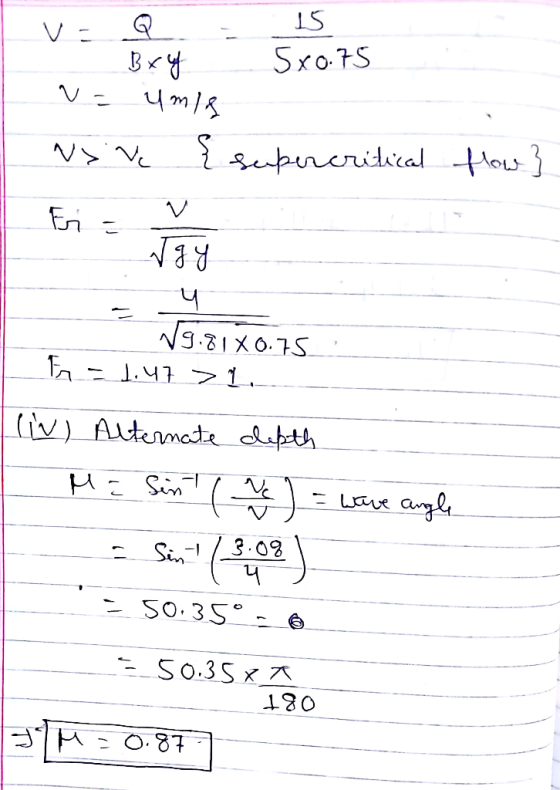

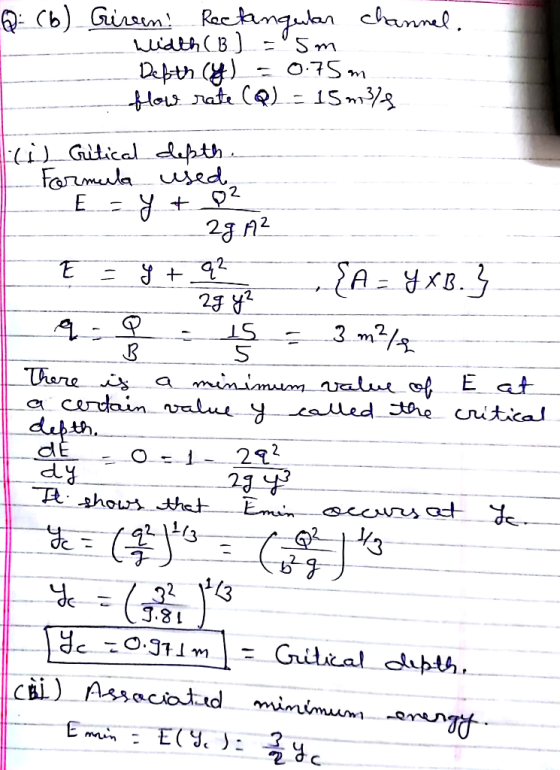

![Enam Bermaulli sq 2 + 2 23. 2 + 2 3 2 V,2 2-J 2 +6. 332-1. OI2 2Xg.81 167.30 +248.23- 167:30 11 S3 (J]1.53) e gi P, ü) ressy](http://img.homeworklib.com/images/4de79b8e-ce39-40b1-9e8e-91494dcf1faf.png?x-oss-process=image/resize,w_560)
Add Answer to:

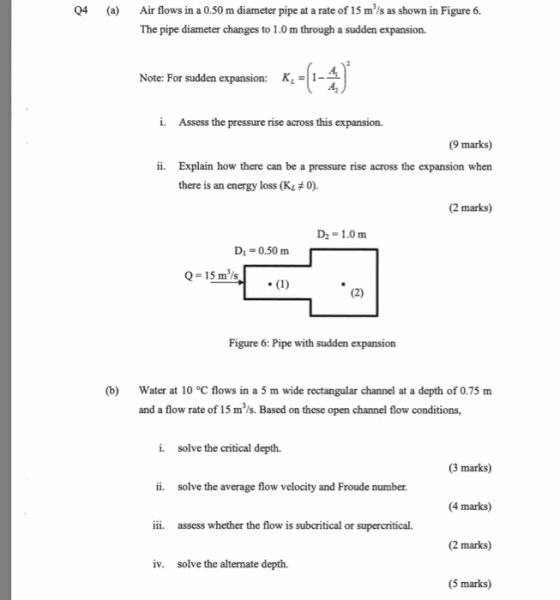

Air flows in a 0.50 m diameter pipe at a rate of 15 m/s as shown in Figure 6 Q4 (a) The pipe diameter changes to 1....
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig. A.4....
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig.
A.4. It exits by impacting upon a 90- cone and leaves with a
uniform flow of thickness 1 cm around the cone edge.
(a) Calculate the force acting on the cone. (15 marks)
(b) If the flow exits non-uniformly, explain how the movement of
the cone will be affected. (5 marks)
A.4 Water flows in a 20 cm diameter pipe at 5 m/s as shown...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to a...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find th...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
A.4 Water flows in a 25 cm diameter pipe at 3 m/s as shown in Fig....
A.4 Water flows in a 25 cm diameter pipe at 3 m/s as shown in Fig. A.4. It exits by impacting upon a 90°- cone and leaves with a uniform flow of thickness 1 cm around the cone edge. Water Flow out Water Flow in Cone V = 3 m/s diameter 40 cm Water Flow out 1 cm Fig. A.4 (a) Calculate the force acting on the cone. (15 marks) (b) If the flow exits non-uniformly, explain how the movement...
A 1.0-cm-diameter pipe widens to 2.0 cm, then narrows to 0.50 cm. Liquid flows through the...
A 1.0-cm-diameter pipe widens to 2.0 cm, then narrows to 0.50 cm. Liquid flows through the first segment at a speed of 4.0 m/s. What are the speeds in the second and third segments? What is the volume flow rate through the pipe? If all three parts of the pipe are at the same height and the pressure in the first segment is recorded at 80 kPa, what is the pressure in the second and third segments of the pipe?
6 Question 5: Flow through a Sudden Expansion and Sudden Contraction Pipe 1, a smaller diameter...
6 Question 5: Flow through a Sudden Expansion and Sudden Contraction Pipe 1, a smaller diameter pipe, is connected to a larger diameter pipe, Pipe 2; the connection between the two pipes is abrupt or sudden. Section 1 is located on the smaller diameter Pipe 1 and Section 2 is located on the larger diameter Pipe 2. Both Sections 1 and 2 are located sufficiently far away from the sudden pipe join that any locally generated flow disturbance has negligible...
1. Water flows through a commercial steel pipe, as sketched below (not to scale): SIDACTION D2ELBSOW...
1. Water flows through a commercial steel pipe, as sketched below (not to scale): SIDACTION D2ELBSOW し1 L2 D2 SUDDEN EXPANSIOND The water enters a pipe at point A with a diameter, Di, of 25 cm at a flow rate, Q, of 0.075 m3/s. After a length, Li, of 150 m, there is a sudden contraction to a smaller diameter, D2, of 10 cm. Following another length, L2, of 95 m, there is a 45° elbow, turning the pipe towards...
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure...
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure measurements in the figure, determine: a) Whether the flow is up or down b) The head loss between points A and B P 500 kPa 15 m c) The flow rate if losses are about 16% of the 370 velocity head 20 m
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P=...
6-7. Oil flows through the 100-mm-diameter pipe with a velocity of 8 m/s. If the pressure...
6-7. Oil flows through the 100-mm-diameter pipe with a velocity of 8 m/s. If the pressure in the pipe at A and B is assumed to be 60 kPa, determine the x and y components of force the flow exerts on the elbow. The flow occurs in the horizontal plane. Take ρο -900 kg/m3 8 m/s 30° 100 mm 100 mm
Water flows at speed of 6 m/s through a horizontal pipe of diameter 3.5 cm. The...
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
Water flows in a 20 cm diameter pipe at 5 m/s as shown in Fig.
A.4. It exits by impacting upon a 90- cone and leaves with a
uniform flow of thickness 1 cm around the cone edge.
(a) Calculate the force acting on the cone. (15 marks)
(b) If the flow exits non-uniformly, explain how the movement of
the cone will be affected. (5 marks)
A.4 Water flows in a 20 cm diameter pipe at 5 m/s as shown...
Question D.1 A2 Not sure Water flows between two tanks connected by a 100 m long pipe as shown in figure D1-1 below The tanks have a free surface height difference of 15 m and are both open to atmosphere. The first 30 m of pipe from the upper tank (section 1) has an internal diameter of 50 mm and a friction factor of 0.006, whilist the remaining 70m of pipe (section 2) has an internal diameter mm and a...
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m /s and the pressure head at Bif the siphon pipe has a uniform diameter of 140 mm. (15 marks) B M K N Doc-
QUESTION 2 Refer to the figure below. Assume a 2 m, b 6 m, and the flow is frictionless in the siphon pipe. Find the discharge in m...
A.4 Water flows in a 25 cm diameter pipe at 3 m/s as shown in Fig. A.4. It exits by impacting upon a 90°- cone and leaves with a uniform flow of thickness 1 cm around the cone edge. Water Flow out Water Flow in Cone V = 3 m/s diameter 40 cm Water Flow out 1 cm Fig. A.4 (a) Calculate the force acting on the cone. (15 marks) (b) If the flow exits non-uniformly, explain how the movement...
6 Question 5: Flow through a Sudden Expansion and Sudden Contraction Pipe 1, a smaller diameter pipe, is connected to a larger diameter pipe, Pipe 2; the connection between the two pipes is abrupt or sudden. Section 1 is located on the smaller diameter Pipe 1 and Section 2 is located on the larger diameter Pipe 2. Both Sections 1 and 2 are located sufficiently far away from the sudden pipe join that any locally generated flow disturbance has negligible...
1. Water flows through a commercial steel pipe, as sketched below (not to scale): SIDACTION D2ELBSOW し1 L2 D2 SUDDEN EXPANSIOND The water enters a pipe at point A with a diameter, Di, of 25 cm at a flow rate, Q, of 0.075 m3/s. After a length, Li, of 150 m, there is a sudden contraction to a smaller diameter, D2, of 10 cm. Following another length, L2, of 95 m, there is a 45° elbow, turning the pipe towards...
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P= 180 kPa diameter pipe shown in the figure. For the pressure measurements in the figure, determine: a) Whether the flow is up or down b) The head loss between points A and B P 500 kPa 15 m c) The flow rate if losses are about 16% of the 370 velocity head 20 m
Problem 2: Oil at 20 °C (SG 0.88) flows in the 3-cm P=...
6-7. Oil flows through the 100-mm-diameter pipe with a velocity of 8 m/s. If the pressure in the pipe at A and B is assumed to be 60 kPa, determine the x and y components of force the flow exerts on the elbow. The flow occurs in the horizontal plane. Take ρο -900 kg/m3 8 m/s 30° 100 mm 100 mm
Water flows at speed of 6 m/s through a horizontal pipe of
diameter 3.5 cm. The gauge pressure P1 of the water in the pipe is
1.7 atm. A short segment of the pipe is constricted to a smaller
diameter of 2.4 cm .
What is the gauge pressure of the water flowing through the
constricted segment? Atmospheric pressure is 1.013 × 10^5 Pa. The
density of water is 1000 kg/m^3 . The viscosity of water is
negligible. Answer in...
