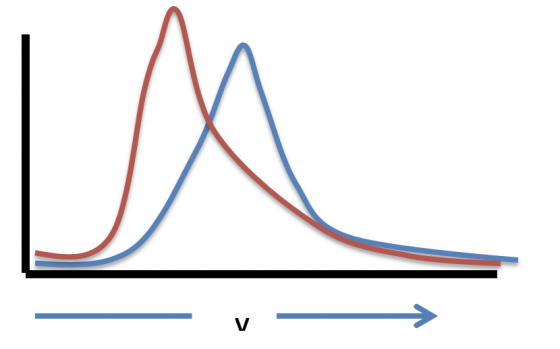

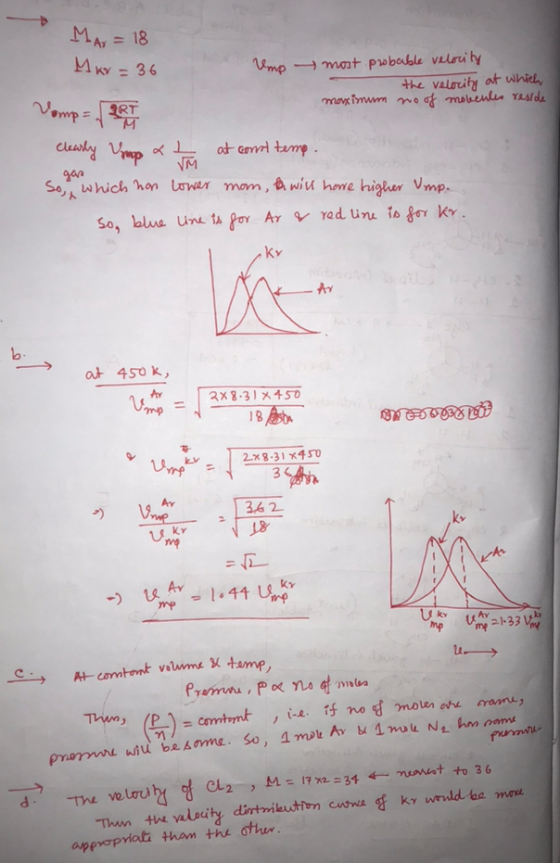

- These are two graphs showing the velocity of Argon and Krypton molecules at 300K. Identify the curve with the gas.
- Draw the graph of these same two gases at 450K.
- Why does 1 mole of Ar have the same pressure of as 1 mole of N2 at the same volume and temperature?
- Which curve would more closely predict the velocity of Cl2? Why?
