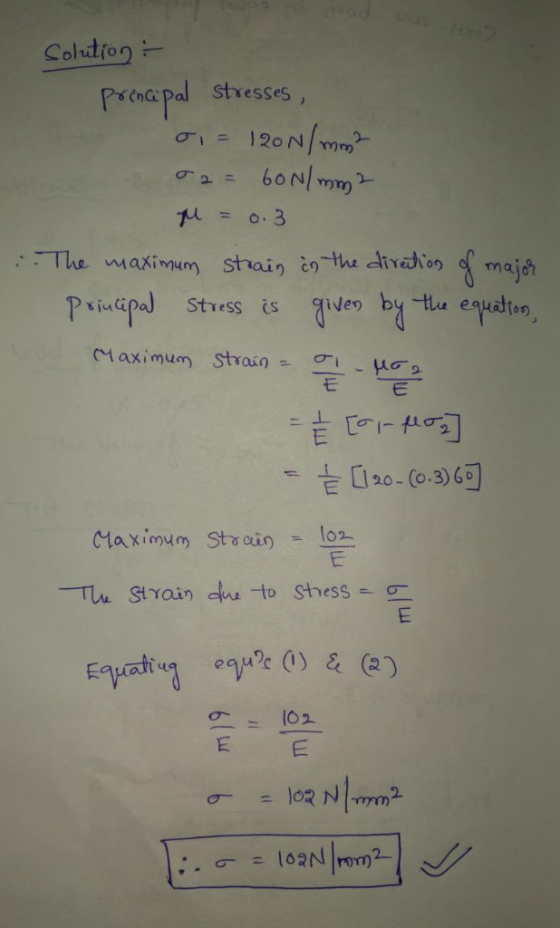

ne plate of a boiler is subjected to principal stresses of 120 N/mm2 and 60 N/mm2 both tensile. Eln the intensity of st...
13-1 A cast-iron plate in biaxial stress is subjected to tensile stresses ơ,-30MPa and ơ.-40MPa (see figure). The corresponding strains in the plate are E-120x106 and ε,-160x106. Determine (1) Poisso...
13-1 A cast-iron plate in biaxial stress is subjected to tensile stresses ơ,-30MPa and ơ.-40MPa (see figure). The corresponding strains in the plate are E-120x106 and ε,-160x106. Determine (1) Poisson's ratio v for the material (2) Modulus of elasticity E for the material. (3) Strain energy density u.
13-1 A cast-iron plate in biaxial stress is subjected to tensile stresses ơ,-30MPa and ơ.-40MPa (see figure). The corresponding strains in the plate are E-120x106 and ε,-160x106. Determine (1) Poisson's ratio v...
A large flat plate is subjected to constant-amplitude uniaxial cyclic tensile stresses of a maximum stress...
A large flat plate is subjected to constant-amplitude uniaxial cyclic tensile stresses of a maximum stress of 147 and a minimum stress of 32 MPa. If before testing the largest surface crack is 0.98 mm and the plain-strain fracture toughness of the plate is 33.4 MPa m1/2, estimate the fatigue life of the plate in cycles to failure. For the plate, m = 3.7 and A = 5.0 x 10-12 in MPa and meter units. Assume Y = 1.14
A large flat plate is subjected to constant-amplitude uniaxial cyclic tensile stresses of a maximum stress...
A large flat plate is subjected to constant-amplitude uniaxial cyclic tensile stresses of a maximum stress of 141 and a minimum stress of 28 MPa. If before testing the largest surface crack is 0.93 mm and the plain-strain fracture toughness of the plate is 32.5 MPa m1/2, estimate the fatigue life of the plate in cycles to failure. For the plate, m = 4 and A = 5.0 x 10-12 in MPa and meter units. Assume Y = 1.29
alem1s aonsalpn A rectangular plate is subjected to a plane stress state with principal stresses: σ,-67...
alem1s aonsalpn A rectangular plate is subjected to a plane stress state with principal stresses: σ,-67 MPa and σ,--23 MPa. The first principal stress acts in the x-direction and the second principal stress acts in the y-direction. The in-plane dimensions of the plate are given below. The out-of-plane dimension is 20 mm. The plate is made of material with E 200 GPa and v 0.30. Answer the following questions. a) What is the maximum in-plane shear strain Vmax in the...
A shaft subjected to bending moment varying from -200 N m to +500 N m and a varying torque from 50 N m to 175 N m. If material of the shaft is 30C8, stress concentration factor is 1.85, notch sensitivity is 0.95 reliability 99.9% and factor of safety is 1
A shaft subjected to bending moment varying from -200 N m to +500 N m and a varying torque from 50 N m to 175 N m. If material of the shaft is 30C8, stress concentration factor is 1.85, notch sensitivity is 0.95 reliability 99.9% and factor of safety is 1.5, find the diameter of the shaft. The load on a bolt consists of an axial pull of 10 kN together with a transverse shear force of 5 kN. Find...
Do let me know if it's visible or not . thank you 3 a) Dengan dbantu...
Do let me know if it's visible or not . thank
you
3 a) Dengan dbantu lakaran-lakaran yang sesual, takrifican bentuk umum Hukum Hooke. Terangkan bagaimana hubungan tegasan dan terilkan di satu titilk dalam tiga dimensi boleh didapati, menggunakan Hukum Hooke dan prinsip tindihan. Wth the help of neat skotches, define the general form of Hooke's Law. Explain how the relationship of stress and strain at a point in three-dimension can be abtainod, using Hooke's Law and the principle of...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
need solution for milestones A Q1 Solid Mechanics 3 Assessment Task 1a - 2020 Milestone a...
need solution for milestones A Q1
Solid Mechanics 3 Assessment Task 1a - 2020 Milestone a Question 1. For each of the plane-stress conditions given below, construct a Mohr's circle of stress, find the principal stresses and the orientation of the principal axes relative to the xy axes and determine the stresses on an element, rotated in the x-y plane 60° counterclockwise from its original position: (a) dx = 200 MPa Oy - 300 MPa T .40 MPa (b) dx...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
13-1 A cast-iron plate in biaxial stress is subjected to tensile stresses ơ,-30MPa and ơ.-40MPa (see figure). The corresponding strains in the plate are E-120x106 and ε,-160x106. Determine (1) Poisson's ratio v for the material (2) Modulus of elasticity E for the material. (3) Strain energy density u.
13-1 A cast-iron plate in biaxial stress is subjected to tensile stresses ơ,-30MPa and ơ.-40MPa (see figure). The corresponding strains in the plate are E-120x106 and ε,-160x106. Determine (1) Poisson's ratio v...
alem1s aonsalpn A rectangular plate is subjected to a plane stress state with principal stresses: σ,-67 MPa and σ,--23 MPa. The first principal stress acts in the x-direction and the second principal stress acts in the y-direction. The in-plane dimensions of the plate are given below. The out-of-plane dimension is 20 mm. The plate is made of material with E 200 GPa and v 0.30. Answer the following questions. a) What is the maximum in-plane shear strain Vmax in the...
Do let me know if it's visible or not . thank
you
3 a) Dengan dbantu lakaran-lakaran yang sesual, takrifican bentuk umum Hukum Hooke. Terangkan bagaimana hubungan tegasan dan terilkan di satu titilk dalam tiga dimensi boleh didapati, menggunakan Hukum Hooke dan prinsip tindihan. Wth the help of neat skotches, define the general form of Hooke's Law. Explain how the relationship of stress and strain at a point in three-dimension can be abtainod, using Hooke's Law and the principle of...
1. The following is a one-layer truss structure fabricated from aluminum tubing with outside diameter and wall thickness as 0.4 inch and 0.05 inch, respectively. The Young's modulus and Poisson's ratio for aluminum are E= 10 x 10°psi, v=0.33, respectively. The applied load P is 60 Ib. Please answer = 60° B Ra all Cled URb The internal force for member AC is: -30 lb 34.6 lb 30 lb -34.6 lb Question 2 1 points Save Answer 1. The following...
need solution for milestones A Q1
Solid Mechanics 3 Assessment Task 1a - 2020 Milestone a Question 1. For each of the plane-stress conditions given below, construct a Mohr's circle of stress, find the principal stresses and the orientation of the principal axes relative to the xy axes and determine the stresses on an element, rotated in the x-y plane 60° counterclockwise from its original position: (a) dx = 200 MPa Oy - 300 MPa T .40 MPa (b) dx...
Question 1 An end capped cylindrical pressure vessel with internal pressure p = fully supported at one end, is also subjected to a force F= 10 kN in the y direction at the other end as shown. The internal diameter of the pressure vessel is d= 160 mm and its thickness is t= 10 mm 3 MPa, assumed to be Determine the magnitudes of the stress components in x, y and z coordinates at points H and K and sketch...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
