Given are two half-cells, described by the equations: Zn^(2+)(aq) + 2e- -> Zn(s) E(standard) = -0.76 V Ag^(+)(aq) + e...
Given are two half-cells, described by the equations:
Zn^(2+)(aq) + 2e- -> Zn(s) E(standard) = -0.76 V
Ag^(+)(aq) + e- -> Ag(s) E(standard) = +0.80 V

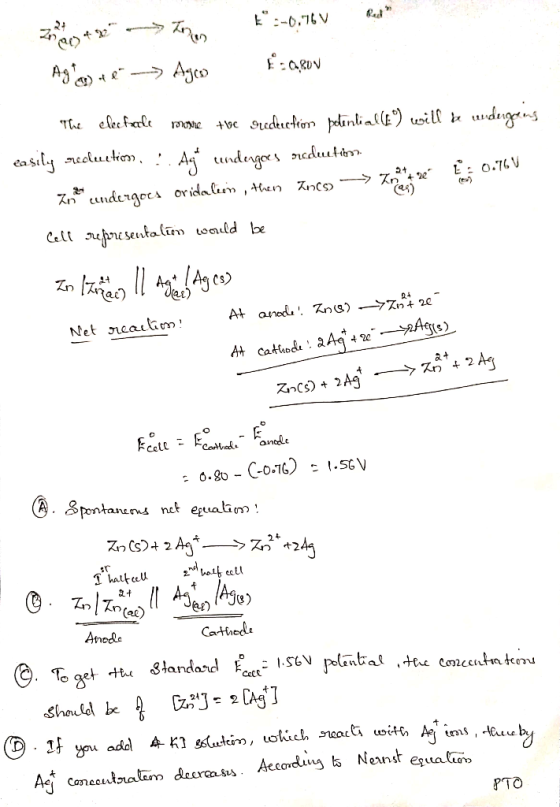

A. Write down the net equation for the spontaneous reaction that
takes place in the cell.
B. Draw the two half cells and mark the anode and the
cathode.
C. Mark the solutions' concentration necessary in order to reach
the standard potential.
D. How will the cell's potential be influenced by the addition
of a KI-solution? Explain! (an AgI sediment is created)

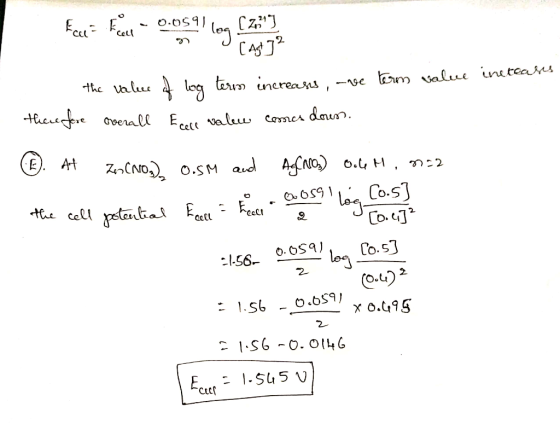

E. What will be the cell's potential when the concentration of
solution Zn(NO3)2 will be 0.5 M and when the concentration of AgNO3
will be 0.4 M. Show calculations!
Homework Answers
