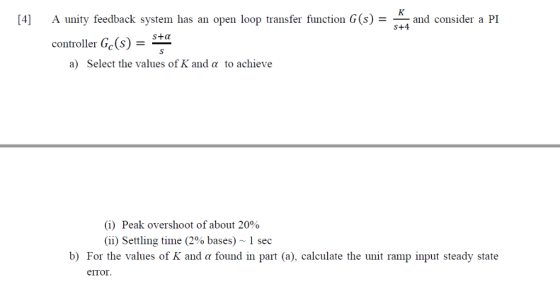

![K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Select the](http://img.homeworklib.com/images/f35c97b8-d5ff-45ce-a0cf-37b9f32b4cfd.png?x-oss-process=image/resize,w_560)

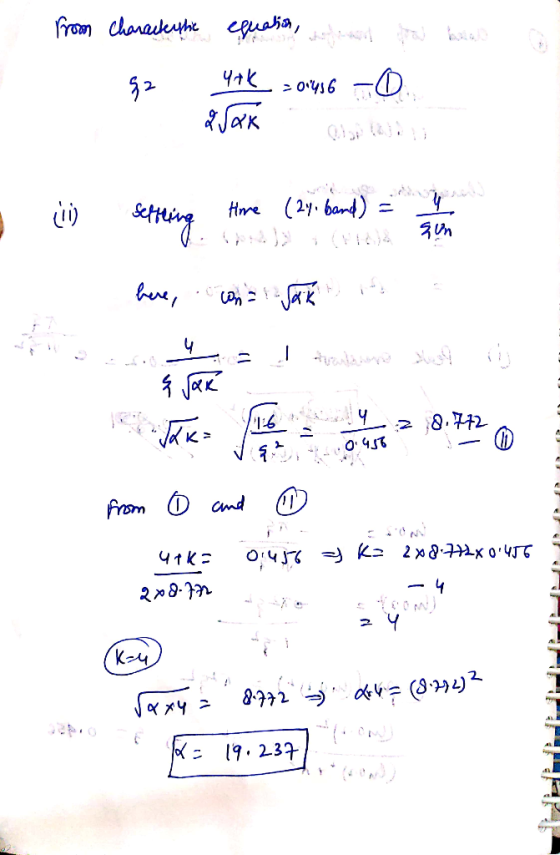

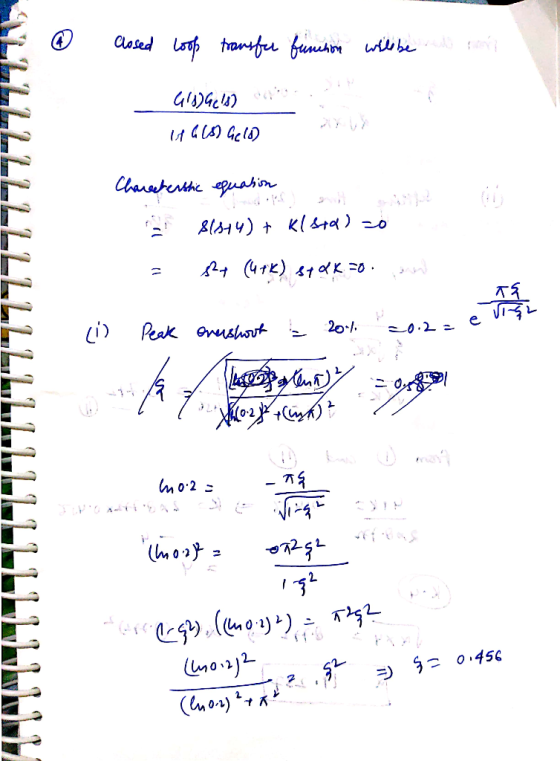

Homework Answers
Add Answer to:
K and consider a PI s+4 A unity feedback system has an open loop transfer function G(s) [4] S+a controller Ge(s) S Sele...
