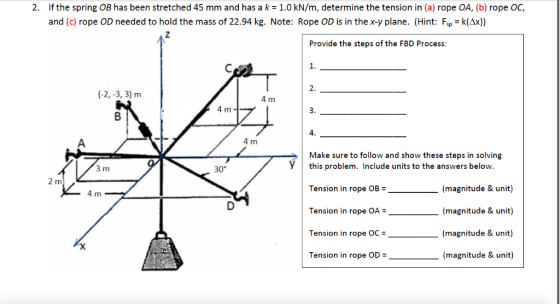

If the spring OB has been
stretched 45 mm and has a k = 1.0 kN/m, determine the tension in
(a) rope OA, (b) rope OC, and (c) rope OD needed to hold the mass
of 22.94 kg. Note: Rope OD is in the x-y plane. (Hint: Fsp =
k(Δx))

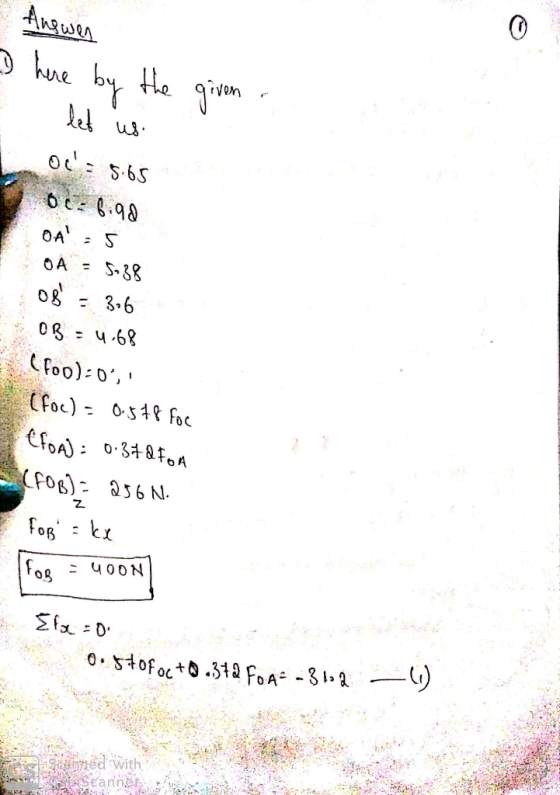

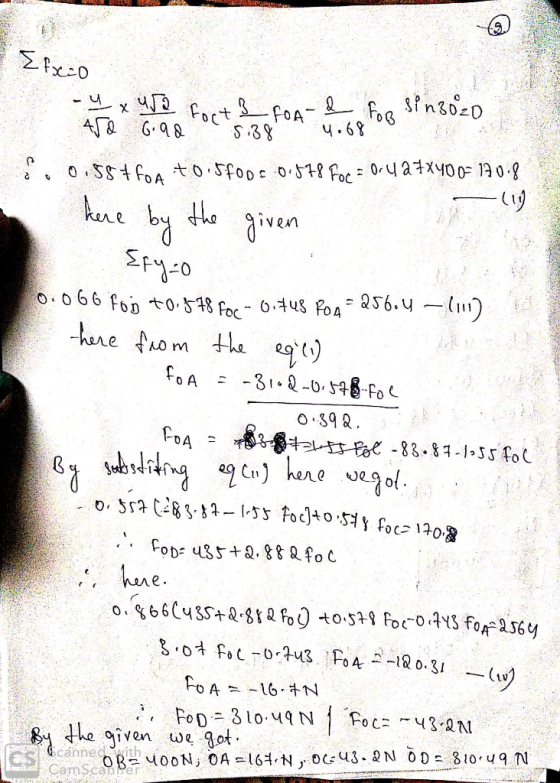

Homework Answers
Add Answer to:
If the spring OB has been stretched 45 mm and has a k = 1.0 kN/m, determine the tension in (a) rope OA, (b) rope OC, and...
