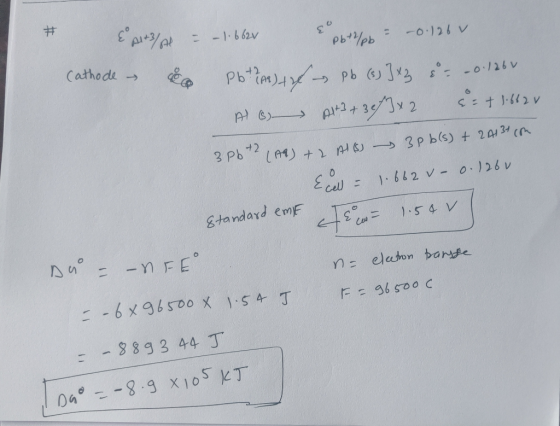

A galvanic cell is made up of an Al-Al 3+ half-cell and a Pb-Pb2+ half cell. What is the standard EMF of this cell and...
Homework Answers
![& Alt Cathode - – – 1.662V & pbt2/6 = -0.126 v 8 Pbt? A) – Pb (s)]*2 8= – 0.126 Alo Alt + 30/]x2 4 = +1.662 3 Pb+2 (A) + 2 AS](http://img.homeworklib.com/questions/a1931af0-29d5-11ea-89d9-87a9b6a70dea.png?x-oss-process=image/resize,w_560)
Add Answer to:
A galvanic cell is made up of an Al-Al 3+ half-cell and a Pb-Pb2+ half cell. What is the standard EMF of this cell and...
What is the emf of a cell consisting of a Pb2+ / Pb half-cell and a...
What is the emf of a cell consisting of a Pb2+ / Pb half-cell and a Pt / H+ / H2 half-cell if [Pb2+] = 0.99 M, [H+] = 0.073 M and PH2 = 1.0 atm?
What is the emf of a cell consisting of a Pb2+ / Pb half-cell and a...
What is the emf of a cell consisting of a Pb2+ / Pb half-cell and a Pt / H+ / H2 half-cell if [Pb2+] = 0.28 M, [H+] = 0.034 M and PH2 = 1.0 atm ?
What is the emf of a cell consisting of a Pb2+/Pb half-cell and a H+/H2 Half-cell...
What is the emf of a cell consisting of a Pb2+/Pb half-cell and a H+/H2 Half-cell if [Pb2+]=0.30M, [H+]=0.070M and PH2=1.5 atm.
2. A voltaic cell consists of Pb/Pb2 and Al Al half-cells 9 points Pb Al' +...
2. A voltaic cell consists of Pb/Pb2 and Al Al half-cells 9 points Pb Al' + 2 e + 3 Pb Al Ered = -0.126 V Ered = -1.662 V Write out the balanced reaction for the cell and calculate the standard cell potential, Ecall On the diagram below, label the anode, the cathode, the direction of electron flow Also indicate at which electrode the oxidation occurs and which electrode the reduction occurs m ayar yar salt bridge
What is the standard emf of a galvanic cell made of a Co electrode in a 1.0 M Co(NO32 solution and a Al electrode in a 1.0 M AI(NO3)3 solution at 25°C?
What is the standard emf of a galvanic cell made of a Co electrode in a 1.0 M Co(NO32 solution and a Al electrode in a 1.0 M AI(NO3)3 solution at 25°C? 0 cell Standard Reduction Potentials at 25°C Half-Reaction E(V +2.87 +2.07 +1.82 O,(g) 2H (aq)2e0(g)+HO Co3+(aq) + e-_? Co2+(aq) H,02(aq) + 2H"(aq) + 2e-_ 2H20 Cu2+(aq) + 2e-? Cu(s) AgCIs) + Ag(s) + CI(a) S02-(aq) + 4H'(aq) + 2e S02(g) + 2H20 Cu2+(aq) + e-_ Cu+(aq) Sn (aq)...
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2:...
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2: Fe2+(aq)/Fe(s) and Zn2+(aq)/Zn(s) Which of the following is correct for the working cells? Standard reduction potentials, 298 K, Aqueous Solution (pH = 0): Cl2(g) + 2e --> 2C1-(aq); E° = +1.36 V Fe3+(aq) + e --> Fe2+(aq); E° = +0.77 V Cu2+(aq) + 2e --> Cu(s); E° = +0.34 V 2H+(aq) + 2e --> H2(g); E° = 0.00 V Pb2+(aq) + 2e --> Pb(s);...
A Mn|Mn2+ || Pb2+|Pb galvanic cell is constructed in which the standard cell voltage is 1.05...
A Mn|Mn2+ || Pb2+|Pb galvanic cell is constructed in which the standard cell voltage is 1.05 V. Calculate the free energy change at 25°C when 0.586 g of Pb plates out, if all concentrations remain at their standard value of 1 M throughout the process. What is the maximum amount of work that could be done by the cell on its surroundings during this experiment? ΔG° = ______J Maximum work =______ J
A Cacat Pb2+ Pb galvanic cell is constructed in which the standard cell voltage is 0.277...
A Cacat Pb2+ Pb galvanic cell is constructed in which the standard cell voltage is 0.277 V Calculate the free energy change at 25°C when 0.866 g of Pb plates out, if all concentrations remain at their standard value of 1 M throughout the process. What is the maximum amount of work that could be done by the cell on its surroundings during this experiment? AGⓇE Maximum work Use the References to access important values if needed for this question....
A voltaic cell consists of an Mn/Mn2+ half-cell and a Pb/Pb2+ half-cell. Pb2+(aq) + 2e- →...
A voltaic cell consists of an Mn/Mn2+ half-cell and a Pb/Pb2+ half-cell. Pb2+(aq) + 2e- → Pb(s) Eo = -0.13V Mn2+(aq) + 2e- →Mn(s) Eo = -1.18V What is the anode half-reaction for this voltaic cell? Question options: a. Mn2+(aq) + 2e- →Mn(s) b. Pb(s) → Pb2+(aq) + 2e- c. Pb2+(aq) + 2e- → Pb(s) d. Mn(s) →Mn2+(aq) + 2e-
11.) Calculate the standard emf of a cell that uses the Mg/Mg2+ and Cu/Cu2+ half-cell reactions...
11.) Calculate the standard emf of a cell that uses the Mg/Mg2+ and Cu/Cu2+ half-cell reactions at 25 C. Write the equation for the cell reaction that occurs under standard-state conditions. 12.) Calculate the emf and then predict whether the following reaction would occur spontaneously in aqueous solutions at 25 C. Assume that the initial concentrations of dissolved species are all 1.0 M. Show calculations. a.) Care) + Cd2+ (aq) → Ca2+ + Cd() b.) Br2() + Sn(3) ► 2Br...
2. A voltaic cell consists of Pb/Pb2 and Al Al half-cells 9 points Pb Al' + 2 e + 3 Pb Al Ered = -0.126 V Ered = -1.662 V Write out the balanced reaction for the cell and calculate the standard cell potential, Ecall On the diagram below, label the anode, the cathode, the direction of electron flow Also indicate at which electrode the oxidation occurs and which electrode the reduction occurs m ayar yar salt bridge
What is the standard emf of a galvanic cell made of a Co electrode in a 1.0 M Co(NO32 solution and a Al electrode in a 1.0 M AI(NO3)3 solution at 25°C? 0 cell Standard Reduction Potentials at 25°C Half-Reaction E(V +2.87 +2.07 +1.82 O,(g) 2H (aq)2e0(g)+HO Co3+(aq) + e-_? Co2+(aq) H,02(aq) + 2H"(aq) + 2e-_ 2H20 Cu2+(aq) + 2e-? Cu(s) AgCIs) + Ag(s) + CI(a) S02-(aq) + 4H'(aq) + 2e S02(g) + 2H20 Cu2+(aq) + e-_ Cu+(aq) Sn (aq)...
Separate galvanic cells are made from the following half-cells: cell 1: H+(aq)/H2(g) and Pb2+(aq)/Pb(s) cell 2: Fe2+(aq)/Fe(s) and Zn2+(aq)/Zn(s) Which of the following is correct for the working cells? Standard reduction potentials, 298 K, Aqueous Solution (pH = 0): Cl2(g) + 2e --> 2C1-(aq); E° = +1.36 V Fe3+(aq) + e --> Fe2+(aq); E° = +0.77 V Cu2+(aq) + 2e --> Cu(s); E° = +0.34 V 2H+(aq) + 2e --> H2(g); E° = 0.00 V Pb2+(aq) + 2e --> Pb(s);...
A Cacat Pb2+ Pb galvanic cell is constructed in which the standard cell voltage is 0.277 V Calculate the free energy change at 25°C when 0.866 g of Pb plates out, if all concentrations remain at their standard value of 1 M throughout the process. What is the maximum amount of work that could be done by the cell on its surroundings during this experiment? AGⓇE Maximum work Use the References to access important values if needed for this question....
11.) Calculate the standard emf of a cell that uses the Mg/Mg2+ and Cu/Cu2+ half-cell reactions at 25 C. Write the equation for the cell reaction that occurs under standard-state conditions. 12.) Calculate the emf and then predict whether the following reaction would occur spontaneously in aqueous solutions at 25 C. Assume that the initial concentrations of dissolved species are all 1.0 M. Show calculations. a.) Care) + Cd2+ (aq) → Ca2+ + Cd() b.) Br2() + Sn(3) ► 2Br...
