Initial Capital investment is $ 85,000 (Column 1)
Net Revenue increases @ 6.76% (Column 2)
Discounted revenue @ MARR 16% (Column 3) Calculated as

PW(N) is cumulative net outcome of the project up to the year (Column 4)
Probability of useful life of the project is p(N) (Column 5)
Summation of PW(N) X p(N) is E(PW) (Column 6)
Variance of Present Worth is

and Standard Deviation of Present worth is

| Year | Cost | Revenue | Discounted Revenue @ 16% | PW(N) | p(N) | PW(N)*p(N) | PW(N)^2 | p(N)*PW(N)^2 |
| 0 | $ 85,000.00 | $ (85,000.00) | ||||||
| 1 | $ 40,000.00 | $ 34,482.76 | $ (50,517.24) | 0.02 | $ (1,010.34) | $ 2,55,19,91,676.58 | $ 5,10,39,833.53 | |
| 2 | $ 42,704.00 | $ 31,736.03 | $ (18,781.21) | 0.12 | $ (2,253.75) | $ 35,27,33,955.81 | $ 4,23,28,074.70 | |
| 3 | $ 45,590.79 | $ 29,208.09 | $ 10,426.88 | 0.34 | $ 3,545.14 | $ 10,87,19,761.28 | $ 3,69,64,718.83 | |
| 4 | $ 48,672.73 | $ 26,881.51 | $ 37,308.39 | 0.22 | $ 8,207.85 | $ 1,39,19,16,051.05 | $ 30,62,21,531.23 | |
| 5 | $ 51,963.00 | $ 24,740.26 | $ 62,048.65 | 0.18 | $ 11,168.76 | $ 3,85,00,35,437.95 | $ 69,30,06,378.83 | |
| 6 | $ 55,475.70 | $ 22,769.57 | $ 84,818.23 | 0.12 | $ 10,178.19 | $ 7,19,41,31,554.37 | $ 86,32,95,786.52 | |
| E(PW) | $ 29,835.84 | E[(PW)^2] | $ 1,99,28,56,323.65 | |||||
| V(PW) | $ 1,10,26,79,053.21 | |||||||
| SD(PW) | $ 33,206.61 |

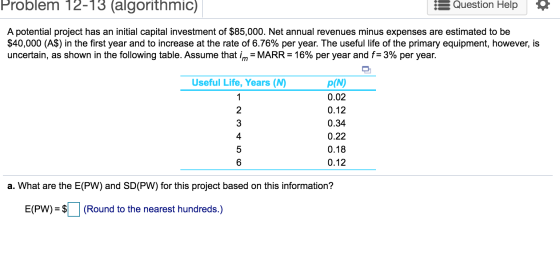

Problem 12-13 (algorithmic) Question Help A potential project has an initial capital investment of $85,000. Net annual...
Problem 12-12 (algorithmic) Question Help The tree diagram in figure below describes the uncertain cash flows for an engineering project. The analysis period is two years, and MARR = 12% per year. Based on this information, a. What are the E(PW), V(PW), and SD(PW) of the project? b. What is the probability that PW20? WClick the icon to view the tree diagram. Click the icon to view the interest and annuity table for discrete compounding when the MARR is 12%...
Problem 12-12 (algorithmic) The tree diagram in figure below describes the uncertain cash flows for an engineering project. The analysis period is two years, and MARR 15 % per year . Based on this information, a. What are the E(PW), V(PW), and SD(PW) of the project? b. What is the probability that PW 20? Click the icon to view the tree diagram. Click the icon to view the interest and annuity table for discrete compounding when the MARR is 15...
Problem 12-2 (algorithmic) Question Help part of a new road. An analysis has shown that traffic density on the new road will justify a two-lane bridge at the present time. Because of uncertainty regarding future use of the structed n fhaving to widen the bridge to four lanes at various times in the future are as follows: Probability d. the time at which an extra two lanes will be required is currently being studied. The estimated probabilities Widen Bridge In...
