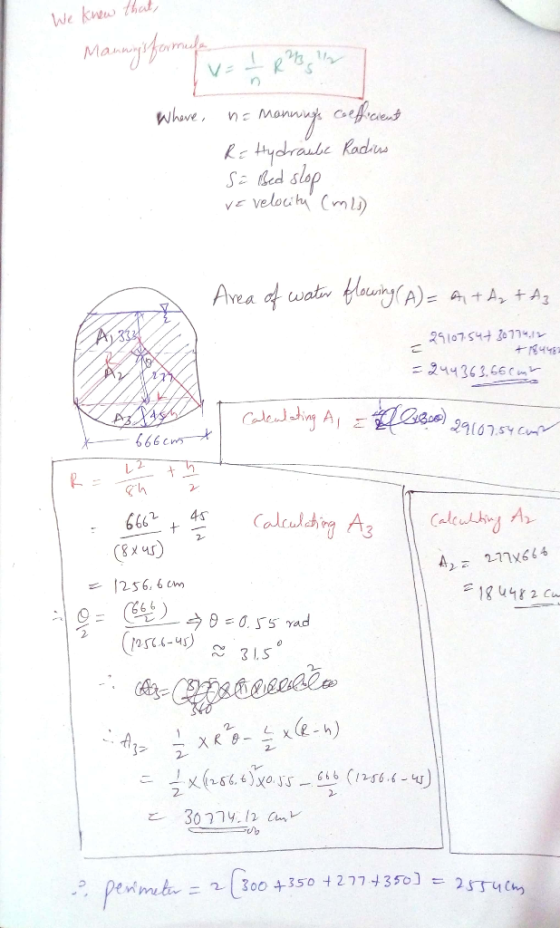

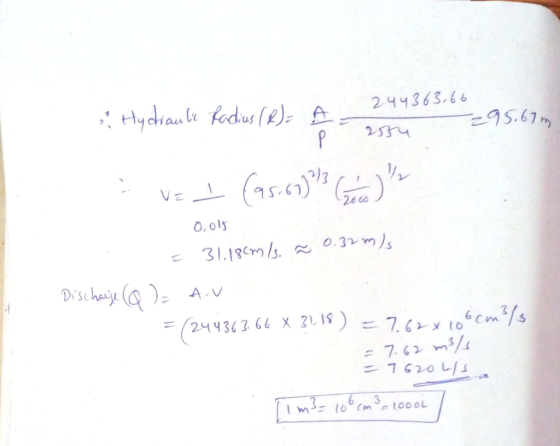

Discharge through horse shoe type culvert = 7.62 m3/s
Add Answer to:

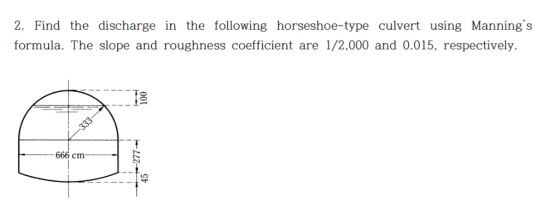

2. Find the discharge in the following horseshoe-type culvert using Manning's formula. The slope and roughness...
Problem #2 Design a culvert that is to be placed under a new roadway for a...
Problem #2 Design a culvert that is to be placed under a new roadway for a 25-year peak discharge of 180 cfs. Use a circular pipe culvert with beveled ring edges. Assume 45° bevels and a Manning's roughness coefficient of 0.025 for the culvert). The site conditions include: natural stream bed elevation at culvert inlet at 100 ft: culvert and culvert barrel slope of 1 %; tailwater for 25-vear flood equal to 3.5 ft; approximate culvert length of 200 ft;...
