NOTES: HI, PLEASE SOLVE BY USING ANALYTICAL METHOD WHICH IS RELATED TO FLUID MECHANICS(DRAG FORCE).TQ
Homework Answers
Add Answer to:

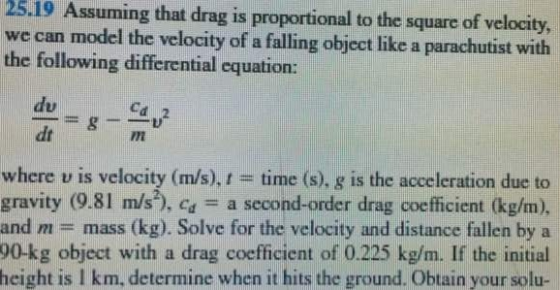

NOTES: HI, PLEASE SOLVE BY USING ANALYTICAL METHOD WHICH IS RELATED TO FLUID MECHANICS(DRAG FORCE).TQ 25.19...
Solve in Matlab Suppose that the position of a falling object is governed by the following differential equation: where c a first-order drag coefficient 12.5 kg/s, m mass 70 kg, and g gravitational a...
Solve in Matlab
Suppose that the position of a falling object is governed by the following differential equation: where c a first-order drag coefficient 12.5 kg/s, m mass 70 kg, and g gravitational acceleration = 9.81 m/s2. Use the shooting method to solve this equation for the boundary conditions: x(0) = 0 x( 12) = 500
Suppose that the position of a falling object is governed by the following differential equation: where c a first-order drag coefficient 12.5 kg/s, m...
PLEASE HELP! I need to write a MATLAB code for this Euler approximation for finding the...
PLEASE HELP! I need to write a MATLAB code for this Euler
approximation for finding the velocity of a parachutist at given
time iterations. The answers are provided so you can check to see
if the code works. I need to see it done in actual MATLAB program
so I can understand the coding methodology better.
1.) Euler Method (estimated time 11min) For the second-order drag model (see Eq. (1)), compute the velocity of a free-falling parachutist using Euler's method...
Differential Equation 3.2.015
A differential equation for the velocity v of a falling mass m subjected to air resistance proportional to the square of the instantaneous velocity ism(dv/dt) = mg − kv2,k > 0 is a constant of proportionality. The positive direction is downward.(a) Solve the equation subject to the initial condition v(0) = v0.(b) Use the solution in part (a) to determine the limiting, or terminal, velocity of the mass.(c) If the distance s, measured from the point where the mass was released above ground, is related to velocity v by ds/dt = v(t), find an explicit expression for s(t) if...
USE MATLAB TO SOLVE PLEASE 42. The velocity, v, of an object that falls freely due...
USE MATLAB TO SOLVE PLEASE
42. The velocity, v, of an object that falls freely due to the Earth gravity can be modeled with the equation: - mg + kv? dt where m is the mass of the object, g = 9.81 m/s2, and k is a constant. Solve the equation for v for the case that m = 5 kg, k = 0.05 kg/m, 0<t<15 s, and wo) = 0 m/s. Make a plot of v as a function...
2. Suppose an object of mass 15 kg is dropped from a height near the surface...
2. Suppose an object of mass 15 kg is dropped from a height near the surface of the Earth, so the acceleration due to gravity is -9.8, and assume the drag due to air 0.47. Assume the object's position is measured in meters above the ground, so velocity (a) Write down, but do not solve, a differential equation whose solution would give resistance is proportional to the square of object's velocity, with drag coefficient γ and acceleration are both negative...
n Chapter 5 we look at drag due to air resistance for falling objects. Using the...
n Chapter 5 we look at drag due to air resistance for falling objects. Using the Dv form of dr discussed in class, write a program (or solve analytically) to determine how long (sec.) and how far m) a 150 gram ball whose radius is 3.5cm would fall before it reached 75% of its terminal velocity. Assume ball falls in air whose density is 1.21 kg/m3, has a drag coefficient C .3, cross-sectional area s just the disk a sphere...
If a body of mass m falling from rest under the action of gravity encounters an...
If a body of mass m falling from rest under the action of gravity encounters an air resistance proportional to the square of the velocity, then the body's velocity t sec into dv the fall satisfies the differential equation m- mg-kv, where k is a constant that depends on the body's aerodynamic properties and the density of the air. (Assume dt that the fall is short enough so that the variation in the air's density will not affect the outcome...
please solve both. thank you! A mass of 1.25 kg stretches a spring 0.06 m. The...
please solve both. thank
you!
A mass of 1.25 kg stretches a spring 0.06 m. The mass is in a medium that exerts a viscous resistance of 56 N when the mass has a velocity of 2 . The viscous resistance is proportional to the speed of the object. Suppose the object is displaced an additional 0.03 m and released. Find an function to express the object's displacement from the spring's equilibrium position, in m after t seconds. Let positive...
1. A football has a mass of mp = 0.413 kg. It can be approximated as...
1. A football has a mass of mp = 0.413 kg. It can be approximated as an ellipsoid 6 in diameter and 12 in long. A 'Hail Mary' pass is thrown upward at a 45° angle with an initial velocity of 55 mph. Air density at sea level is p= 1.22 kg/m². Neglect any spin on the ball and any lift force. Assume turbulent flow and a constant air-drag coefficient of Cp = 0.13. The equation of motion of the...
Please help with Q1 a)b)c). Question 1: In the lectures we considered simple projectile motion. Here we extend the description to include air resistance. For macroscopic objects in air, the dynamics...
Please help with Q1 a)b)c).
Question 1: In the lectures we considered simple projectile motion. Here we extend the description to include air resistance. For macroscopic objects in air, the dynamics equations including air resistance may be written V and ^- where m is the mass of the object, g is the acceleration due to gravity, y is the vertical direction, C is a dimensionless drag coefficient, A is the cross-sectional area of the object, pa 1.2kg/m3 is the density...
Solve in Matlab
Suppose that the position of a falling object is governed by the following differential equation: where c a first-order drag coefficient 12.5 kg/s, m mass 70 kg, and g gravitational acceleration = 9.81 m/s2. Use the shooting method to solve this equation for the boundary conditions: x(0) = 0 x( 12) = 500
Suppose that the position of a falling object is governed by the following differential equation: where c a first-order drag coefficient 12.5 kg/s, m...
PLEASE HELP! I need to write a MATLAB code for this Euler
approximation for finding the velocity of a parachutist at given
time iterations. The answers are provided so you can check to see
if the code works. I need to see it done in actual MATLAB program
so I can understand the coding methodology better.
1.) Euler Method (estimated time 11min) For the second-order drag model (see Eq. (1)), compute the velocity of a free-falling parachutist using Euler's method...
USE MATLAB TO SOLVE PLEASE
42. The velocity, v, of an object that falls freely due to the Earth gravity can be modeled with the equation: - mg + kv? dt where m is the mass of the object, g = 9.81 m/s2, and k is a constant. Solve the equation for v for the case that m = 5 kg, k = 0.05 kg/m, 0<t<15 s, and wo) = 0 m/s. Make a plot of v as a function...
2. Suppose an object of mass 15 kg is dropped from a height near the surface of the Earth, so the acceleration due to gravity is -9.8, and assume the drag due to air 0.47. Assume the object's position is measured in meters above the ground, so velocity (a) Write down, but do not solve, a differential equation whose solution would give resistance is proportional to the square of object's velocity, with drag coefficient γ and acceleration are both negative...
n Chapter 5 we look at drag due to air resistance for falling objects. Using the Dv form of dr discussed in class, write a program (or solve analytically) to determine how long (sec.) and how far m) a 150 gram ball whose radius is 3.5cm would fall before it reached 75% of its terminal velocity. Assume ball falls in air whose density is 1.21 kg/m3, has a drag coefficient C .3, cross-sectional area s just the disk a sphere...
If a body of mass m falling from rest under the action of gravity encounters an air resistance proportional to the square of the velocity, then the body's velocity t sec into dv the fall satisfies the differential equation m- mg-kv, where k is a constant that depends on the body's aerodynamic properties and the density of the air. (Assume dt that the fall is short enough so that the variation in the air's density will not affect the outcome...
please solve both. thank
you!
A mass of 1.25 kg stretches a spring 0.06 m. The mass is in a medium that exerts a viscous resistance of 56 N when the mass has a velocity of 2 . The viscous resistance is proportional to the speed of the object. Suppose the object is displaced an additional 0.03 m and released. Find an function to express the object's displacement from the spring's equilibrium position, in m after t seconds. Let positive...
1. A football has a mass of mp = 0.413 kg. It can be approximated as an ellipsoid 6 in diameter and 12 in long. A 'Hail Mary' pass is thrown upward at a 45° angle with an initial velocity of 55 mph. Air density at sea level is p= 1.22 kg/m². Neglect any spin on the ball and any lift force. Assume turbulent flow and a constant air-drag coefficient of Cp = 0.13. The equation of motion of the...
Please help with Q1 a)b)c).
Question 1: In the lectures we considered simple projectile motion. Here we extend the description to include air resistance. For macroscopic objects in air, the dynamics equations including air resistance may be written V and ^- where m is the mass of the object, g is the acceleration due to gravity, y is the vertical direction, C is a dimensionless drag coefficient, A is the cross-sectional area of the object, pa 1.2kg/m3 is the density...
