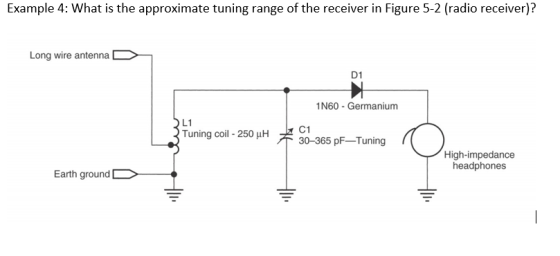

Example 4: What is the approximate tuning range of the receiver in Figure 5-2 (radio receiver)? Long wire antenna D1 1N60 - G

show all work

engineering Electrical-Engineering

Answer 1

Answer #1

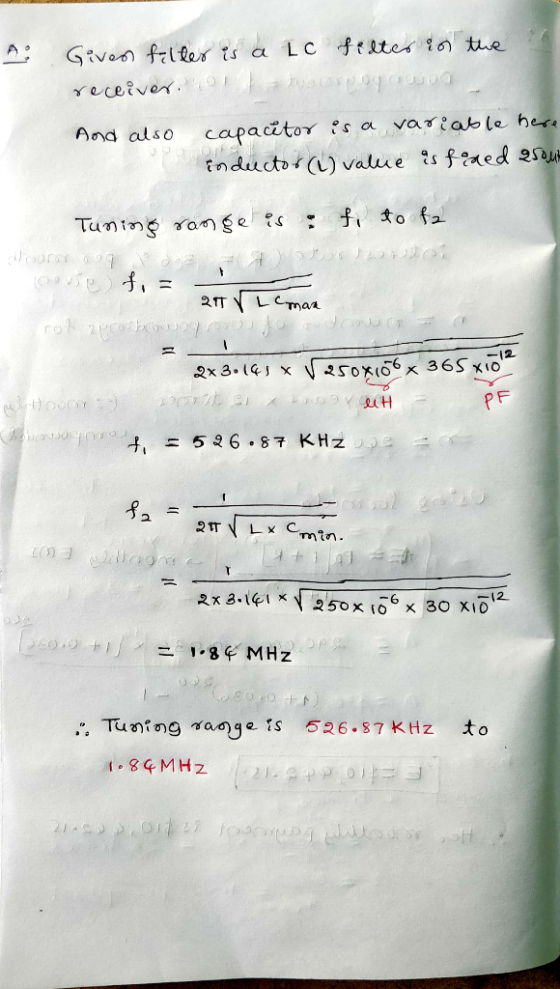

Giveo frlfes is a LC feites the eceiver capacitor s a varab le her And also tnducto () valuue s fred 2su fi to fa Tuntn range

Answer 2

Similar Homework Help Questions

show all work Example 2: Calculate the BW for the modeled tuning circuit of the Fig....

show all work Example 2: Calculate the BW for the modeled tuning circuit of the Fig. below at the Frequencies: 540 kHz (bottom of AM dial); 980 kHz (middle of dial); 1620 kHz (top dial) Comment your results. L1 500 μΗ LOOPSTICK C1 R (load) 100 K R (load) is the combined coil loss (L1) and input resistance of U1. It represents all the losses in the tuned circuit. 150 pF TUNING Parallel resistance X Q for loaded parallel resonant...
