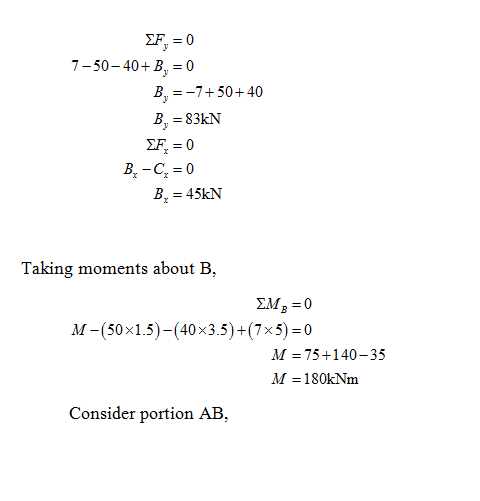

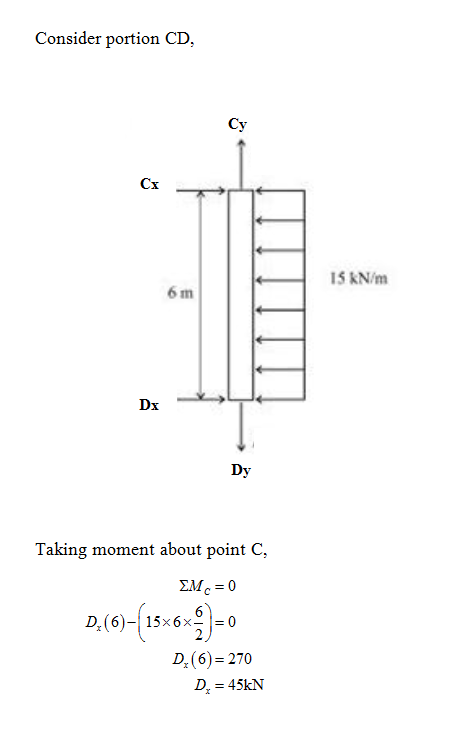

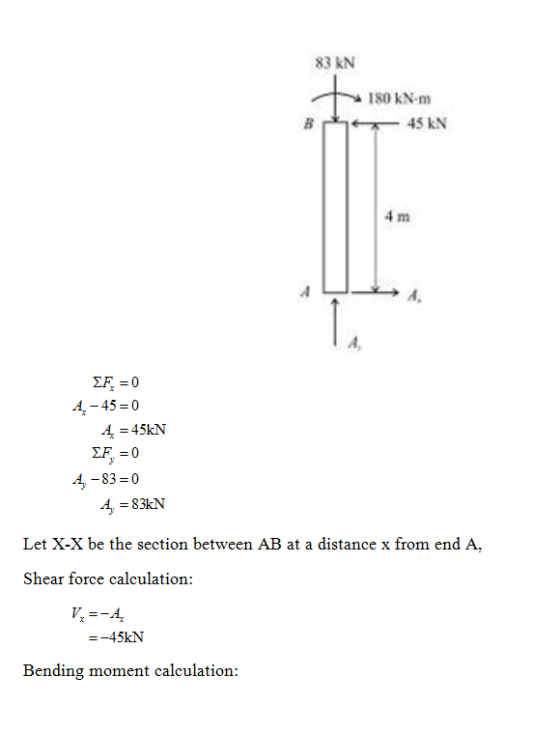

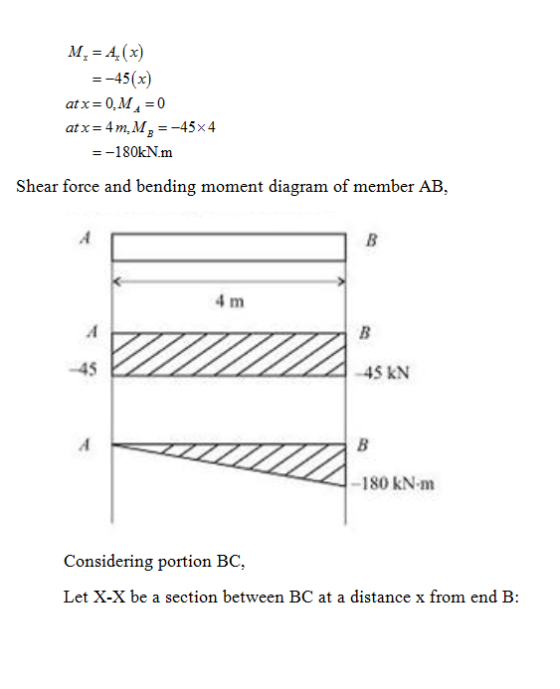

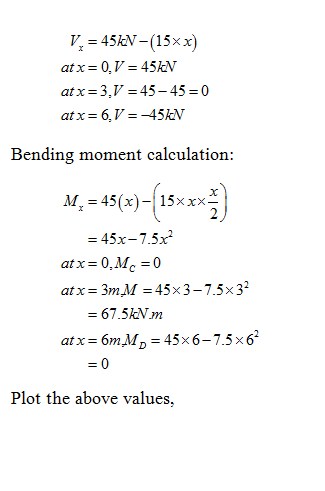

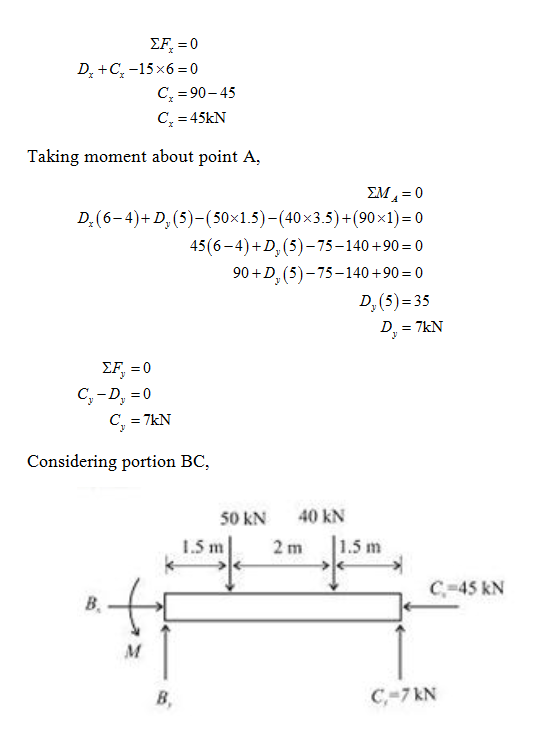

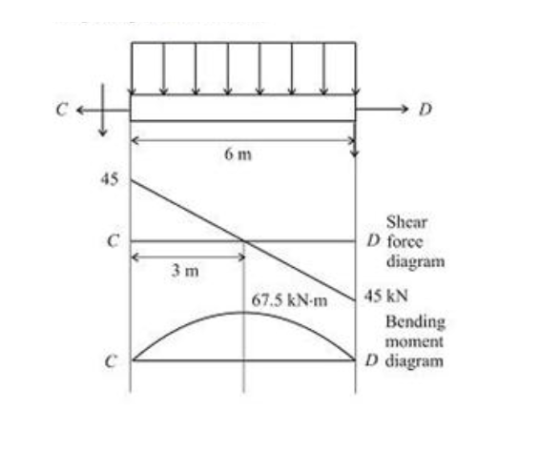

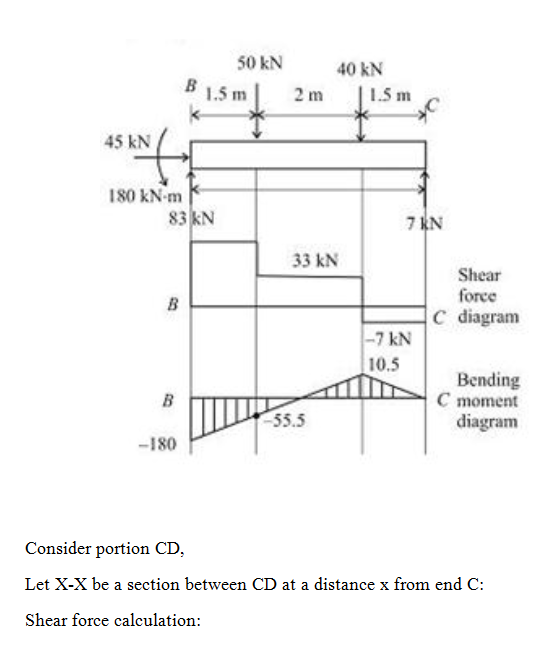

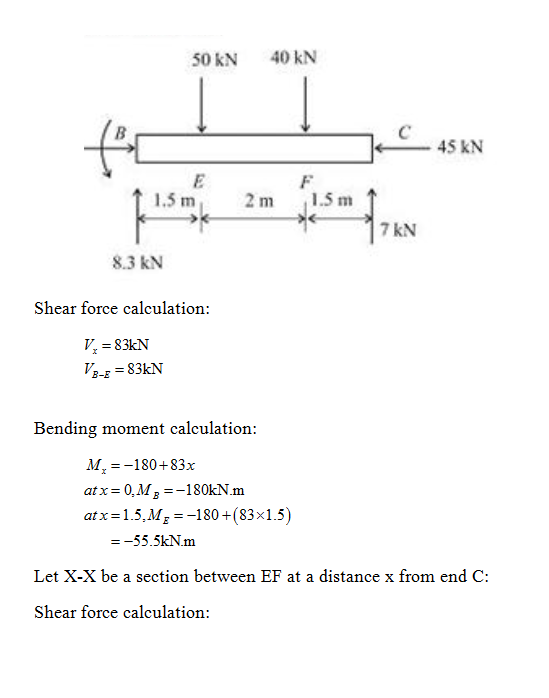

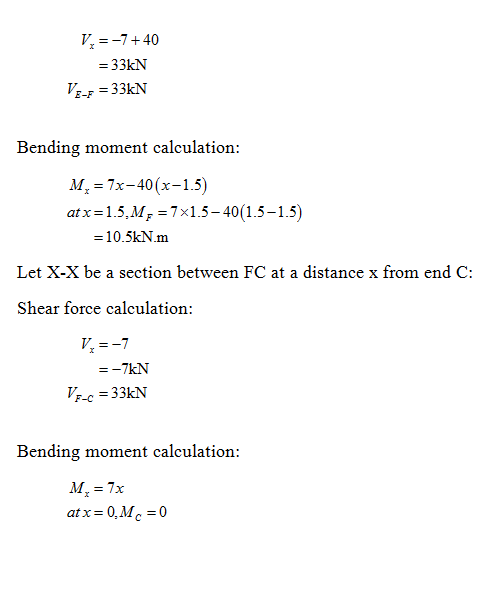

Draw the shear and moment diagram for each of the three members of the frame. Assume the frame is pin connected at A, C, and D and there is a fixed joint at B?










Draw the shear and moment diagrams completely for the frame shown loaded as shown in the figure. Assume A is fixed support, D is pin , E is roller ,C is a fixed joint, and at B is free end.
Draw the shear and moment diagrams for the frame shown completely. Assume A and E are both hinge supports,C is pin , B and D are fixed joint.
Part B) For the frame (no sidesway) below, determine the reactions and draw the shear and moment diagrams using the moment-distribution method of analysis. Joints A, B and E are fixed and all members are rigidly connected at C and D. You may perform the moment distribution by hand. E is constant, but I is as shown on the frame 50 kN 50 kN 4 m 6 kN/m 21 1.51 1.51 6 m 8 Part 3) Reanalyze the frame of...
P5.47. For the frame in Figure P5.47 . draw the shear and moment curves for all members. Next sketch the deflected shape of the frame. Show all forces acting on a free-body diagram of joint C. 20 kips W = 5 kips/ft E B hinge P5,47
Help with the shear and moment diagram
SHEAR AND MOMENT DIAGRAM: Draw diagram (20pts.) and label the parts of the load diagram and shear and moment 23. For the given frame draw the shear and moment diagram of each member 22 kN/m 5 m Hinge 5 m 110kN 1475 FOR MEMBER AC FOR MEMBER CE 27 FOR MEMBER EG /47s llD Page d of 4
A frame structure is shown in Figure 1, in which points A, B and C are all pins (a) Draw the shear and moment diagrams for the frame, and determine the shear and moment at points D and E [20 marks] (b) Calculate the horizontal deflection of the frame at joint F use virtual-work. EI for all members are the same and is a constant. [20 marks] 0.25 m 0.75 m C D 0.75 m 0.75 m 00 N/m 60...
Draw the shear and bending moment diagrams for members AC and CB. Assume Joint A as a Pin, Joint C as a Fixed Connection, and Joint B as a Roller. 7 k/ft 15 k- B 4 ft 10 k 4 ft 10 ft
Draw the shear, moment, and axial force diagram for each member of the frame
Complete the shear moment diagram
The industrial robot is held in the stationary position shown. Draw the shear and moment diagrams of the arm ABC if it is pin connected at A and connected to a hydraulic cylinder (two-force member) BD. Assume the arm and grip have a uniform weight of 1.5 lb/in. and support the load of 40 lb at C. 4 in. -10 in. А BI -50 in. tc 120° D
shesr and moment diagram
SHEAR AND MOMENT DIAGRAMS Determine the shear and moment diagrams for the beam shown below. There is a pin at A and a rocker at B. a. There are 3 sections. Draw the FBD for each section. Also, give the shear and moment equation for each section. у 125 lb/ft 1000 lb A 10 ft 6 ft 10 ft B
