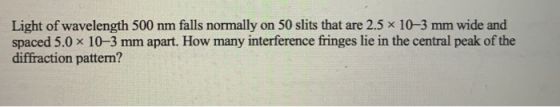

step by step process with explination and has to be clear Light of wavelength 500 nm...

Question

Question

step by step process with explination and has to be clear

science physics

Answer 1

Answer #1

3

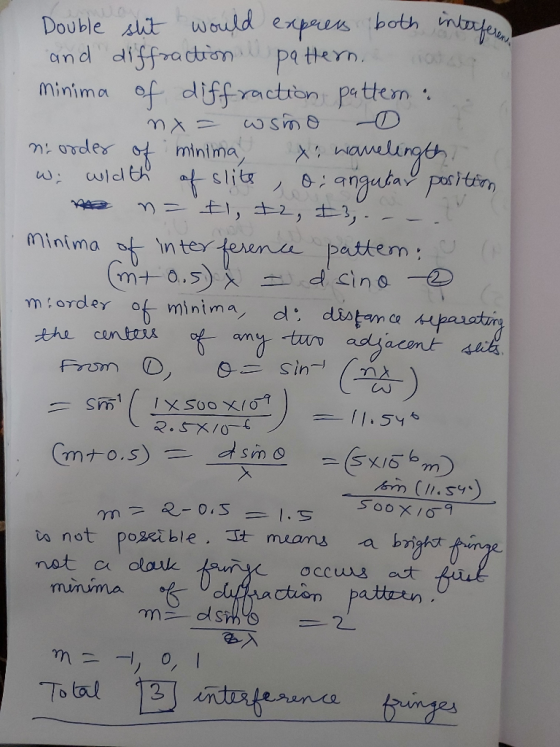

$Double shit would express both interferon and diffraction pattern. chats minima of diffraction pattern ... nx = wsmo - no ord$

Answer 2

Similar Homework Help Questions

A red laser from the physics lab is marked as producing 632.8-nm light. When light from...

A red laser from the physics lab is marked as producing 632.8-nm light. When light from this laser falls on two closely spaced slits, an interference pattern formed on a wall several meters away has bright red fringes spaced 6.00 mm apart near the center of the pattern. When the laser is replaced by a small laser pointer, the fringes are 6.18 mm apart. What is the wavelength of light produced by the pointer?
Light of wavelength 500 nm falls on two slits and produces an interference pattern in which...

Light of wavelength 500 nm falls on two slits and produces an interference pattern in which the third order bright fringe is 45 mm from the central fringe on the screen 2.0 m away. What is the distace between two slits? Give answer in mm.
Light of wavelength 425.1 nm falls on two slits spaced 0.31 mm apart. What is the...

Light of wavelength 425.1 nm falls on two slits spaced 0.31 mm apart. What is the required distance from the slits to the screen if the spacing between the first and second dark fringes is to be 3.0 mm?

Light of wavelength 484.6 nm falls on two slits spaced 0.31 mm apart. What is the...

Light of wavelength 484.6 nm falls on two slits spaced 0.31 mm apart. What is the required distance from the slits to the screen if the spacing between the first and second dark fringes is to be 3.1 mm?
Light with a wavelength of 520 nm passes through 0.25 mm slits that are 1.0 mm...

Light with a wavelength of 520 nm passes through 0.25 mm slits that are 1.0 mm apart. An interference pattern is seen on a screen that is 2.5 m away. How far from the center is the first dark fringe due to the slit width? How far from the center are the bright fringes that fall within this distance?
A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is...

A double slit aperture is illuminated by light of wavelength 530nm and the interference pattern is observed on a screen 5.00m away. The slits are 2.125fim width and are separated by 0.1mm. How far apart are the first and second bright fringes? How far apart are the first and second dark fringes? Determine the slit to screen distance required such that the width of the central peak of the diffraction pattern is 1 m. Why is the calculation from part...

A beam of light of wavelength 600 nm from a distant source falls on a single...

A beam of light of wavelength 600 nm from a distant source falls on a single slit 1.00 mm wide and resulting diffraction pattern is observed on a screen 2 m away. The distance between the first dark fringes on either side of the central bright fringe is 1.2 cm 1.2 mm 6x10-4 m 2.4 mm
Light from a coherent monochromatic light source with a wavelength of 5.00 ✕ 102 nm is...

Light from a coherent monochromatic light source with a wavelength of 5.00 ✕ 102 nm is incident on (and perpendicular to) a pair of slits separated by 0.320 mm. An interference pattern is formed on a screen 1.90 m from the slits. Find the distance (in mm) between the first and second dark fringes of the interference pattern. it is 5.00x10^2 nm
Coherent light of wavelength 548 nm passes through two slits. In the resulting interference pattern on...

Coherent light of wavelength 548 nm passes through two slits. In the resulting interference pattern on a screen 4.6 m away, adjacent bright fringes are 5.60 mm apart. What is the separation between the 2nd and the 3rd order maxima for light with a wavelength of 650 nm?

Please use pdf scanner for answer. Please Be neat and clear. Only answer if sure of answer. Thanks! (: Violet light (wavelength 380 nm) falls on a narrow slit that produces a diffraction pattern o...

Please use pdf scanner for answer. Please Be neat and clear. Only answer if sure of answer. Thanks! (: Violet light (wavelength 380 nm) falls on a narrow slit that produces a diffraction pattern on a screen 5.0 m away. The width of the central maximum is 3.7 mm. a.) How does this width change if the violet light is replaced with a red light (wavelength 690 nm)? b.) What is the width of the slit? c.) What is the...
